Maintenance
ReplacingtheInternalModem
UsethefollowingproceduretoreplacetheinternalmodemonthePWA.

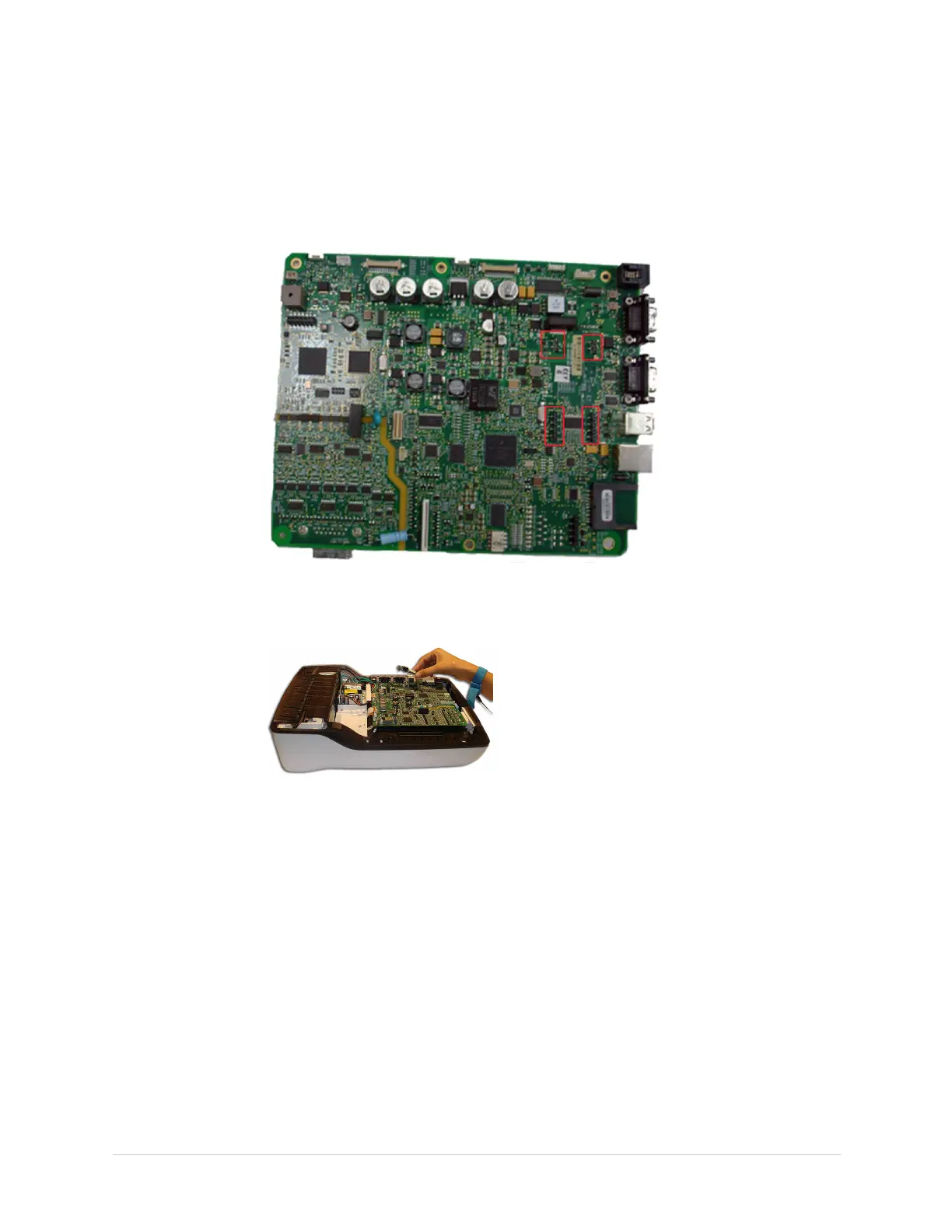

1.LocatetheinternalmodemconnectorsonthePWA,asidentiedinthefollowing
photograph.
2.Graspingtheedgesoftheinternalmodembetweenyourthumbandngers,
gentlyseattheinternalmodemintotheconnectorsonthePWA,asshown
inthefollowingphotograph.
3.Reattachthetopcoverassembly.
See“ReattachingtheTopCoverAssemblytotheDevice”onpage81for
instructions.
4.Reinsertthebattery.
Seestep6throughstep8in“ReplacingtheBattery”onpage74forinstructions.
5.ContinuewiththeappropriatefunctionalcheckoutprocedureforthisFRU.
See“FunctionalCheckout”onpage129formoreinformation.
PWA
TheprocesstoreplacethePWAconsistsofthefollowingprocedures:
1.ProcessingECGsininternalstorage
2.Savingsystemcongurationsettings
3.Printingthesystemsetupreport
120
MAC™2000ECGAnalysisSystem
2053535-003C
