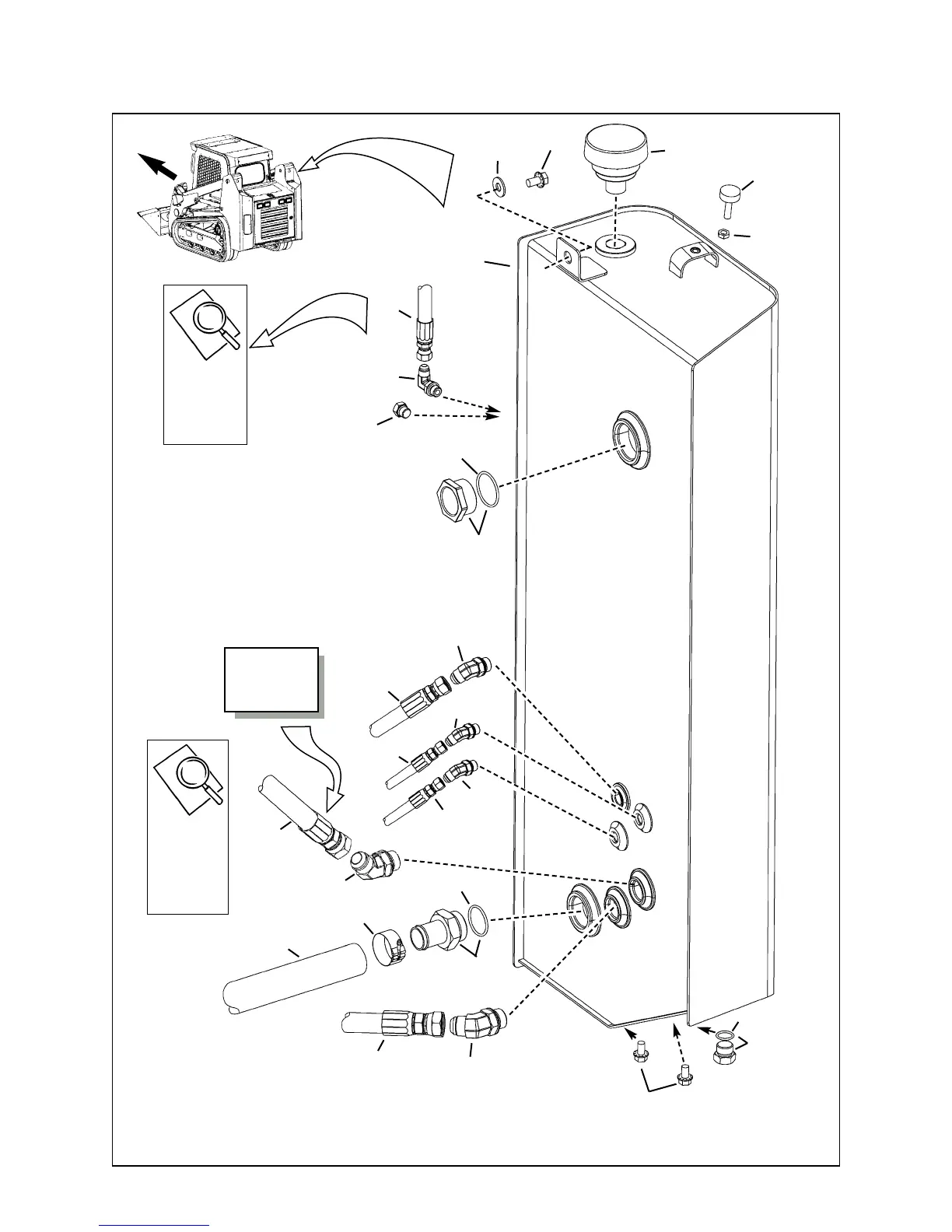

RT250 - HYDRAULIC SYSTEM
HYDRAULIC T
ANK
(Late-S
tyle T
ank - identified by the integrated vent fill cap item #4)
1
29
6
5
4
2
3
27
25
26
28
3
9
8
12
14
15
13
16
17
19
18
20
22
22
21
23
24
Refer to
page 98
(items 5&6)
for more
information
High-Flow
Hydraulics
(Option)
Refer to the
hydraulic
cooler on
page 72 for
more hose
information
101
103
