Printed in U.S.A. 135 913364/BP0314
RT250 - HYDRAULIC COMPONENTS

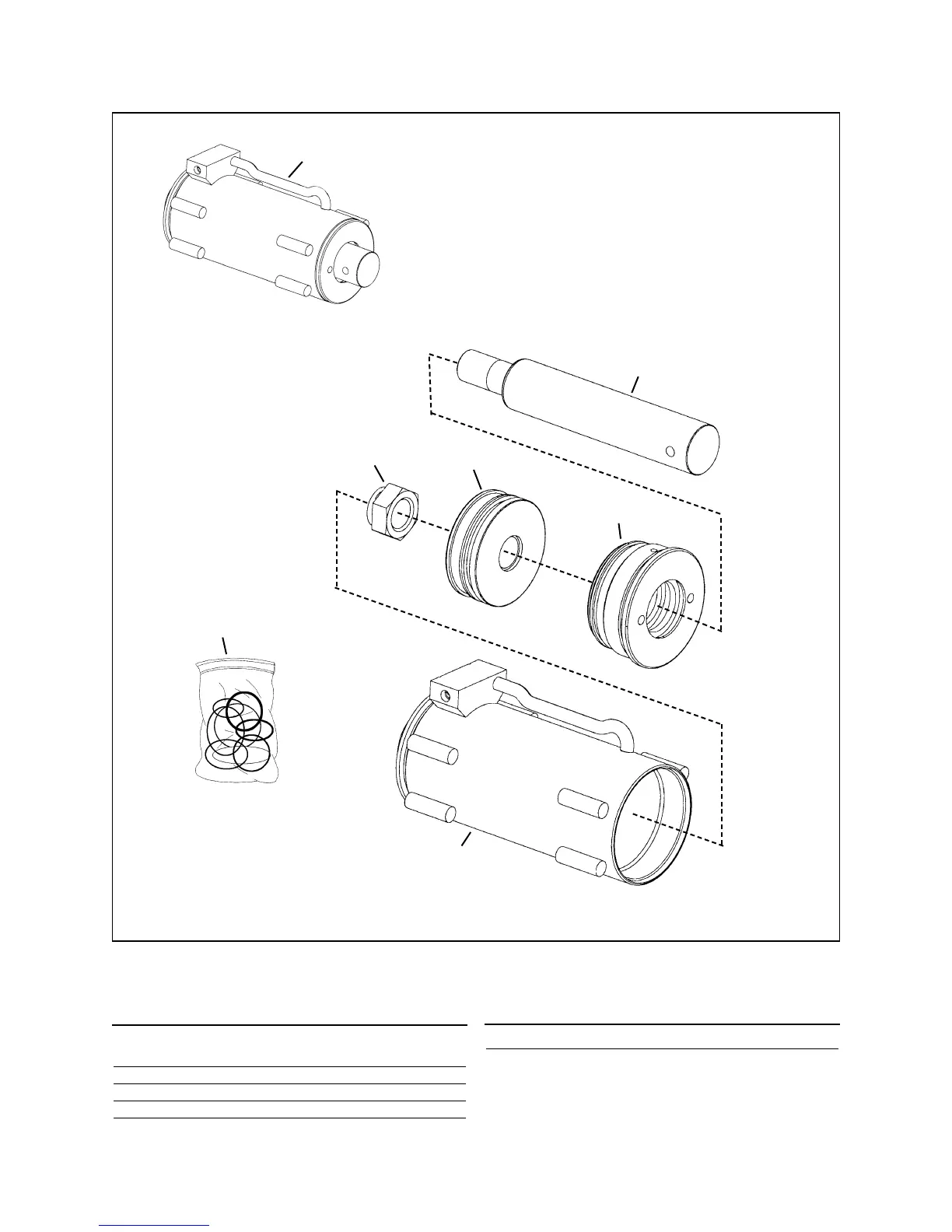

TRACK TENSION CYLINDER
5
7
3
4
6
2
1
01 271414 CYLINDER, TENSION AR
(includes all items shown)
02 50280049 CYLINDER ROD 1
03 50280048 HEAD GLAND 1
04 50280047 PISTON 1
05 L99405 NUT, 1.250-12 UNF COLLAR LOCK 1
06 50280050 SEAL KIT (not shown) 1
07 50280046 TUBE WELDMENT 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
NOTE: The quantities shown are for one cylinder; the
machine uses two cylinders.
