913364/BP0314 20 Printed in U.S.A.

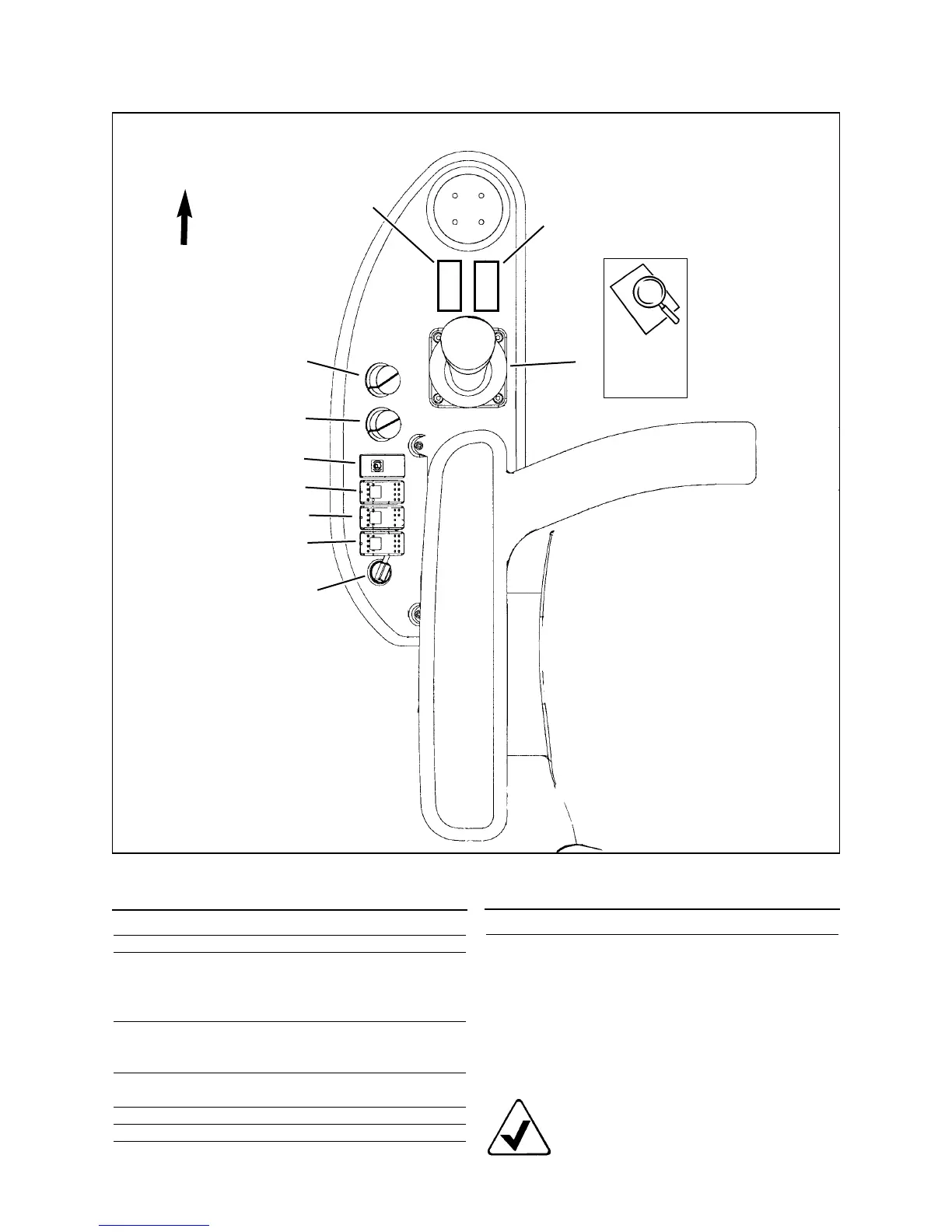

RT250 - CAB
CONSOLE CONTROLS - LEFT SIDE
9
10
8
2
3
4
5
1
6
7
FRONT
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
01 242636 PANEL PLUG 1
02 242636 PANEL PLUG 1
03 CONTROLLER (left) 1
275519 Standard Controller 1
50301592 14-Pin Option Controller 1
50300314 KIT, SWITCH (not shown)
04 136305 SWITCH, HEATER (fan speed) * 1
273968 KNOB 1
50300066 NUT, HEATER SWITCH 2
05 189033 A/C CNTRL MODULE (temperature) * 1
273968 KNOB 1
06 271542 SWITCH, PARK BRAKE 1
07 271702 SWITCH, SELF LEVEL (option) 1
08 271743 SWITCH, HIGH FLOW (option) 1
09 50300585 SWITCH, PWR ALL-TACH (option) 1
10 137602 12 VOLT AUXILIARY POWER 1
137603 COVER, RUBBER 1
* Option — these switches are used when the machine is
equipped with a heater or the A/C option. If the machine is
not equipped with a heater or A/C, use plastic plug PN
271678 in place of the heater switch and the A/C controller.
NOTE: The illustration and parts list identifies
both standard and optional features for the
machine—your machine might not have some
of the items shown on this page.
14-Pin Option
controller is
on page 90.
