Gehl RT250 User Manual

913364/BP0314 24 Printed in U.S.A.

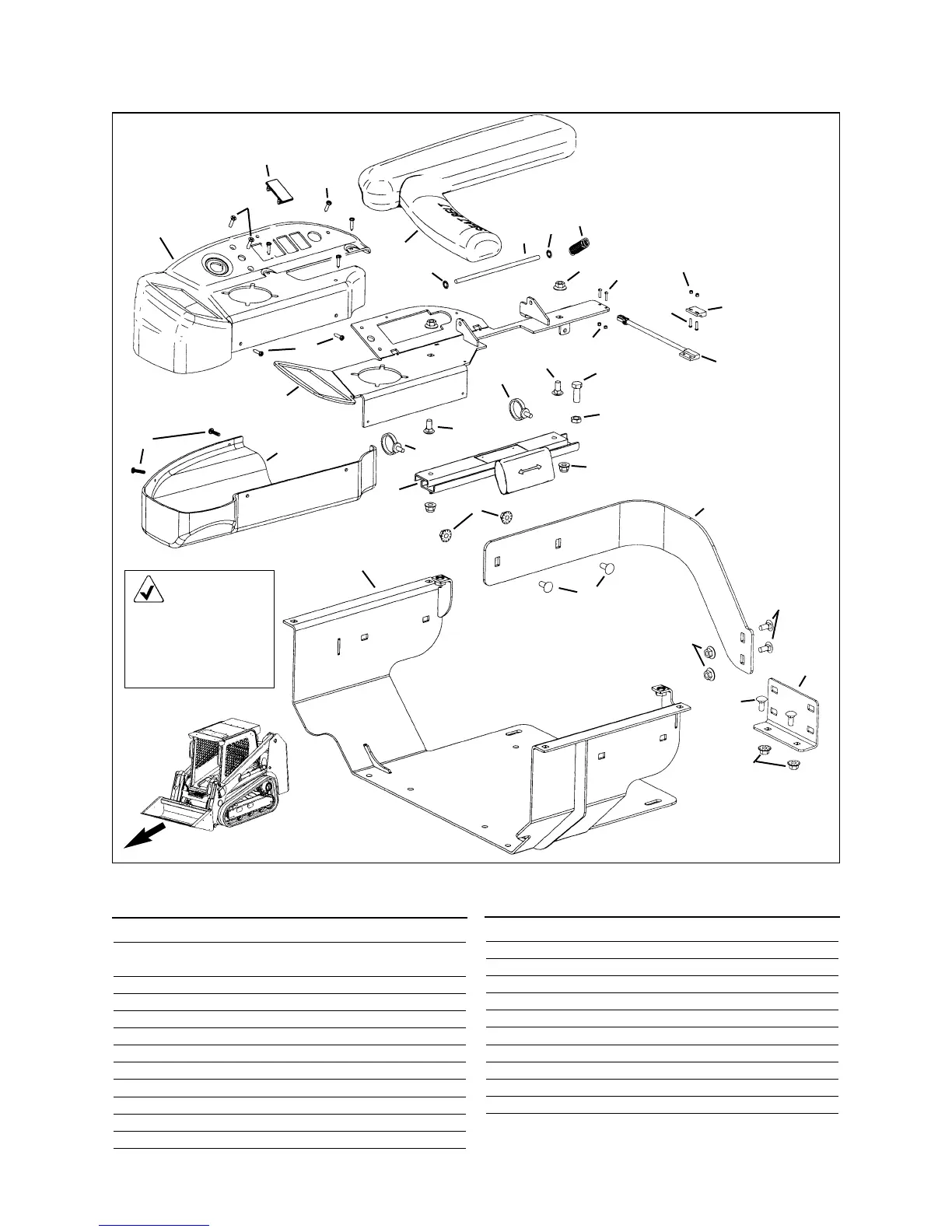

RT250 - CAB
CONSOLE - RIGHT SIDE
(Early Style - See note below)
01 274335 COVER, JOYSTICK 1
02 651820 SCREW FCHM CR#10-32 x 3/4" 2
(secures electronic hand throttle)
03 242636 PANEL PLUG AR
04 273071 SCREW, TPH TF CR #1014 x 3/4” AR
05 273214 ARM REST (right) * 1
06 272542 BAR, ARM REST 1
07 272543 KEEPER, 0.5” SHAFT 2
08 275982 SPRING, 0.50 x 2.00 EXT. 1
09 070648 LN LG FL SERR 5/16” CZ AR
10 651212 RMS SLT #5-40 x 1/2 “ CZY 4
11 651328 HLN INST #5-40 CZY 4
12 193157 MAGNET, SWITCH ACTUATOR 1
13 276026 SWITCH, PROXIMITY 1
14 273369 CABLE TIE 2
15 650687 CB 5/16” x 3/4” C5ZY AR
16 650490 CS 3/8" x 1" C5ZY 1
17 653038 HJN 3/8 C2ZY 1
18 070648 LN LG FL SERR 5/16” CZ 2
19 275512 BRACKET 1
20 275980 BRACKET 1
22 275472 WELDMENT, CONTROL MOUNT 1
23 271859 SLIDE, ARM REST 1
24 274940 WELDMENT, RH JOYSTICK MOUNT 1
25 50300093 COVER 1
26 651783 SCREW/TPH TF CR#8-32x3/4 CZY 5
* Refer to page 27; item #25 for increased operator room.
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
1
6
26
3
2
11
12
9
7
8
10
13
5
20
15
19
23
14
16
15
17
18
26
9
22
9
15
9
15
24
25
4
7
14
15
10
11
NOTE: Early-style
seat pan (#22) and
related components
(15, 19, and 20) are different
than those on the later units.
Refer to page 22 for the late-
style seat pan.
