RT250 - TRACKS

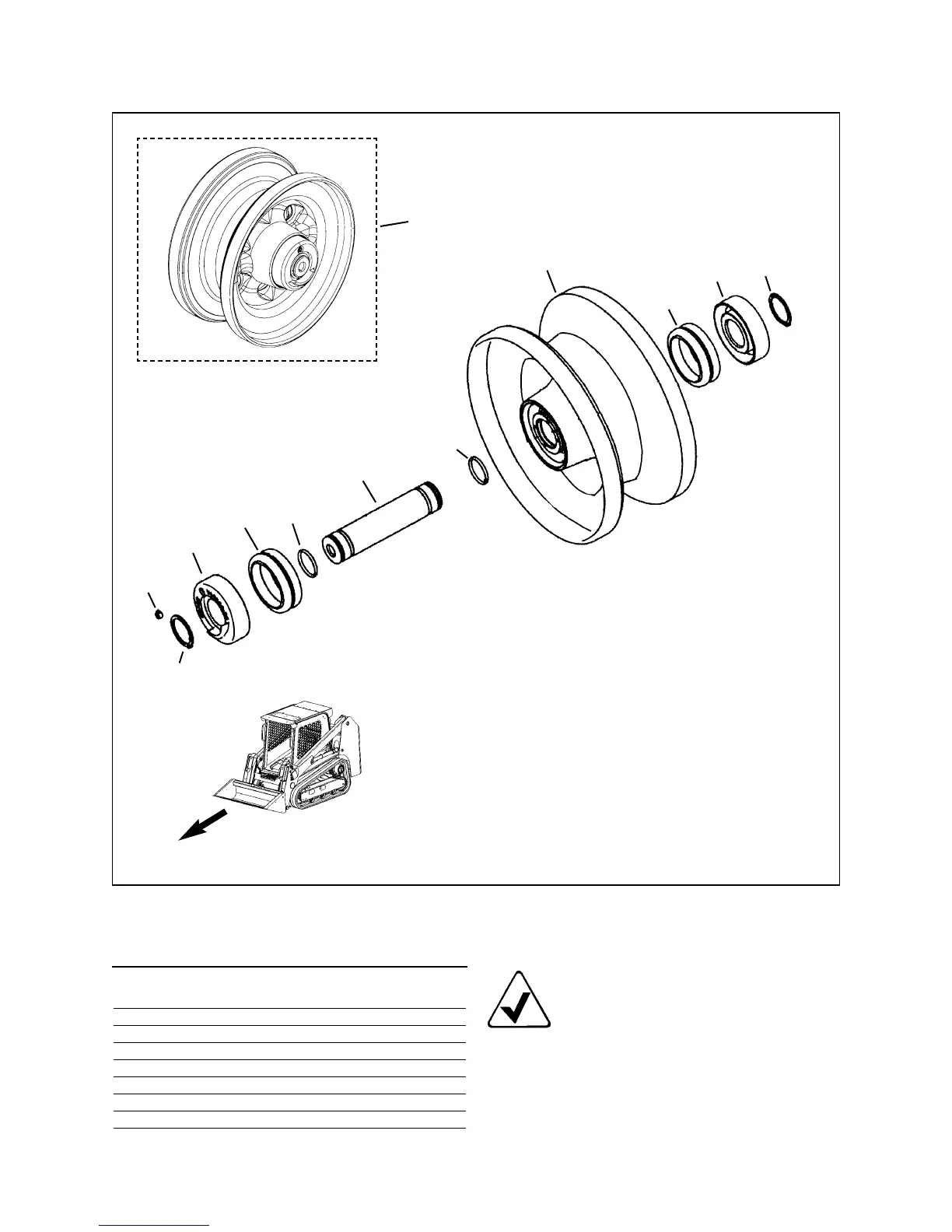

DUAL-FLANGE IDLER ASSEMBLY
01 275574 IDLER, DUAL-FLANGE ASSEMBLY 1
(includes all items shown)
02 50280163 SNAP RING 2
03 50280164 BRACKET 1
04 50280155 SEAL GROUP 2
05 50280161 IDLER SHELL W/BUSHING 1
06 50280166 O-RING 2
07 50280162 SHAFT 1
08 50280165 BRACKET W/HOLE 1
09 50280160 PLUG 1
NOTE: Quantities shown are for one dual-
flange idler assembly. When ordering parts,
be aware that the machine uses two dual-
flange idler assemblies, one for each side.
Item
No. Part No. Description Qty.
1
3
9
2
8
4
6
7
6
5
4
2
