Printed in U.S.A. 25 913364/BP0314

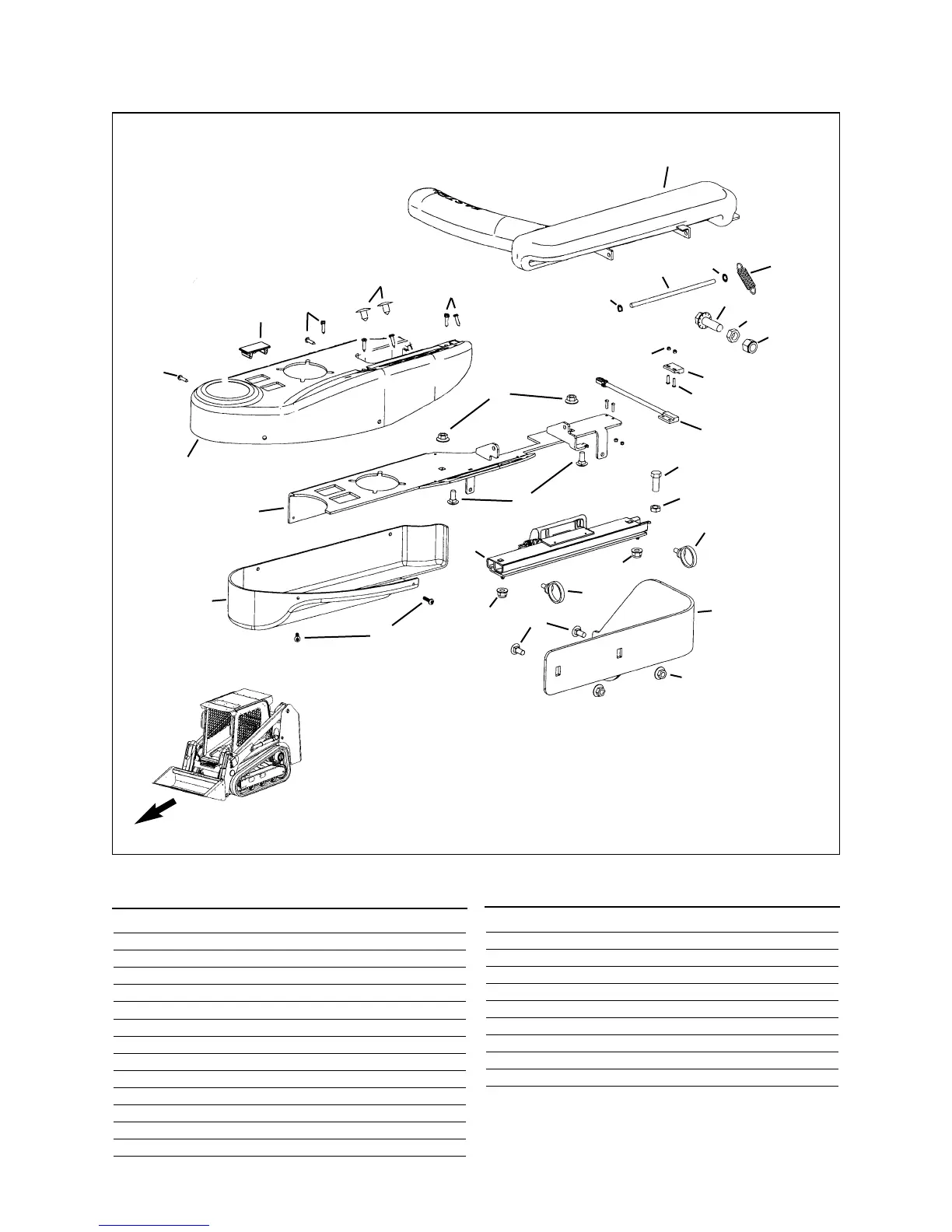

RT250 - CAB
CONSOLE - LEFT SIDE
(Early Style - See Note on Facing Page)
01 271678 PLUG AR
02 273545 ARM REST (left) * 1
03 275982 SPRING, 0.50 x 2.00 EXT. 1
04 272543 KEEPER, 0.5” SHAFT 2
05 272542 BAR, ARM REST 1
06 081378 CS FL LOCK 1/2" x 1-1/2" C5ZY 2
07 653044 HJN 1/2 C2ZY 2
08 068034 HLN INST 1/2" CZY 2
09 651328 HLN INST #5-40 CZY 4
10 193157 MAGNET, SWITCH ACTUATOR 1
11 651212 RMS SLT #5-40 x 1/2 “ CZY 4
12 276026 SWITCH, PROXIMITY 1
13 070648 LN LG FL SERR 5/16” CZ 4
14 650687 CB 5/16" x 3/4" C5ZY 4
15 650490 CS 3/8" x 1" C5ZY 1
16 653038 HJN 3/8" C2ZY 1
17 263369 CABLE TIE 2
18 275480 BRACKET 1
19 070648 LN LG FL SERR 5/16” CZ 2
20 271858 SLIDE, ARM REST 1
21 273071 SCREW, TPH TF CR #10-14 x 3/4” AR
22 275979 COVER 1
23 275003 WELDMENT, LH JOYSTICK MOUNT 1
24 273037 COVER, JOYSTICK 1
25 242636 PANEL PLUG AR
26 651783 SCREW/TPH TF CR#8-32x3/4 CZY 5
* Refer to page 27; item #25 for increased operator room.
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
1
2
4
3
8
9
10
11
7
6
12
13
26
25
15
14
16
17
18
19
23
5
13
14
24
20
22
21
4
26
19
17
26
To Next Page
