913364/BP0314
108
Printed in U.S.A.
RT250 - HYDRAULIC SYSTEM

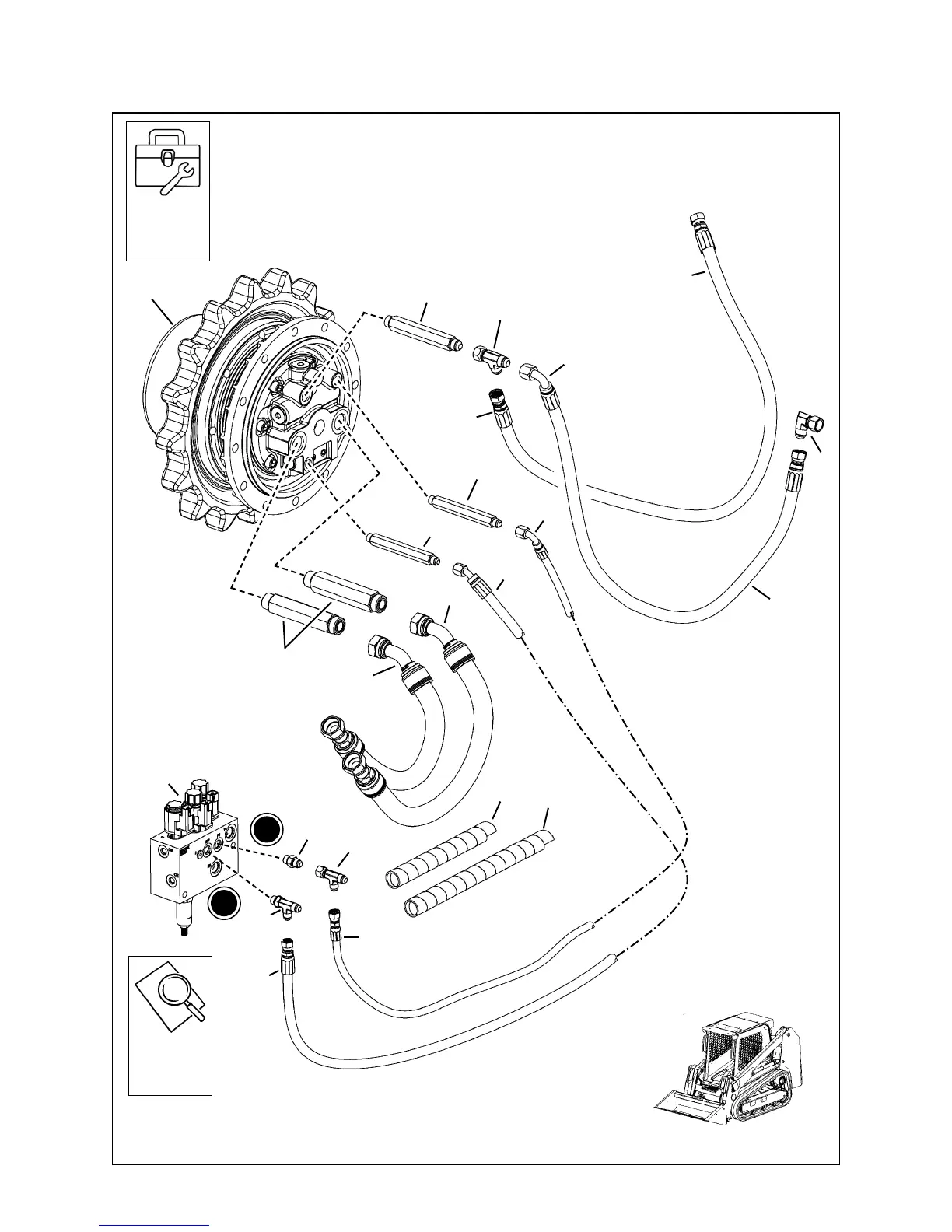

TRACK DRIVE CIRCUIT - RIGHT SIDE
2
1
3
6
4
5
6
7
7
9
8
10
11
12
18
16
15
13
14
8
9
17
4
HYDROST
A
TIC DRIVE PUMP
Right-Side (Port - A)
HYDROST
A
TIC DRIVE PUMP
Right-Side (Port - B)
Left-Side
Drive Motor
Drive motor
parts are on
page 82.
Hydraulic T
ank
(Return)
2SP
PB
Pilot Pressure
Manifold is
also shown
on page 1
12.
109
111
Table of Contents
Introduction
2
Serial Number
2
Table of Contents
3
Filters / Belts / Analysis Kits
6
Cab
8
Standard Cab
8
Cab Door - Swing-Out (Option)
10
Cab Door - Latches (Optional Swing-Out Door)
12
Side Windows (Option)
13
Cab Tilt and Rear Window
14
Window Washer (Option)
16
Foot Pod / Accelerator Pedal
17
Interior Covers
18
Headliner - Heat-A/C Ducts (Option)
20
Console Controls - Left Side
22
Console Controls - Right Side
23
Console - Right Side - (Late Style)
24
Console - Left Side - (Late Style)
25
Console - Right Side - (Early Style)
26
Console - Left Side - (Early Style)
27
Seat
28
Mirror (Option)
30
Radio (Option)
31
Heater Hose Circuit (Option)
32
Air Conditioning Circuit (Option)
34
Heater / Air Conditioning Blower (Option)
36
Rear Cab - HVAC Cover
38
Chassis
40
Frame - Front / under
40
Center Frame
41
Counter Weights
42
Rear Door
44
Rear Access Doors
46
Rear Hood - (no Air Conditioning)
48
Rear Hood - (no Air Conditioning)
49
Rear Hood - Air Conditioning Condenser Assembly
50
Electrical
52
Chassis Wire Harness / Components
52
Main Fuse Box / Fuses / Relays
54
Battery Circuit / Engine Wire Harness
56
Operator Wire Harness
58
Work Lights Cab / ROPS Wire Harness
59
Engine
60
External Components
60
External Components - Mounts
62
External Components - Flywheel Housing
63
Fuel Circuit
64
Fuel Tank
66
Air Intake
68
Exhaust
70
Air Conditioning Compressor (Option)
72
Engine / Hydraulics
74
Radiator / Hydraulic Cooler (Late Style)
74
Radiator / Hydraulic Cooler (Early Style)
76
Tracks
78
Track Assembly
78
Dual-Flange Idler Assembly
80
Dual-Flange Bogie Wheel Assembly
81
Front Idler Assembly
82
Track Drive Motor and Sprocket
83
Track Drive Motor Components
84
Loader Arm
86
Bolt-On Components
86
Attachment Bracket - Manual (Standard)
88
Bucket
89
Attachment Bracket - Power All-Tach ® (Option)
90
14-Pin Connector (Option)
92
Tilt Circuit Hydraulics
94
Lift Circuit Hydraulics
96
Auxiliary Hydraulics Circuit - (Standard)
98
High-Flow Hydraulics Circuit - (Option)
100
Hydraulic System
102
Hydraulic Tank (Late Style)
102
Hydraulic Tank (Early Style)
104
Hydraulic Filter Assembly
106
Hydrostatic Drive Pump Circuit
108
Track Drive Circuit - Right Side
110
Track Drive Circuit - Left Side
112
Pilot Pressure Manifold Circuit
114
Hydraulic Pump Circuit - (Standard Hydraulics)
116
Hydraulic Pump Circuit (High-Flow Hydraulics - Option)
118
Auxiliary / High-Flow Hydraulics Circuit
120
Self-Level Circuit
122
Float/Lift Circuit - (Standard) / Hydraglide™ Ride Control - (Option)
124
Hydraulic Components
126
Hydrostatic Drive Pump
126
Hydraulic Pump - Standard Hydraulics
128
Hydraulic Pump - High-Flow Hydraulics
129
Hydraulic Main Valve - (Standard Hydraulics)
130
Hydraulic Main Valve - (High-Flow Hydraulics)
131
Self-Level Valve - (Standard)
132
Self-Level Valve - (Switchable)
133
Float Manifold - (Standard)
134
Hydraglide™ Ride Control Manifold (Option)
135
Pilot Pressure Manifold
136
Track Tension Cylinder
137
Tilt Cylinder
138
Lift Cylinder
139
Decals
140
Paint / Decal Application / General Information
140
Front
141
Right Side (Late Style)
142
Left Side (Late Style)
143
Right Side (Early Style)
144
Left Side (Early Style)
145
Rear
146
Engine Compartment
147
Numerical Index
148
Subject Index
156
Reference
162
O-Ring Tables
162
Adapter (Fittings) Torque Guide
163
Metric Bolt Torque Guide
164
SAE and Metric Bolt Torque Guide
165
