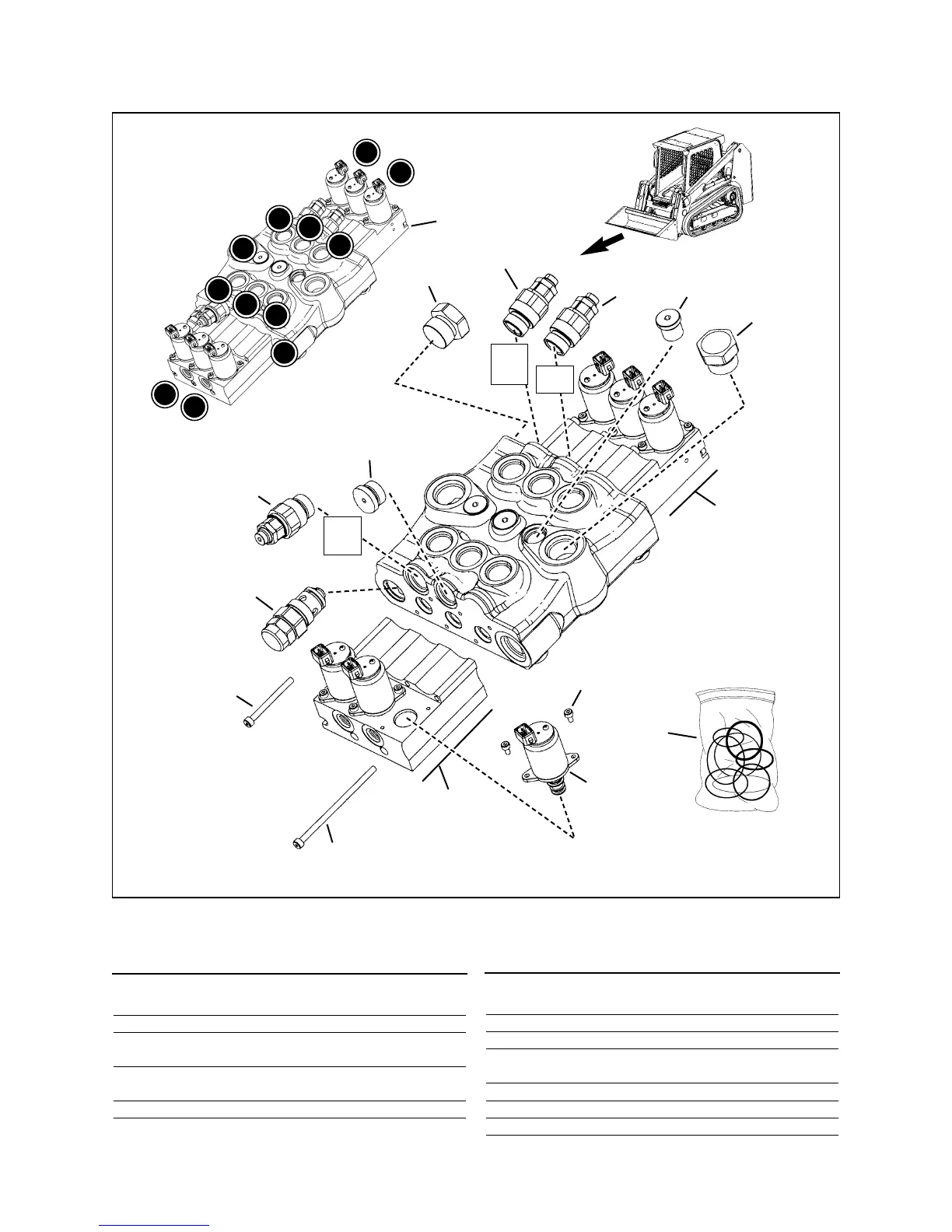

RT250 - HYDRAULIC COMPONENTS
HYDRAULIC MAIN VALVE - (STANDARD HYDRAULICS)
01 50302471 VALVE, 3-SPOOL EH CONTROL 1
(includes all items shown)
02 103060 PLUG KIT, 1-1/16-12 UNF 2
03 240277 COMBINATION VALVE (120 BAR) 1
(port relief)
04 240278 COMBINATION VALVE (240-A BAR) 2
(port relief)
05 240272 CHECK VALVE KIT 3
06 50280183 EH CONTROL 3-SECTION 1
(includes (3) item #9; (6) item #8)
07 50280184 SEAL KIT (complete valve) 1
(not shown)
08 NSS SOCKET HEAD SCREW, METRIC 12
09 50280185 PROPORTIONAL VALVE (12 VDC) 6
10 50280182 EH CONTROL 3-SECTION 1
(includes (3) item #9; (6) item #8)
11 NSS SOCKET HEAD SCREW, METRIC 6
12 NSS SOCKET HEAD SCREW, METRIC 6
13 50280176 MAIN RELIEF VALVE (210 BAR) 1
14 240274 PLUG KIT, SECONDARY RELIEF 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
P
T
T
T
P
B1
B2
B3
P
A1
A2
A3
LIFT (B1 - A1)
TILT (B2 - A2)
AUX. (B3 - A3)
(STD. AUX.)
7
50302471
1
2
3
4
5
2
4
13
10
12
11
8
9
6
13
Loader
Arm
(Up)
Loader
Arm
(Down)
Bucket
(Back)
