Pre-Installation Information and Recommendations
032-0265-EN Rev 1 3-9

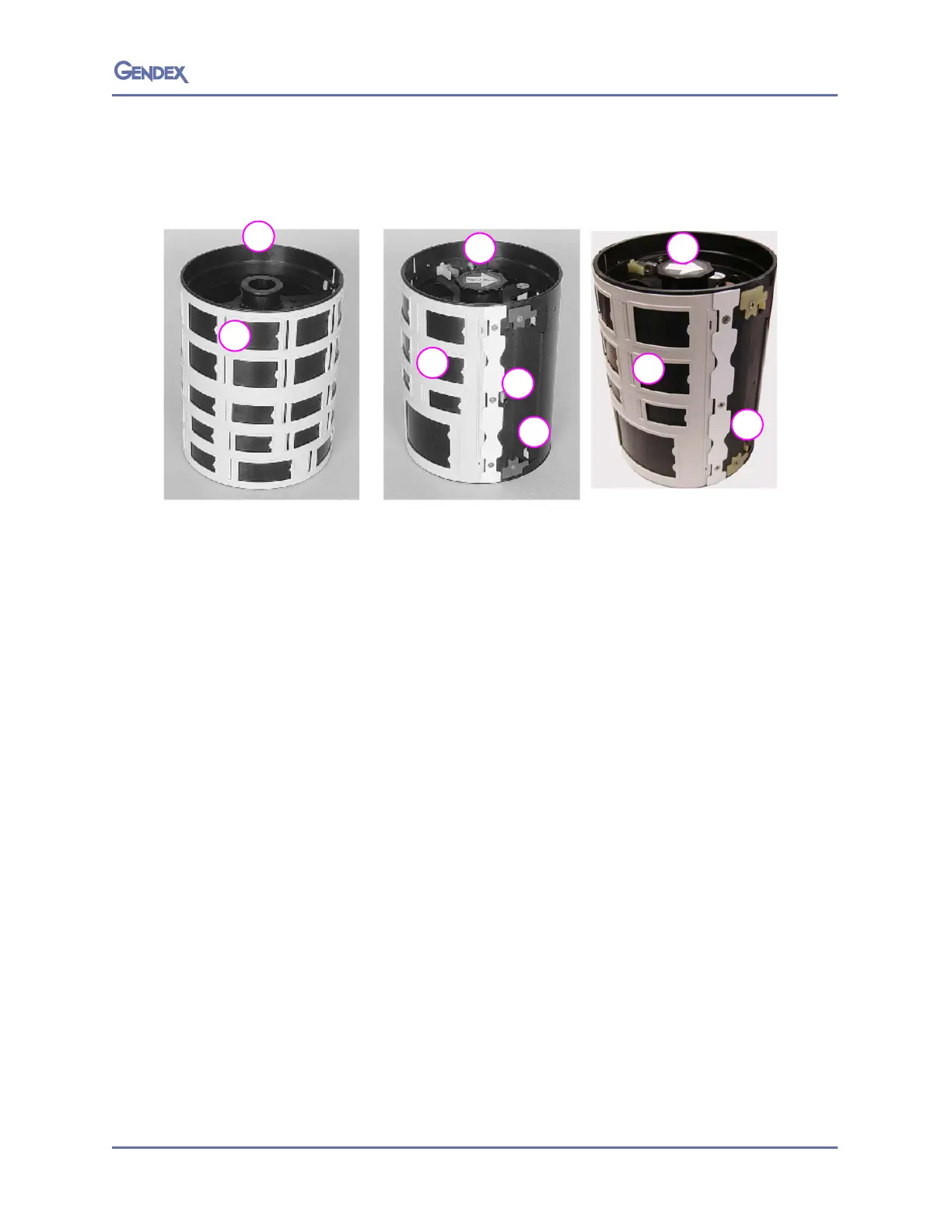

Carousels
1. Top of the carousel. For the EO/CH carousels, the knob will be positioned
based upon whether or not a Pan or Ceph is being scanned. If a Pan or Ceph
is loaded, turn the knob towards the mark indicating a Pan or Ceph. If no
Pan/Ceph plate is loaded, rotate the knob to the “no Pan or Ceph” position.
2. I/O imaging plate holders. The intraoral carousel can hold up to 39 I/O
imaging plates at one time: 20 size 2, 9 size 1, 8 size 0, 2 size 3.
3. Panoramic imaging plate retaining device. The panoramic carousel can hold
either the 5x12 in or the 15x30 cm imaging plate.
4. Cephalometric imaging plate retaining device can hold either 8x10 in or
18x24 cm.
5. I/O imaging plate holders on the back of the Extraoral (EO) and Ceph (CH)
carousel. The carousel can hold up to four size 2, two size 0 and one size 4
imaging plates.
Intraoral (QFMX)
Extraoral QEO/Ceph (QCH)
2
1
4
1
5
3
1
5
4
