DenOptix QST
032-0265-EN Rev 14-6
Panoramic/Cephalometric Imaging

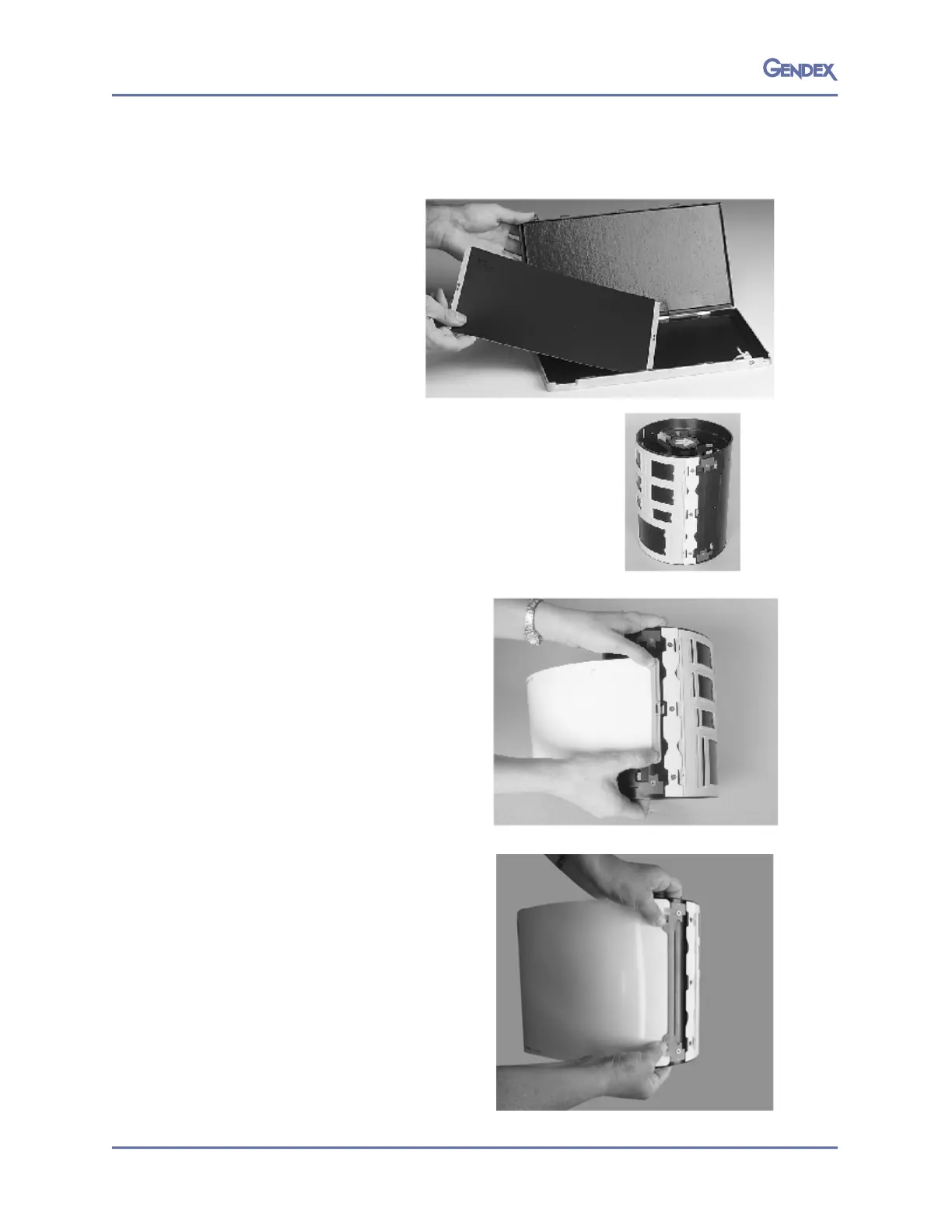

9. Place the erased
panoramic or cephalo-
metric imaging plate
into the casset
te with
the white side pointed
toward the tubehead.
Insert the cassette into
the panoramic or
cephalometric unit and
expose in the usual
manner.
10.
With the EO/CH
carousel you can scan 4 #2 size imaging plates
, 2 #0
size and 1 #4 size imaging plate. Follow the steps
previously outlined for intraoral imaging but mount
the I/O imaging plates on the panoramic carousel.
When scanning a Pan or Ceph plate, rotate the knob
in the direction of Pan or Ceph. When no pan or ceph
is loaded, rotate the knob in the direction of “NO PAN
or CEPH”.
11.
In a semi-darkened room (see ”Site
Selection”), open the cassettes.
With the white surface pointed
away from the carousel, insert one
side of
the imaging plate under the
edge of the panoramic or cephalo-
metric imaging plate clip. Push
with
your thumbs until you hear a
clic
k.
NOTE: If the IP does not clic
k into
place, slide the IP to one side
then the other until it clicks
into place. Panoramic shown.
