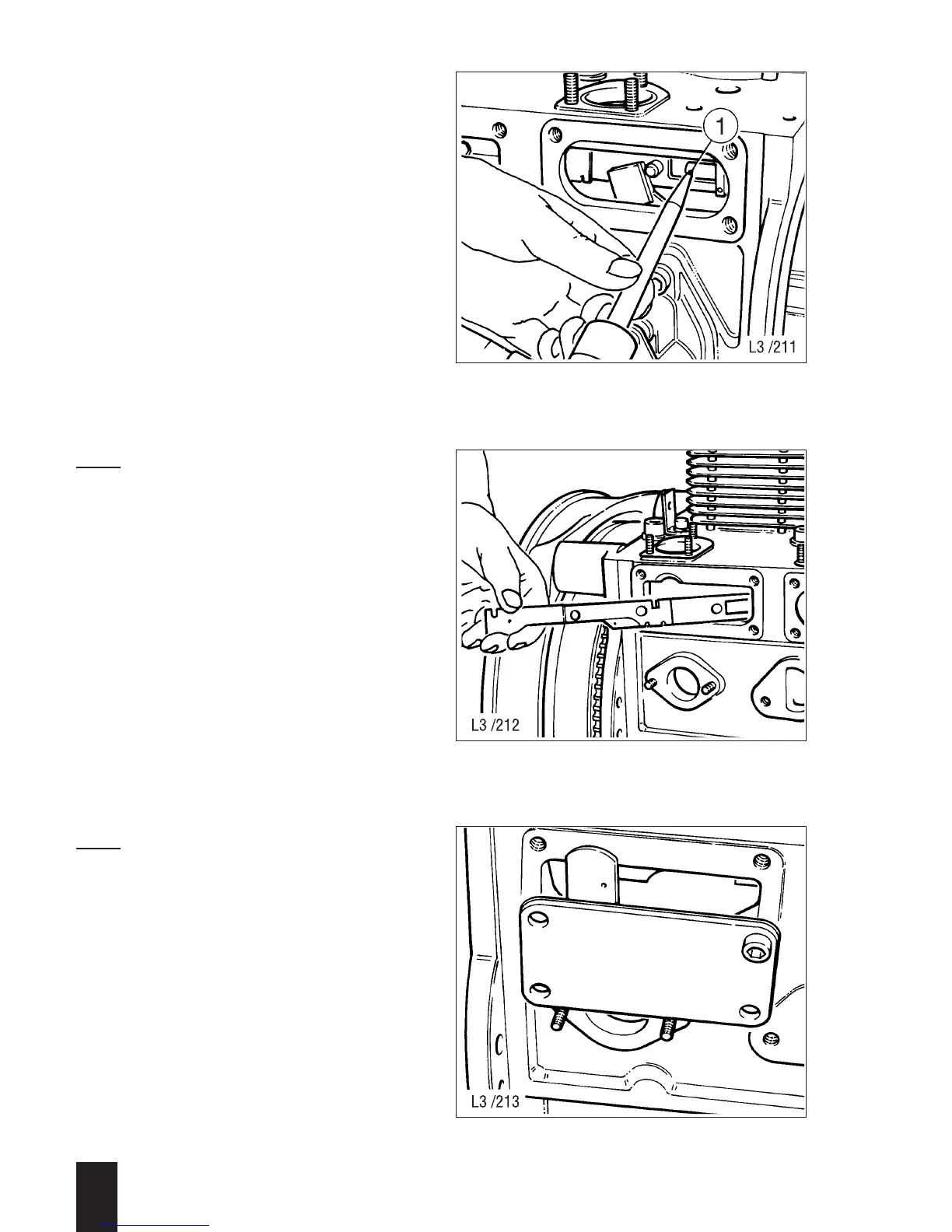

– Drive locking collet (121/1) halfway into
the pull rod with a suitable split pin
driver.
– Turn the pull rod through 180° and pull
out the locking collet with water pump
pliers.
– Take off the Poly-V-belt; see M 20.00.
(The pull rod will be pulled out.)
– Pull the governor rod out towards the
flywheel end; see Fig. 122.
Note:
To remove the governor rod on types „C“
and „K“, the rear enclosure panel must be
taken off.
Checking parts:
– Check the governor rod for score-marks
in the governor rod guide area.
Installing the governor rod:
– Install the governor rod by following the
instructions for its removal in the rever-
se order.
– After installing the governor rod, secure
its guide in position with the side cover:
see Fig. 123.
Note:
Clearance at the governor rod guide
between crankcase and cover must not
exceed 0.1 mm.
If clearance is greater than this, insert
packing seals between the crankcase and
the governor rod guide.
3
L / M . . 09.96
121
122
123
