Preparations:
– Remove the silencer (muffler);
see A 03.00.
– Remove the fan; see M 13.0

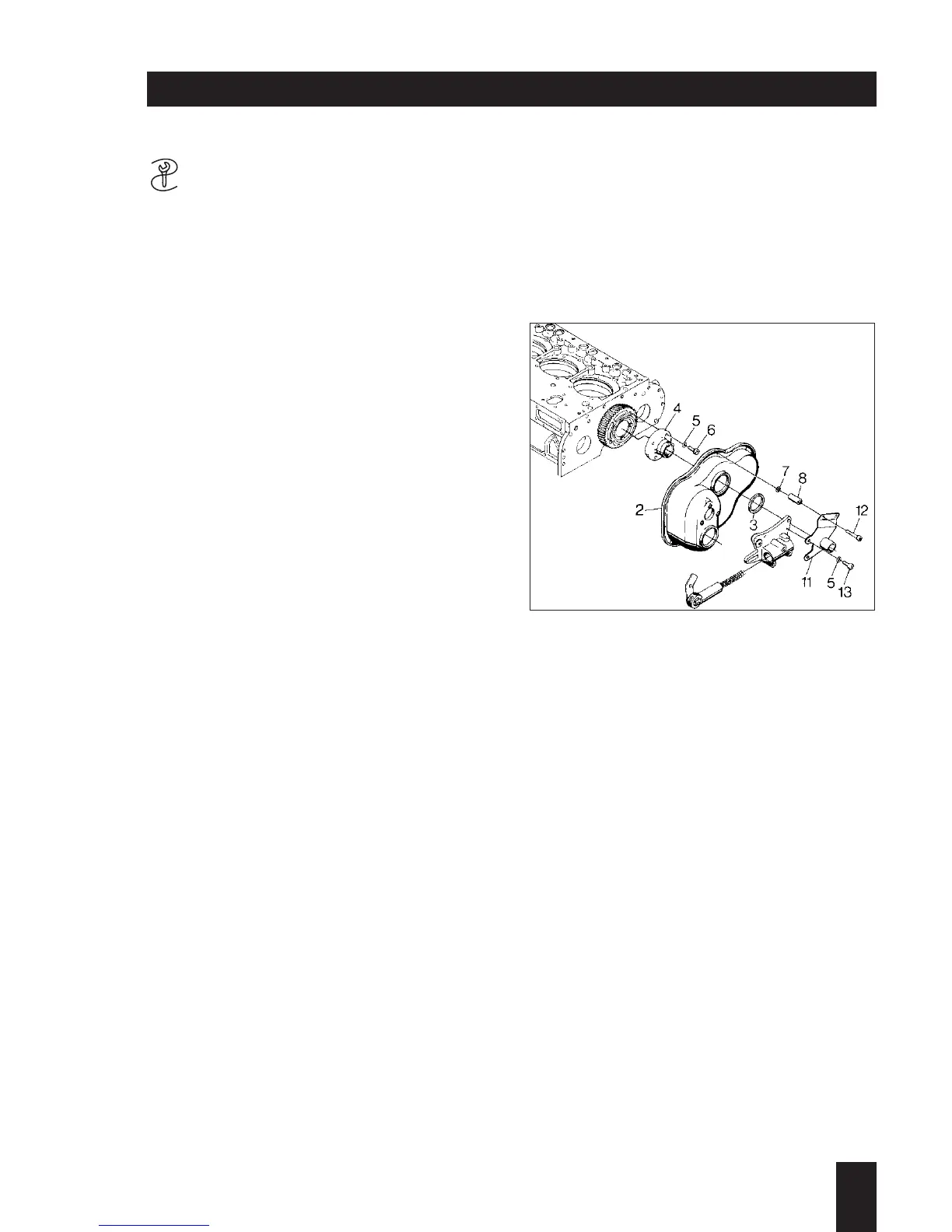

Detaching the recoil starter: (Fig. 190)
– Take out machine screws 13 incl. spring
washer 5 and screws 12 with bushings
8 and washers 7, and remove them with
bearing bracket 11.
– Detach the hydraulic shutdown device;
see M 20.00.
– Remove the timing case cover;
see M 11.00.
– Take out machine screws 6 with spring
washers 5.
– Take off starting sleeve 4.
Checking parts:
– Check the starting sleeve and bearing
bracket for damage.
– Check shaft sealing ring 3 for damage
and renew if necessary.
Assemble in reverse order as described
here.
2
L / M . . 09.96
190
A 04.00 Start mechanical
A 04.70 Recoil starter
L3 / 44
