-27 -
Preparations:
– see M 14.10.

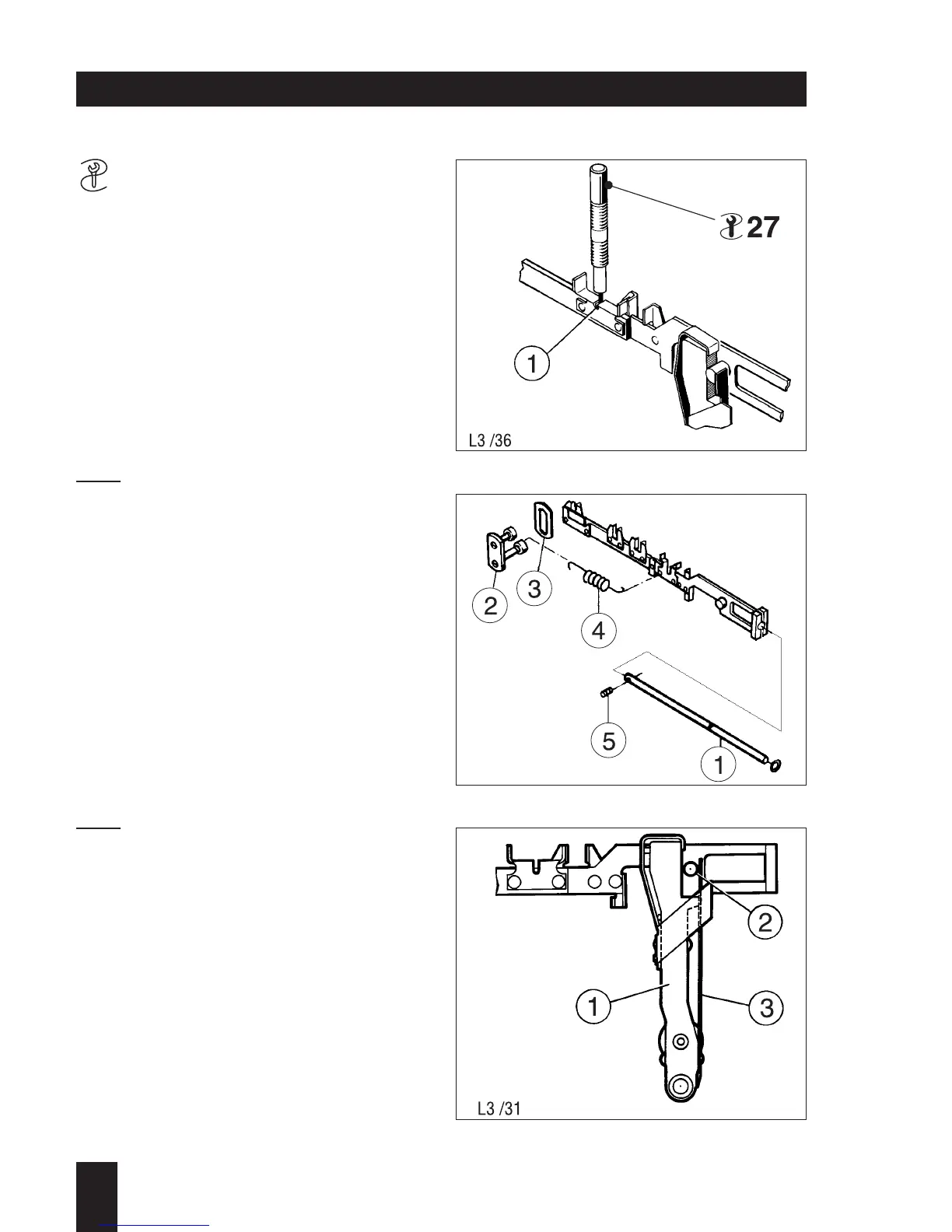

Removing the injection pump:
– Insert locating pin - 27 - into the hollow-
drilled stud bolt of pump 1 to lock the
governor rod in the „X“-Position (141/1).
– Remove the hex nuts and spring was-
hers securing the injection pump.
– Pull out the injection pump.
– Take off the paper gaskets and shim
washer.
Note:
The installed positions of the gaskets,
shim washers and injection pumps must
not be changed, or else the start of fuel
injection will be altered.
Removing and installing governor rod:
– Pull out locking collet (170/5).
– Remove the roller guide at the flywheel
end (paper washers 170/3 are used to
compensate for play); note the presence
of spring (170/4).
– Pull the governor rod out towards the
flywheel.
– Install in the reverse order of work.
Note:
When installing the governor rod, the stop
pin for the governor rod (126/2) must en-
gage between the governor lever (126/1)
and the leaf spring (126/3).
3
L / M . . 09.96
141
170
126
M 14.00 Fuel injection equipment
M 14.20 with injection pump PFR 1K 90
