Hatz 2-4L30 User Manual

–
Version A 04.10.2
Handle with kick-back damping:
The version for M .. engines is marked A
on its housing, and takes the place of the
standard crank handle if required.
Attention !
There is a risk of injury if the shaft of the
crank handle or its tubular handgrip are
worn.
Preparations: –
Demontage:

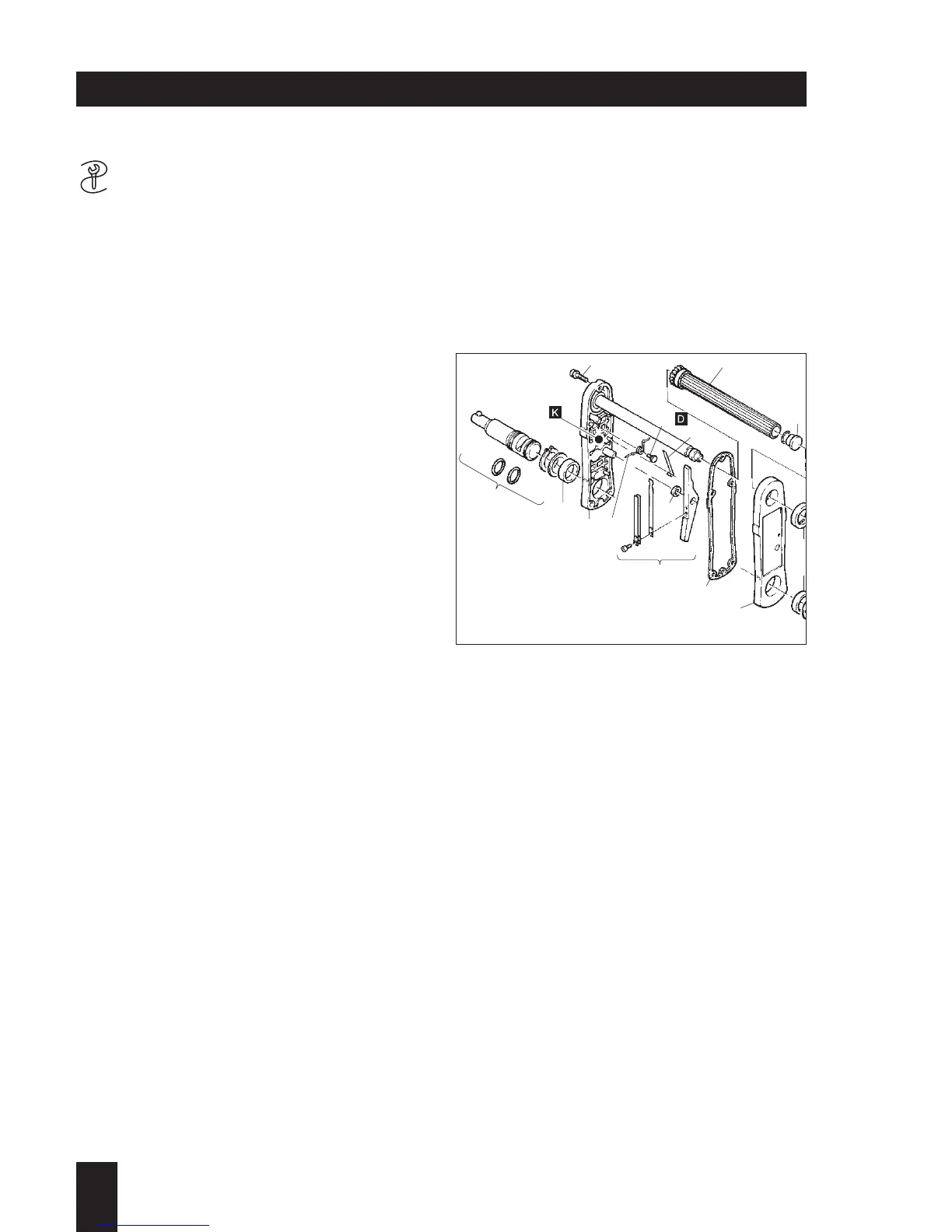

– Remove parts in the order 1 ... 3 as
illustrated.
– Remove machine screws 4.
– Take off cover 5 with great care, so that
leaf spring 11 cannot escape.
Risk of injury!
– Remove parts in the order 6 ... 10 as
illustrated.
– Hold torsion spring 13 in position in
order to maintain its tension.
– Pull leaf spring 11 away from its locking
pin and out of the hook eye on torsion
spring 13.
– Relieve torsion spring tension with a
screwdriver blade.
Caution - risk of injury!
– Take off parts 12 and 13.
Housing 14 remains in position with the
other parts.
2
L / M . . 09.96
192
A 04.00 Start mechanical
A 04.10 Crank handle
47
8
15
14 13
12
11
10
9
6
5
1
6
1
5
3
A
