Preparations:
– Remove the engine.
Note:
Normally it is only necessary to remove
the engine from the equipment in which it
is being used in order to dismantle the
enclosure if the air guide housing or rear
panel have to be taken off.
– Remove exhaust enclosure;
see A 03.00.
Dismantling:

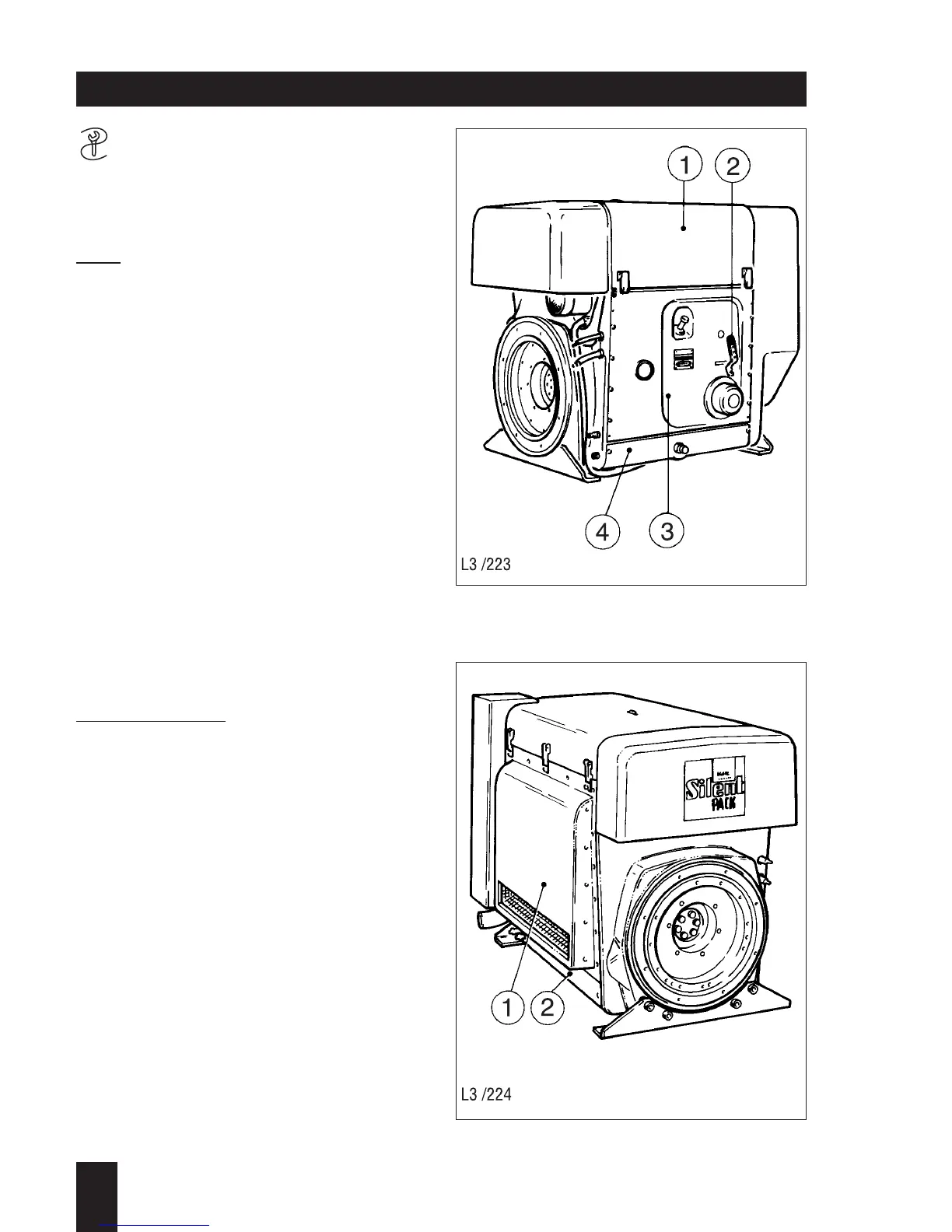

– Take off the hood (159/1), speed control
lever (159/2), side panel (159/3) and
cover plate (159/4).
– Detach the air outlet shaft (160/1) and
cover plate (160/2).
Note f
or 4 L 40 C:
Take out the cooling air guide lining ele-
ments.
– Take off the cross-member above the
injectors and raise the engine slightly at
its suspension lug until the baseplate of
the enclosure can be unscrewed and
removed.
– Detach the feet from the engine.
– When the feet have been removed, the
four 22 mm hex bolts used to attach the
baseplate should be used to support
the engine.
3
L / M . . 09.96
159
160
M 35.00 Capsule
