Demontage:
– Disconnect the solenoid and take off the
starting aid housing, taking care not to
turn the volume limiting eccentric.
– Take out machine screws (205/1) and
remove solenoid (205/2).
– Pull eccentric shaft (205/3) towards the
solenoid and unscrew hex nut (205/4)
with a 10 mm open-ended wrench.
– Pull out the eccentric shaft and remove
washer (205/5), lever (205/6), washer
(205/7) and spring (205/8).
Inspection / repair:
– Use a new O-ring seal (205/10).
– Check flexible gaiter for damage and
renew if necessary.
Assembling:
– Proceed in the opposite reverse; install
end cap (205/9) with sealant C.
2
L / M . . 09.96
205

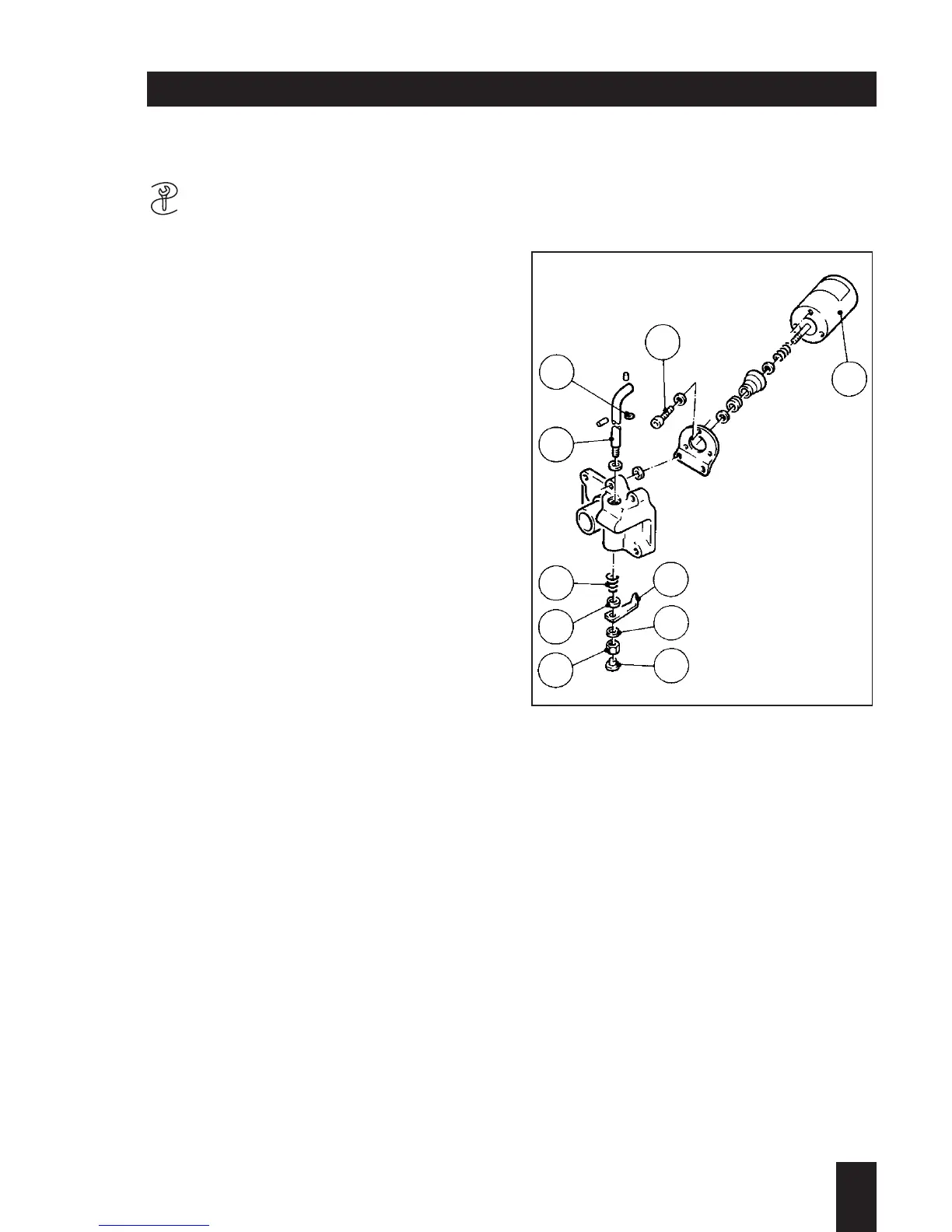

A 11.00 Automatic devices
A 11.10 Engine shutdown solenoid (up to serial numbers
2 L 40.16, 3-4 L 40.15, M 40.12, L 30 and H.L 30)
L3 / 199
2
1
10
3
8
7
4
6
5
9
