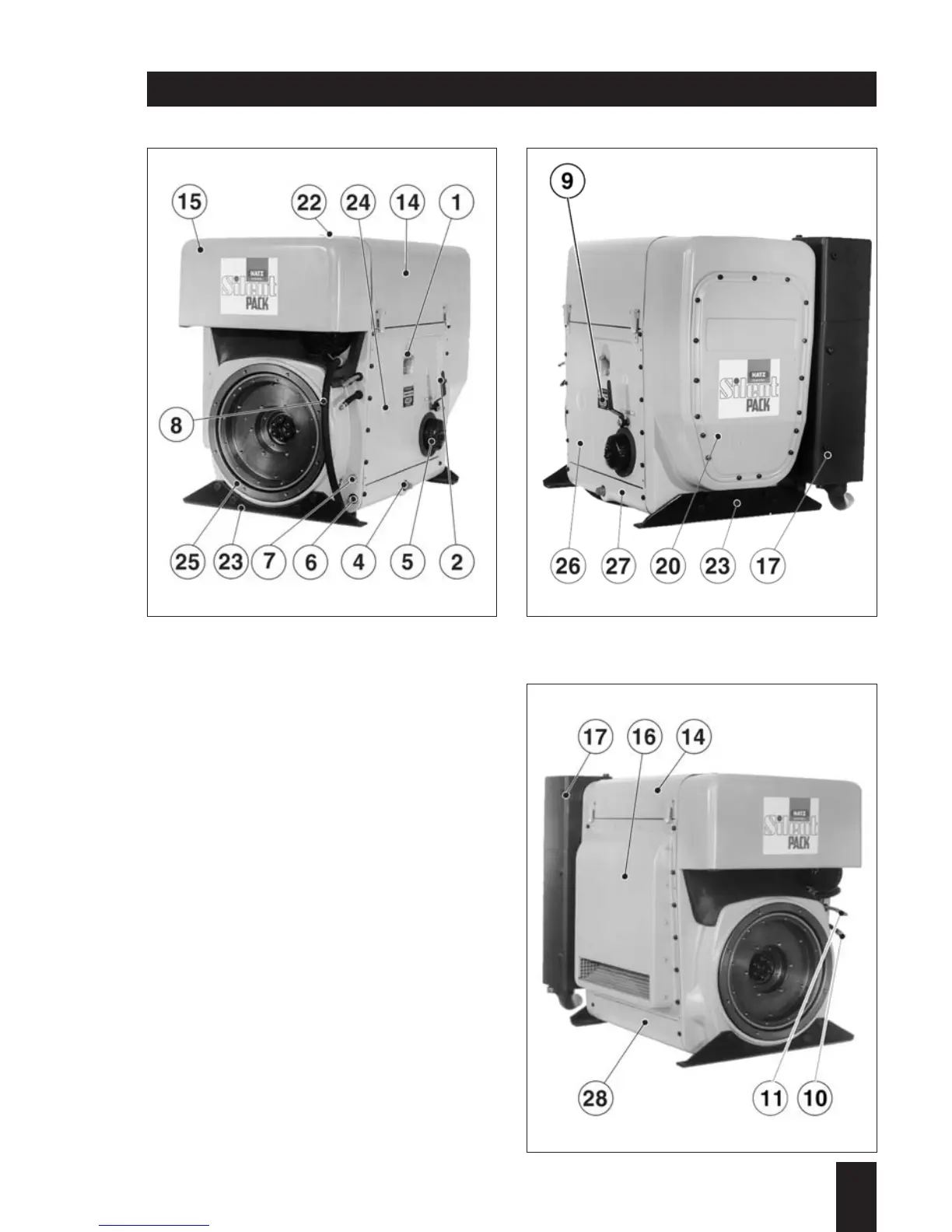

Operating and flywheel side
Encapsulated design
1 Lub.-oil filling and dipstick
2 Speed control lever
4 Oil drain plug
5 Lub.-oil filter
6 Battery + terminal
7 Battery - terminal
8 Wiring harness
9 Type plate
10 Fuel feed line
11 Fuel return line
14 Cover for capsule
15 Air intake duct of capsule
16 Outgoing air duct
17 Exhaust silencer (encapsulated)
20 Cover for air duct housing
(Access to governor housing of engine)
22 Eye hook for transport, disappearing
max. load 500 kg
23 Engine brackets
24 Access to fuel feed pump
25 Engine flange
26 Side panel
27 Cover, service side
28 Cover, outgoing air side
Operating and governor side
Outgoing air and flywheel side
Engine illustrations
1
L / M . . 10.98
