Preparations:
– Take off enclosure parts and air guide
plates; see M 35.00.
– Take off cylinder heads; see M 07.00.
– Detach fan and V-belt pulley from
crankshaft; see M 13.00.
– Remove piston, conrod and cylinder;
see M 05.00 / M 06.00.
– Take off flywheel and connecting hou-
sing.
– Detach the timing case cover;
see M 11.00.
– Take off the starter motor.

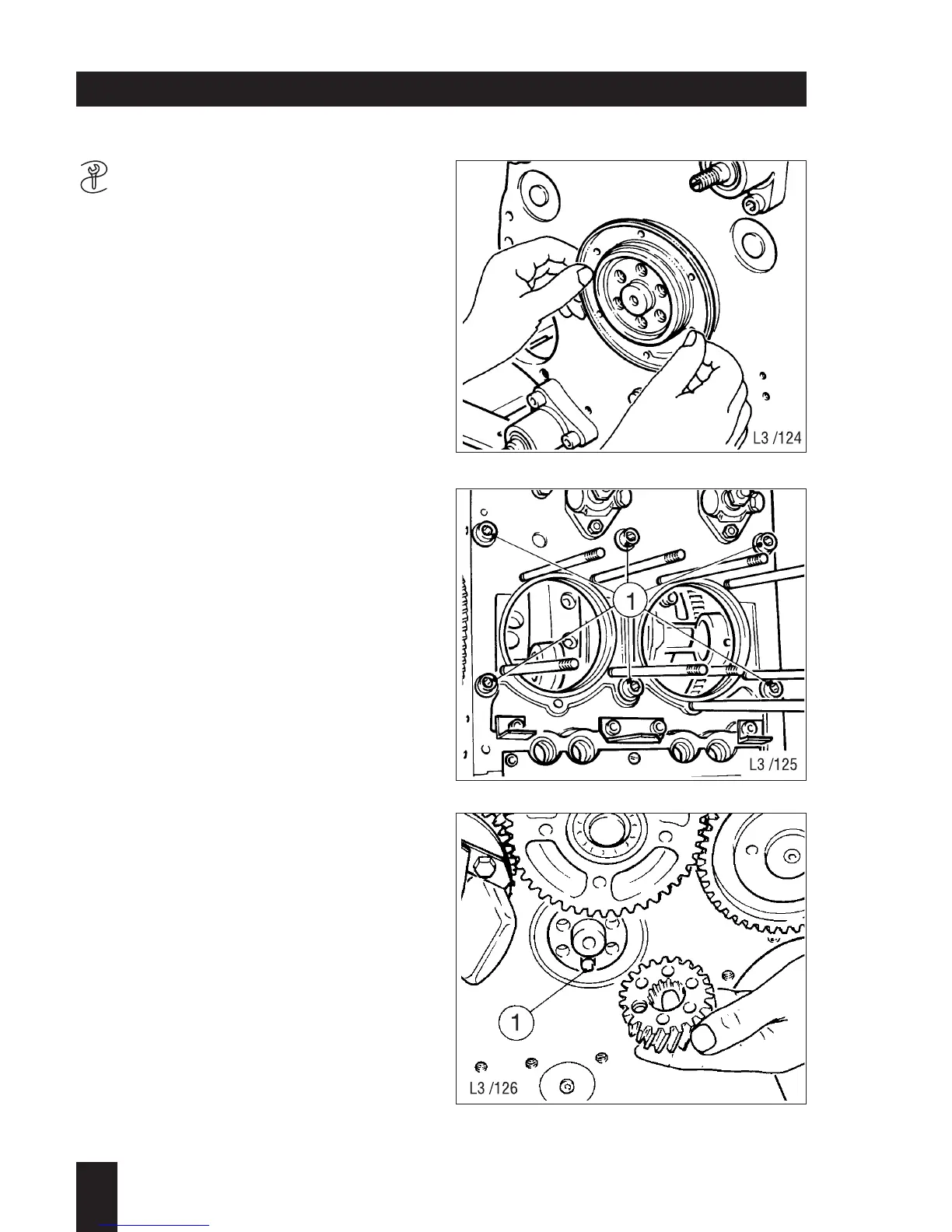

Dismantling:
– Remove machine screws and spring
washers for end cover and pull off the
end cover; see Fig. 19.
– Unscrew the machine screws(20/1) and
pull them out.
– Remove machine screws from cranks-
haft gearwheel, loosen the gearwheel
on the crankshaft with a plastic-faced
hammer and pull it off.
– Pull out the locking collet (21/1).
