5
3. INSTALLATION AND CONNECTION

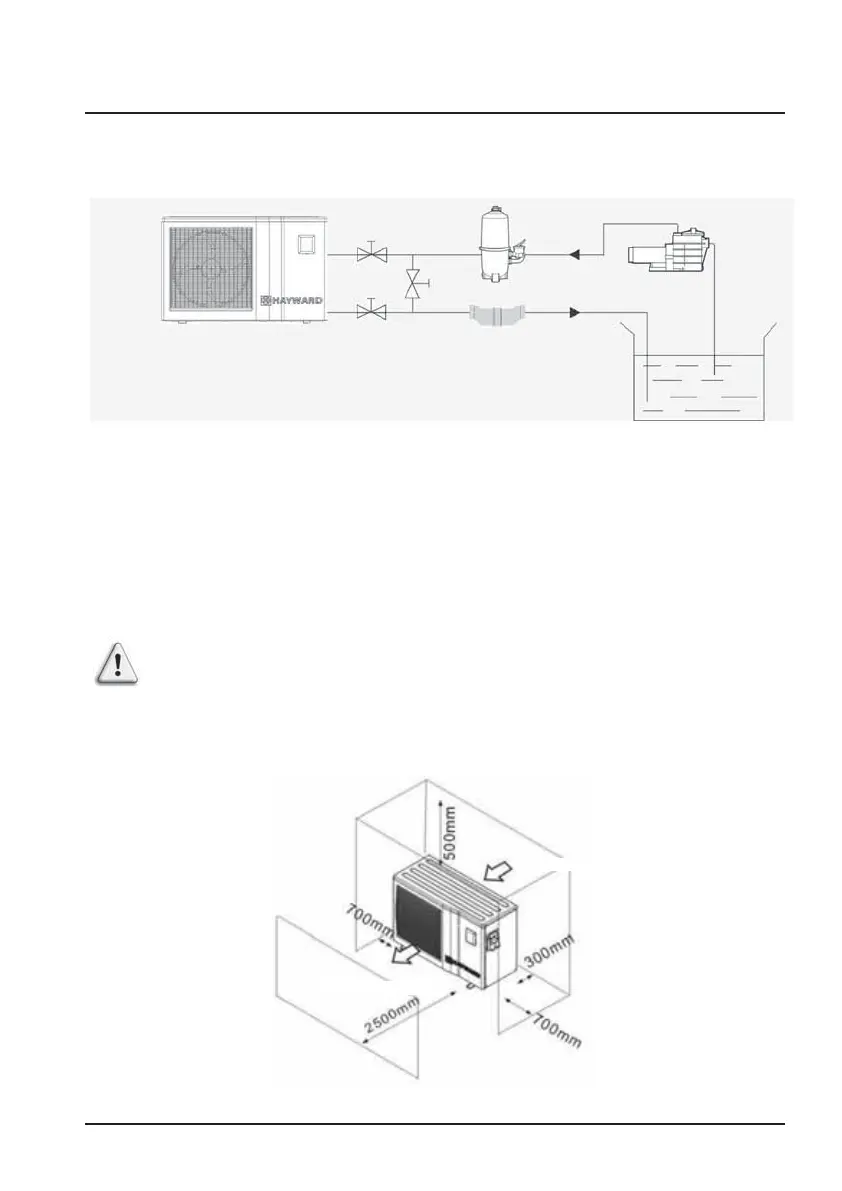

3.1 Functional Diagram
Note: The swimming pool heat pump unit is sold without any treatment or
filtration equipment. The components shown on the diagram are parts to
be supplied by the installation engineer.
3.2 Heat pump
Pool
Water outlet
Electrolyser cell
(or other treatment)
Filtration
pump
FilterWater inlet
valve
Water outlet
valve
By-pass
valve
Air intake
Air outlet
Place the heat pump outside and away from any enclosed plant room.
Placed under a shelter, the minimum distances given below must be
respected to avoid any risk of air recirculation and deterioration in the
heat pump’s overall performance.
