HIKVISION DS-K1T342 Series - Wiring Diagram of Door Locked When Powering off

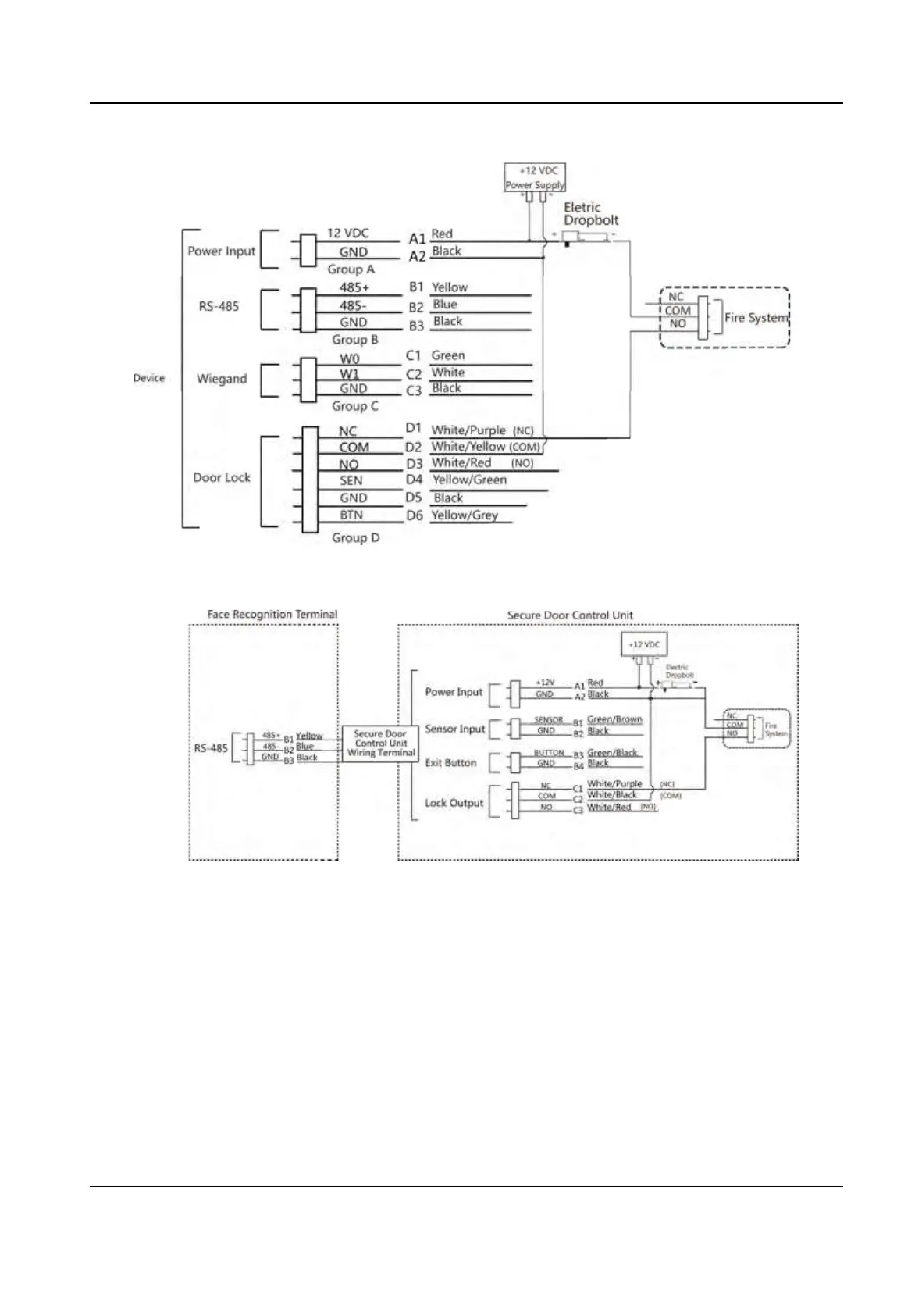

Figure 4-5 Wiring Device
Figure 4-6 Wiring Secure Door Control Unit
4.4.2 Wiring Diagram of Door Locked When Powering O
Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC)
Security Type: Door Locked When Powering O
Scenario: Installed in Entrance/Exit with Fire Linkage
