HIKVISION DS-KD7003EY-IME2 User Manual

3.1 One-Module Installaon
3.1.1 One-Module Surface Mounng
Before You Start

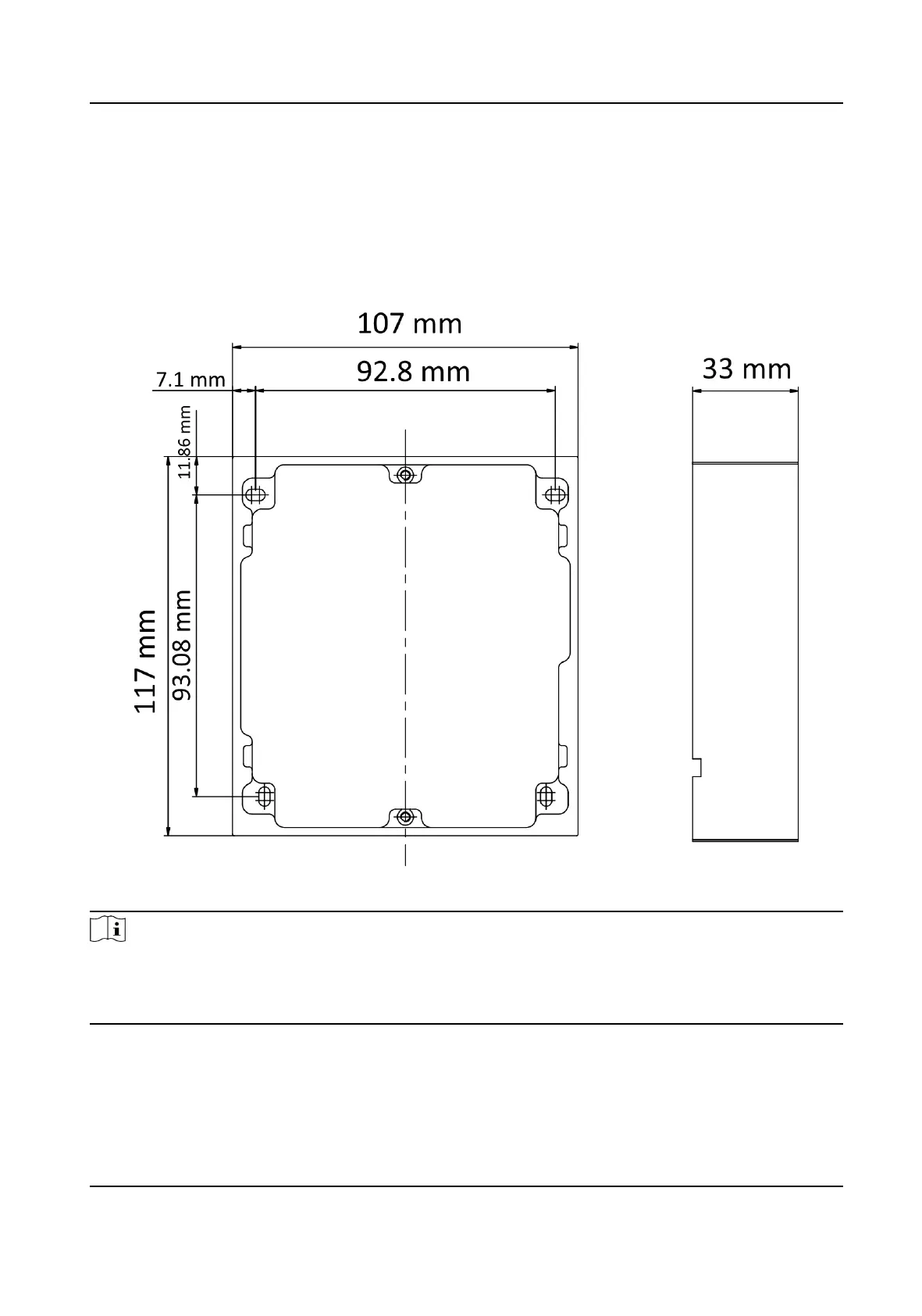

Figure 3-1 Mounng Frame
Note
●
The depth of one module mounng frame is 33 mm.
●
The dimensions above are for reference only. The actual size can be slightly dierent from the
theorecal dimension.
Steps
1.
Paste the
installaon Scker 1 onto the wall. Make sure the scker is placed horizontally via
measuring with the gradienter.
2.
Drill 4 holes according to the screw holes on the
scker.
DS-KD7003EY-IME2 Module Door Staon User Manual
6
