HIKVISION DS-KD7003EY-IME2 User Manual

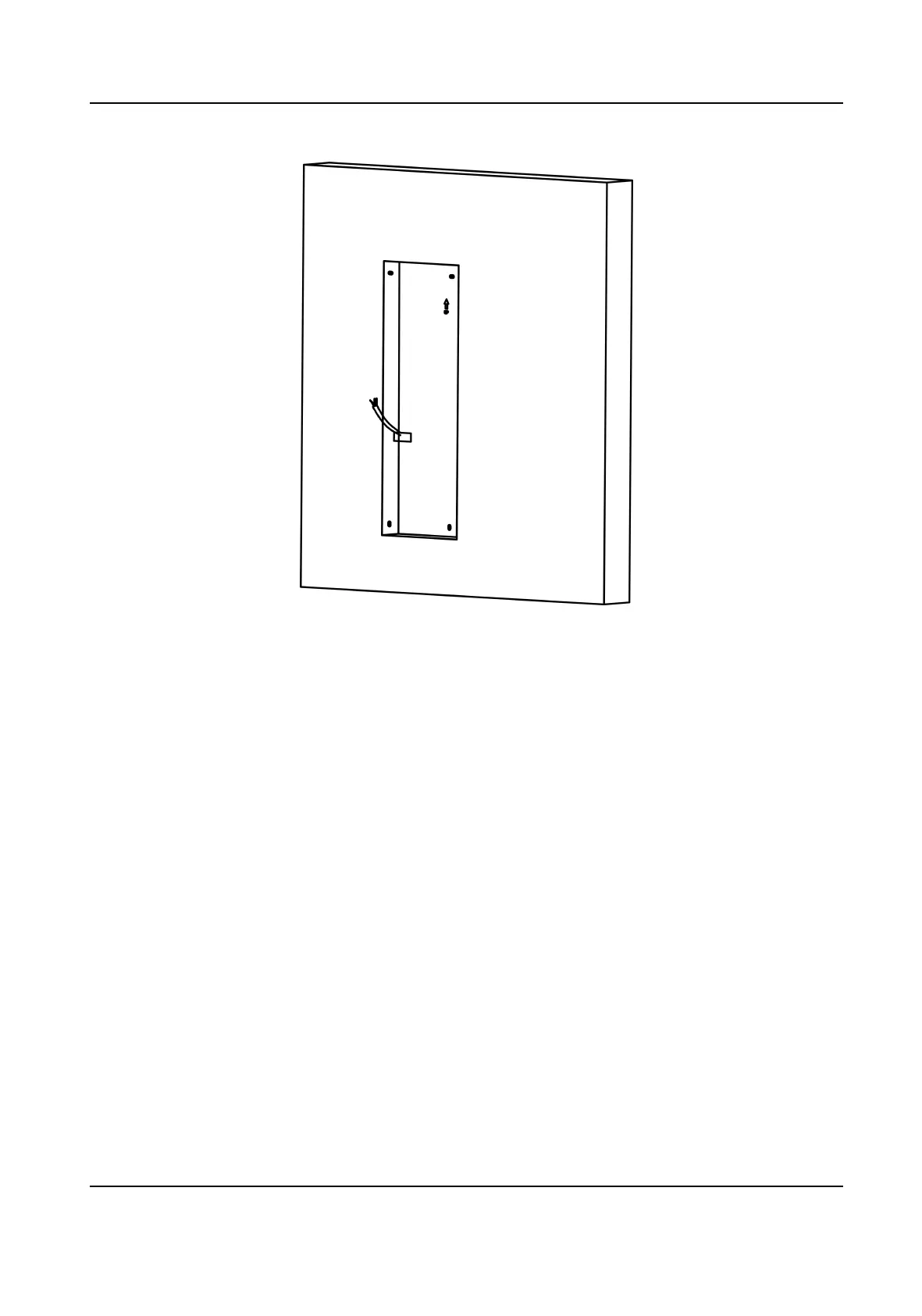

Figure 3-32 Cave the Installaon Hole
2.
Select a cable entry and remove the plasc sheet.
3.
Mark the
mounng frame screw holes on the wall.
1) Route the cables through the frame hole.
2) Insert the frame into the
installaon hole.
3) Mark the frame screw holes' posion with a marker, and take out the frame.
DS-KD7003EY-IME2 Module Door Staon User Manual
37

HIKVISION DS-KD7003EY-IME2 Specifications

General

Brand	HIKVISION
Model	DS-KD7003EY-IME2
Category	Intercom System
Language	English
