3 Terminal and Wiring Descripon
Door staon can be wired to alarm input interface, alarm input interface, door lock,
door contact and so on.

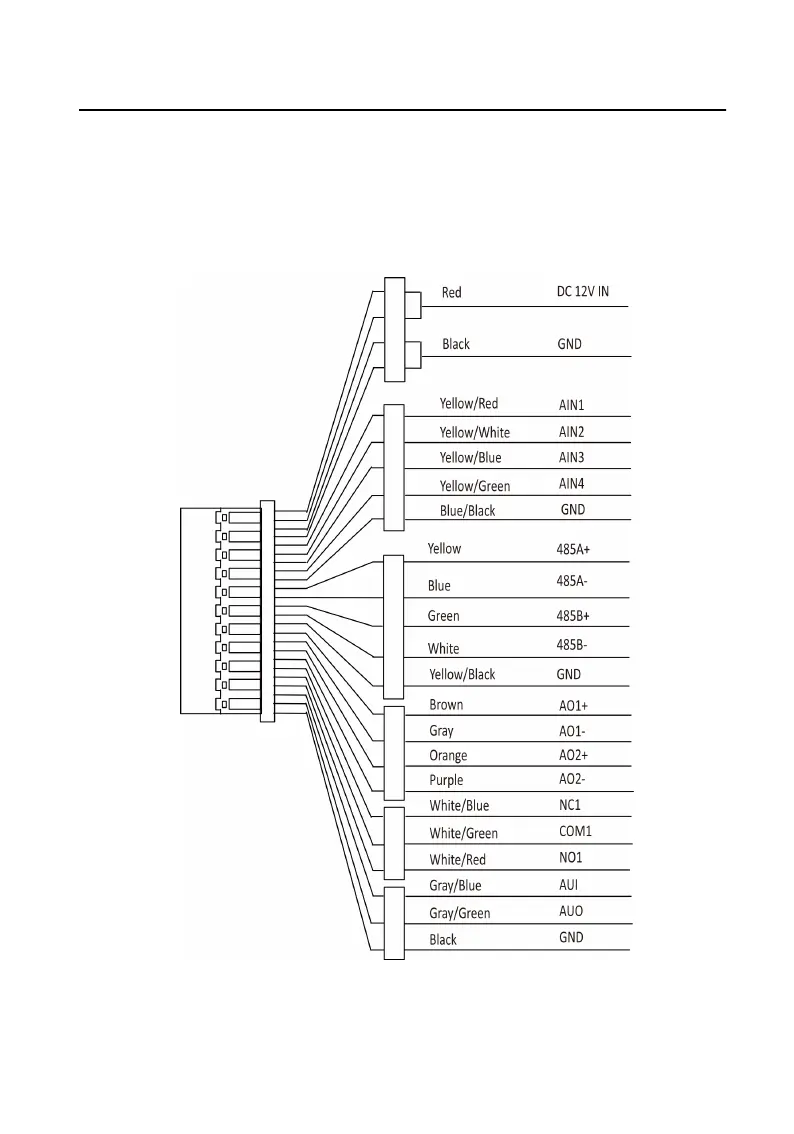

Figure 3-1 Terminal and Wiring Descripon
Wiring descripon:
Video Intercom Face
Recognion Door Staon User Manual
6
