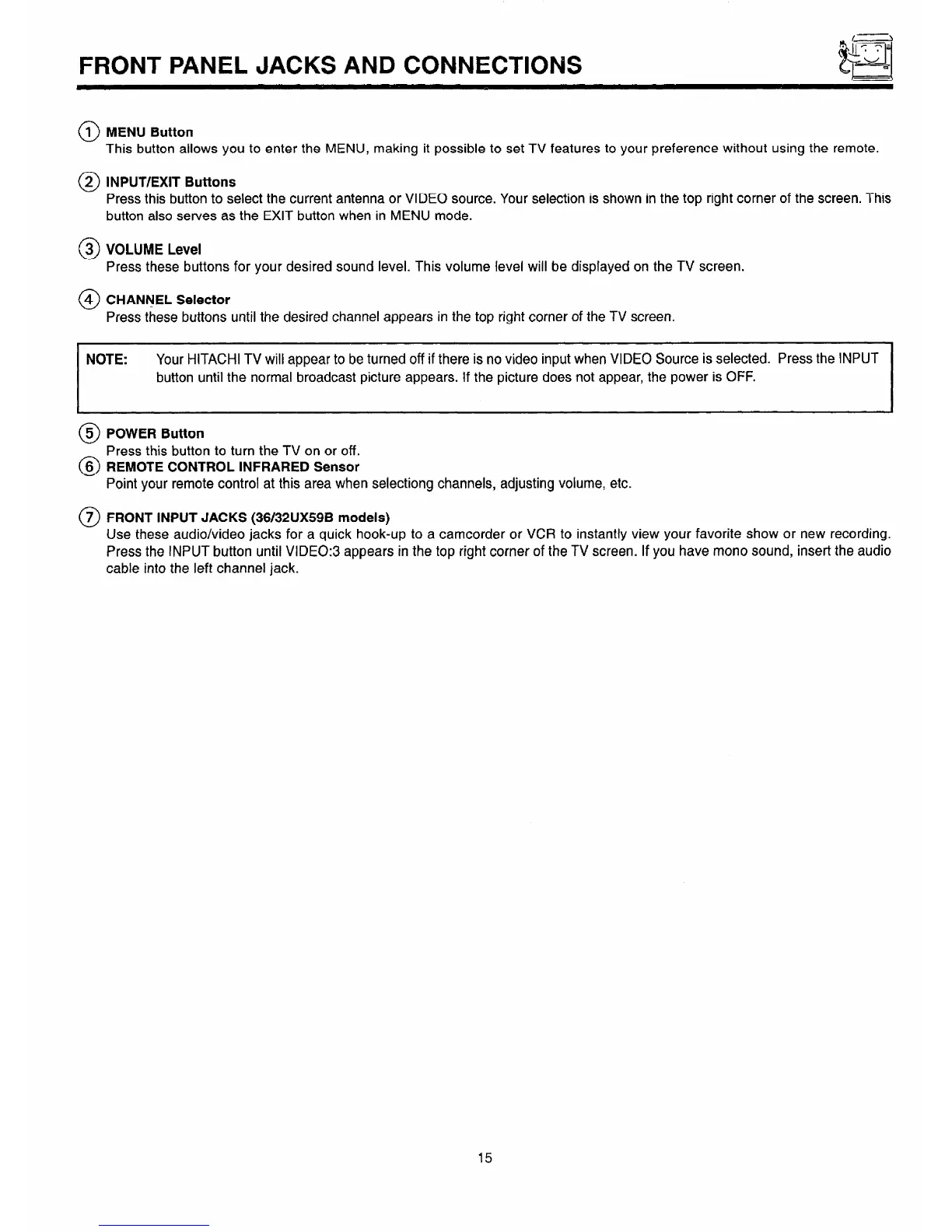

FRONT PANEL JACKS AND CONNECTIONS
0
1 MENU Button
This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote.
0
2 INPUT/EXIT Buttons
Press this button to select the current antenna or VIDEO source. Your selection is shown in the top right corner of the screen. This
button also serves as the EXIT button when in MENU mode.
0
3 VOLUME Level
Press these buttons for your desired sound level. This volume ievel will be displayed on the TV screen.
0
4 CHANNEL Selector
Press these buttons until the desired channel appears in the top right corner of the TV screen.
NOTE: Your HITACHI TV will appear to be turned off if there is no video input when VIDEO Source is selected.
Press the INPUT
button until the normal broadcast picture appears. If the picture does not appear, the power is OFF.
0
5 POWER Button
Press this button to turn the TV on or off.
0
6 REMOTE CONTROL INFRARED Sensor
Point your remote control at this area when selectiong channels, adjusting volume, etc.
0
7 FRONT INPUT JACKS (36/32UX59B models)
Use these audio/video jacks for a quick hook-up to a camcorder or VCR to instantly view your favorite show or new recording.
Press the JNPUT button until VIDEO:3 appears in the top right corner of the TV screen. If you have mono sound, insert the audio
cable into the left channel jack.
15
