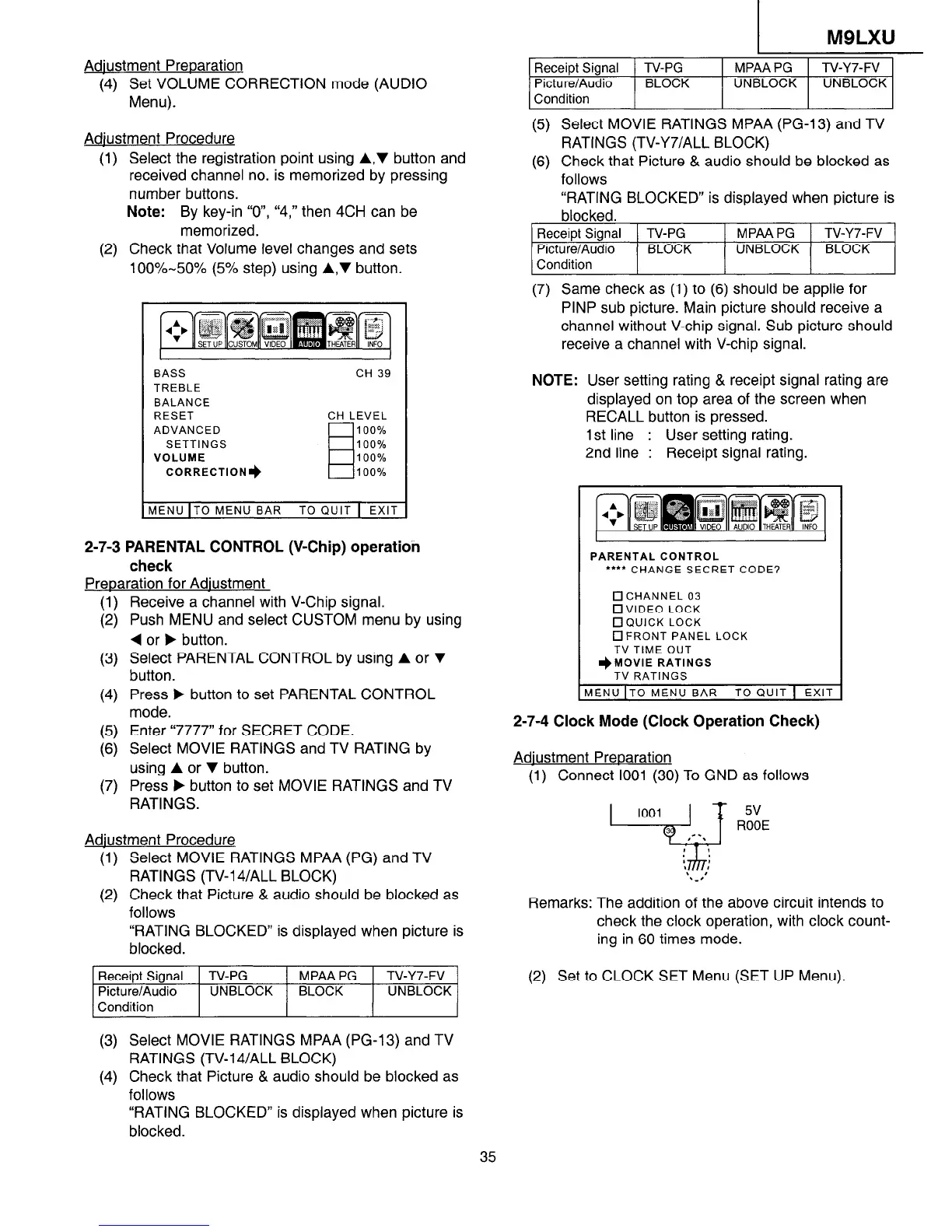

MSLXU
Adiustment Preparation
(4) Set VOLUME CORRECTION mode (AUDIO
Menu).
Adjustment Procedure
(1) Select the registration point using A,v button and
received channel no. is memorized by pressing
number buttons.
Note: By key-in “O”, “4,” then 4CH can be
memorized.
(2) Check that Volume level changes and sets
lOO%-50% (5% step) using A.,v button.
BASS CH 39
TREBLE
BALANCE
RESET CH LEVEL
ADVANCED 100%
SETTINGS 100%
VOLUME 100%
CORRECTION+ 100%
dENU IT0 MENU BAR TO QUIT 1 EXIT
2-7-3 PARENTAL CONTROL (V-Chip) operation
check
Preparation for Adjustment
(1) Receive a channel with V-Chip signal.
(2) Push MENU and select CUSTOM menu by using
4 or F button.
(3) Select PARENTAL CONTROL by using A or v
button.
(4) Press F button to set PARENTAL CONTROL
mode.
(5) Enter “7777” for SECRET CODE.
(6) Select MOVIE RATINGS and TV RATING by
using A or v button.
(7) Press b button to set MOVIE RATINGS and TV
RATINGS.
Adiustment Procedure
(1) Select MOVIE RATINGS MPAA (PG) and TV
RATINGS (TV-l 4/ALL BLOCK)
(2) Check that Picture & audio should be blocked as
follows
“RATING BLOCKED” is displayed when picture is
blocked.
Receipt Signal TV-PG MPAA PG
TV-Y7-FV
Picture/Audio UNBLOCK BLOCK UNBLOCK
Condition
(3) Select MOVIE RATINGS MPAA (PG-13) and TV
RATINGS (TV-14/ALL BLOCK)
(4) Check that Picture & audio should be blocked as
follows
“RATING BLOCKED” is displayed when picture is
blocked.
Receipt Signal TV-PG MPAA PG TV-Y7- FV
Picture/Audio BLOCK UNBLOCK UNBLOCK
Condition
(5) Select MOVIE RATINGS MPAA (PG-13) and TV
RATINGS (TV-Y7IALL BLOCK)
(6) Check that Picture & audio should be blocked as
follows
“RATING BLOCKED” is displayed when picture is
blocked.
Receipt Signal TV-PG MPAA PG TV-Y7-FV
Picture/Audio BLOCK UNBLOCK BLOCK
Condition
(7) Same check as (1) to (6) should be applie for
PINP sub picture. Main picture should receive a
channel without V-chip signal. Sub picture should
receive a channel with V-chip signal.
NOTE: User setting rating & receipt signal rating are
displayed on top area of the screen when
RECALL button is pressed.
1st line : User setting rating.
2nd line : Receipt signal rating.
PARENTALCONTROL
l
*** CHANGE SECRET CODE?
0 CHANNEL 03
0 VIDEO LOCK
0 QUICK LOCK
0 FRONT PANEL LOCK
TV TIME OUT
+MOVIE RATINGS
TV RATINGS
MENU IT0 MENU BAR TO QUIT 1 EXIT
2-7-4 Clock Mode (Clock Operation Check)
Adiustment Preparation
(1) Connect 1001 (30) To GND as follows
5v
ROOE
Remarks: The addition of the above circuit intends to
check the clock operation, with clock count-
ing in 60 times mode.
(2) Set to CLOCK SET Menu (SET UP Menu).
35
