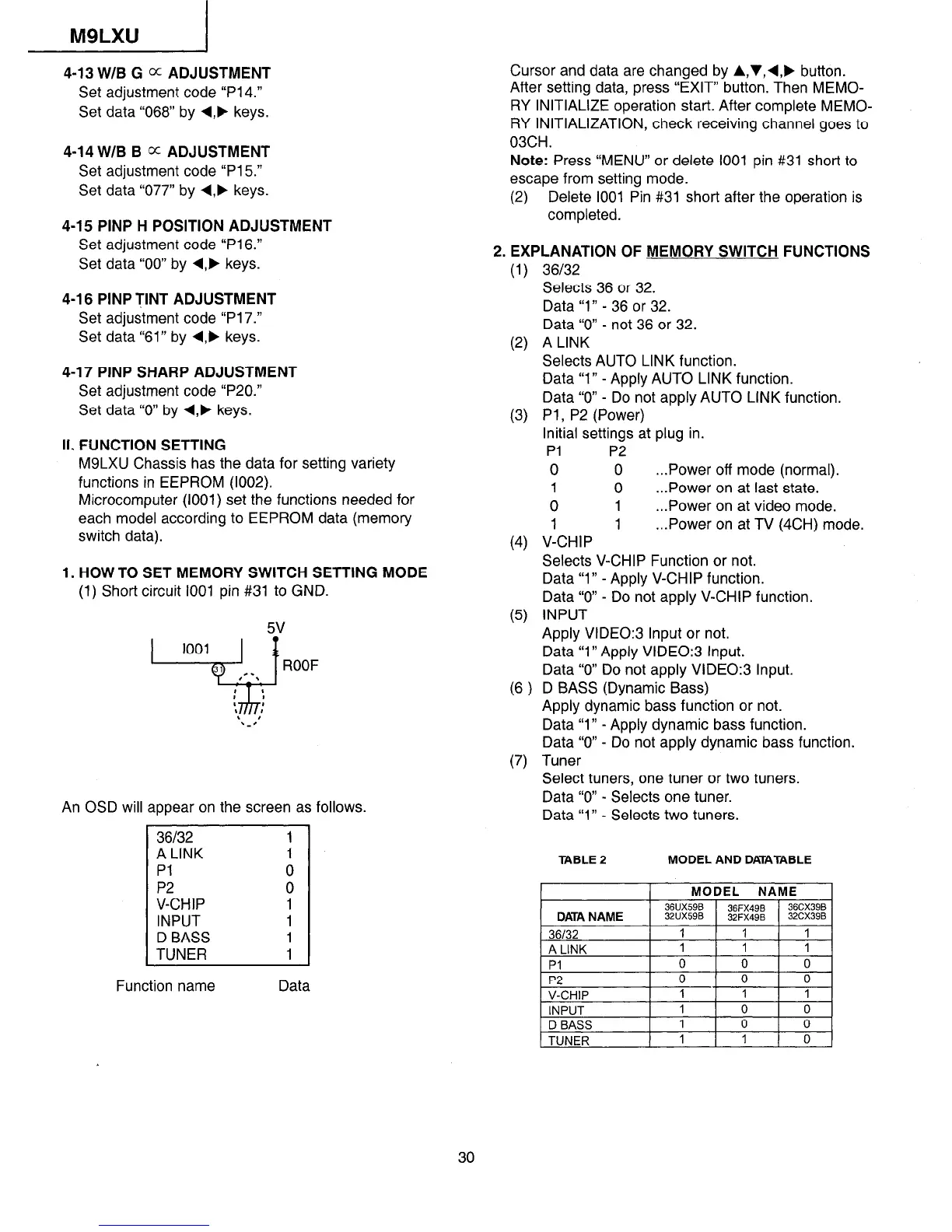

4-13 W/B G cc ADJUSTMENT
Set adjustment code “P14.”
Set data “068” by d,, keys.
4-14 W/B B cc ADJUSTMENT
Set adjustment code “P15.”
Set data “077” by d,, keys.
4-15 PINP H POSITION ADJUSTMENT
Set adjustment code “P16.”
Set data “00” by d,, keys.
4-l 6 PINP TINT ADJUSTMENT
Set adjustment code “P17.”
Set data “61” by q,, keys.
4-l 7 PINP SHARP ADJUSTMENT
Set adjustment code “P20.”
Set data “0” by d,, keys.
II. FUNCTION SETTING
MSLXU Chassis has the data for setting variety
functions in EEPROM (1002).
Microcomputer (1001) set the functions needed for
each model according to EEPROM data (memory
switch data).
1. HOW TO SET MEMORY SWITCH SETTING MODE
(1) Short circuit 1001 pin #31 to GND.
5v
ROOF
An OSD will appear on the screen as follows.
1 36132
A LINK
’ Pl
P2
V-CHIP
INPUT
D BASS
TUNER
Function name
Data
Cursor and data are changed by A,v’,d,, button.
After setting data, press “EXIT” button. Then MEMO-
RY INITIALIZE operation start. After complete MEMO-
RY INITIALIZATION, check receiving channel goes to
03CH.
Note: Press “MENU” or delete 1001 pin #31 short to
escape from setting mode.
(2) Delete 1001 Pin #31 short after the operation is
completed.
2. EXPLANATION OF MEMORY SWITCH FUNCTIONS
(1) 36/32
Selects 36 or 32.
Data “1” - 36 or 32.
Data “0” - not 36 or 32.
(2) A LINK
Selects AUTO LINK function.
Data “1” - Apply AUTO LINK function.
Data “0” - Do not apply AUTO LINK function.
(3) Pl, P2 (Power)
Initial settings at plug in.
Pl P2
0 0 . ..Power off mode (normal).
1
0
. ..Power on at last state.
0 1 . ..Power on at video mode.
(4) VlCHlP
1 . ..Power on at TV (4CH) mode.
Selects V-CHIP Function or not.
Data “1” -Apply V-CHIP function.
Data “0” - Do not apply V-CHIP function.
(5) INPUT
Apply VIDEO:3 Input or not.
Data “1” Apply VIDEO:3 Input.
Data “0” Do not apply VIDEO:3 Input.
(6 ) D BASS (Dynamic Bass)
Apply dynamic bass function or not.
Data “1” - Apply dynamic bass function.
Data “0” - Do not apply dynamic bass function.
(7) Tuner
Select tuners, one tuner or two tuners.
Data “0” - Selects one tuner.
Data “1” - Selects two tuners.
TABLE 2
MODEL AND DATATABLE
