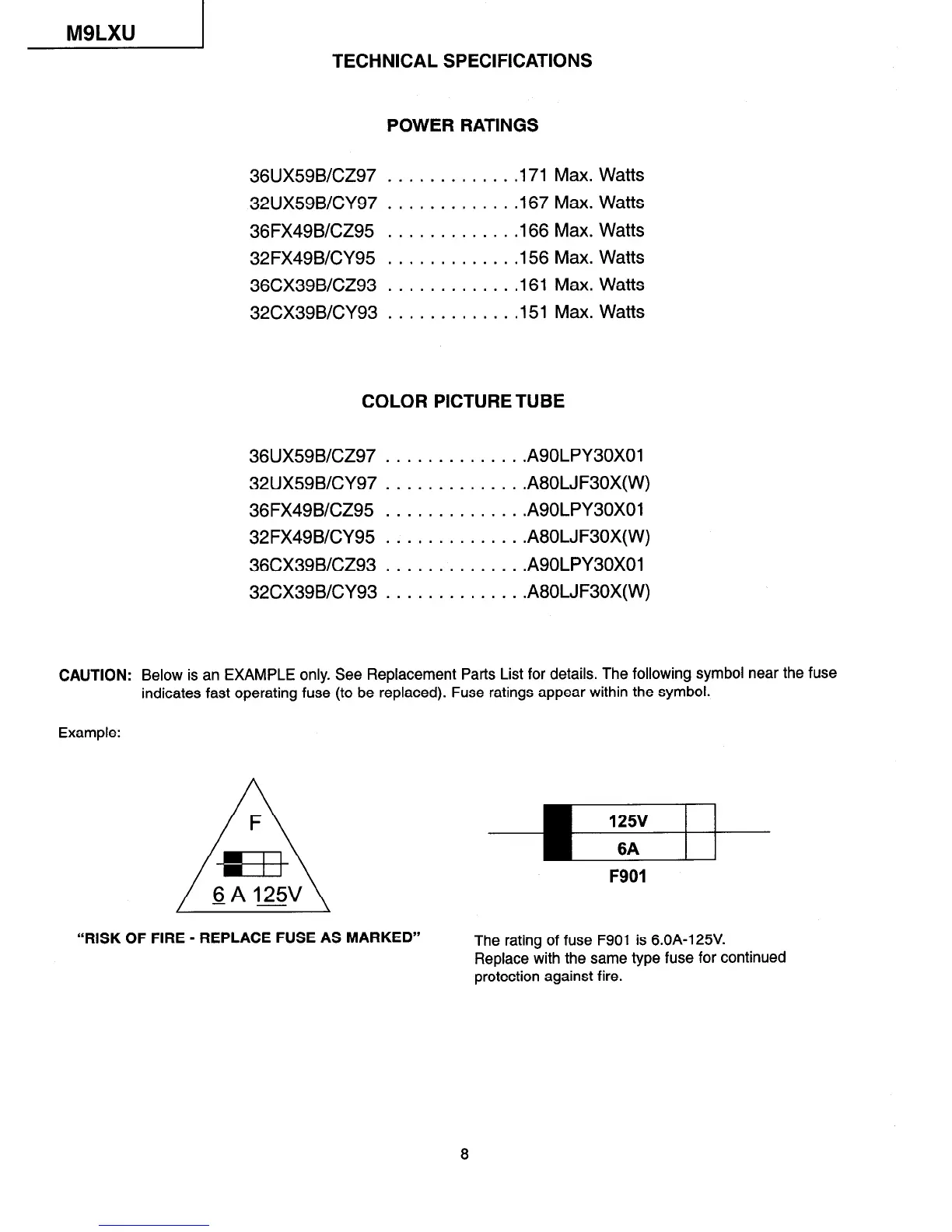

MSLXU
TECHNICAL SPECIFICATIONS
POWER RATINGS
36UX59BKZ97
............
.171 Max. Watts
32UX59BKY97 ............ .167 Max. Watts
36FX49BEZ95 ............
.166 Max. Watts
32FX49BEY95 ............ .156 Max. Watts
36CX39BEZ93 ............
.161 Max. Watts
32CX39BEY93 ............
.151 Max. Watts
COLOR PICTURE TUBE
36UX59BKZ97 ............. .A90LPY30XOl
32UX59BKY97 ............. .A80LJF30X(W)
36FX49BKZ95 ............. .A90LPY30XOl
32FX49BKY95 ............. .A80LJF30X(W)
36CX39BEZ93 ............. .A90LPY30XOl
32CX39BEY93 ............. .A80LJF30X(W)
CAUTION: Below is an EXAMPLE only. See Replacement Parts List for details. The following symbol near the fuse
indicates fast operating fuse (to be replaced). Fuse ratings appear within the symbol.
Example:
“RISK OF FIRE - REPLACE FUSE AS MARKED”
The rating of fuse F901 is 6.OA-125V.
Replace with the same type fuse for continued
protection against fire.
a
