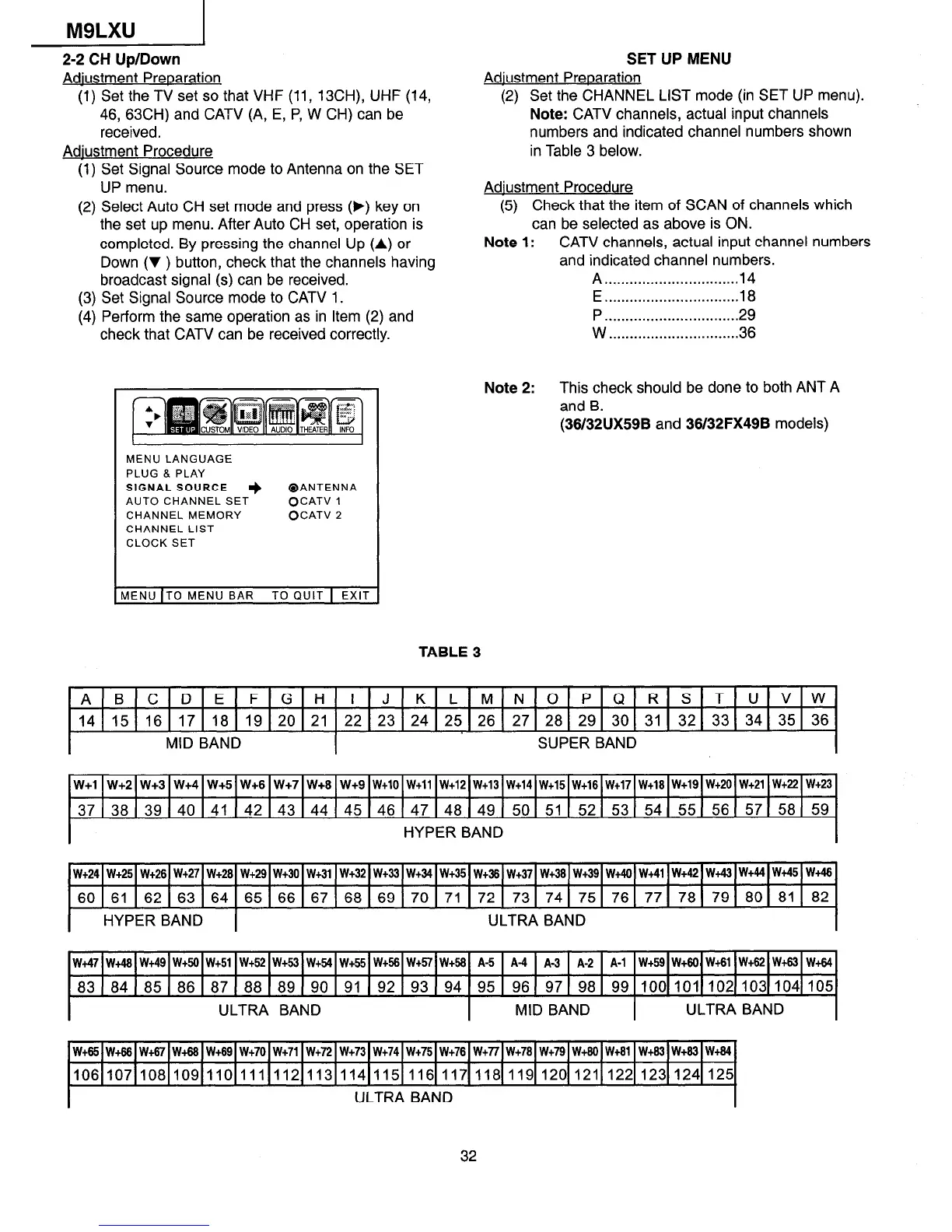

1 MSLXU
2-2 CH Up/Down
SET UP MENU
Adiustment Preoaration
(1) Set the TV set so that VHF (11, 13CH), UHF (14,
46,63CH) and CATV (A, E, P, W CH) can be
received.
Adjustment Procedure
Adjustment Preparation
(2) Set the CHANNEL LIST mode (in SET UP menu).
Note: CATV channels, actual input channels
numbers and indicated channel numbers shown
in Table 3 below.
(1) Set Signal Source mode to Antenna on the SET
UP menu.
(2) Select Auto CH set mode and press (b) key on
the set up menu. After Auto CH set, operation is
completed. By pressing the channel Up (A) or
Down (v ) button, check that the channels having
broadcast signal (s) can be received.
(3) Set Signal Source mode to CATV 1.
(4) Perform the same operation as in Item (2) and
check that CATV can be received correctly.
Adjustment Procedure
(5) Check that the item of SCAN of channels which
can be selected as above is ON.
Note 1: CATV channels, actual input channel numbers
and indicated channel numbers.
A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
I I
MENU LANGUAGE
PLUG 8 PLAY
SIGNAL SOURCE + @ANTENNA
AUTO CHANNEL SET OCATV 1
CHANNEL MEMORY
OCATV 2
CHANNEL LIST
CLOCK SET
AENU IT0 MENU BAR TO QUIT 1 EXIT
TABLE 3
Note 2: This check should be done to both ANT A
and B.
(36/32UX59B and 36/32FX49B models)
A B C D E FGHI J KLMNOPQ RSTUVW
14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
MID BAND SUPER BAND
W+l W+2 W+3 W+4 W+5 W+6 W+7 W+8 W+9 WtlO Wtll Wt12 Wt13 Wt14 Wt15 Wt16 Wt17 Wt18 Wt19 Wt20 Wt21 Wt22 Wt23
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59
HYPER BAND
Wt24 W+25 Wt26 Wt27 Wt28 Wt29 Wt30 Wt31 Wt32 Wt33 Wt34 Wt35 Wt36 Wt37 Wt38 Wt39 Wt40 Wt41 Wt42 Wt43 Wt44 Wt45 Wt46
60 61 62 63 64 65 66 67 68 69 70 71
72 73 74 75 76 77 78 79 80 81 82
HYPER BAND ULTRA BAND
Wt47 Wt46 Wt49 Wt50 Wt51 Wt52 Wt53 Wt54 Wt55 Wt56 Wt57 Wt56 A-5 A-4 A-3 A-2 A-l Wt59 Wt60 Wt61 Wt62 Wt63 Wt64
83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105
ULTRA BAND MID BAND ULTRA BAND
Wt65 Wt66 Wt67 Wt66 Wt69 Wt70 Wt71 Wt72 Wt73 Wt74 Wt75 Wt76 Wt77 Wt78 Wt79 Wt60 Wt61 Wt63 Wt63 Wt84
106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125
ULTRA BAND
32
