3-22 ●Basic operation
Excitation V update 2015.07.0712:45
Com=0
[Standby ]
Excitation V-ref.
Ref. ambient temperature
Automatic update
Incremental change
Print trigger source
Print data
Inc.
Sensor
Button input
11
Data to be displayed
For test
1
(0〜19)

20
(1〜9)

− ＋
(℃)
M
Manual
HOME
Shutdown
2015.07.0712:45
Com=0
Excitation V-ref.
Ref. ambient temperature

Automatic update
Incremental change
Print trigger source
Print data
Inc.
1
(0〜19)
(℃)
20
(1〜9)

11
Excitation V update [Standby ]
Sensor
Button input
Data to be displayed
For test
Incre-
ment
7 8 9
Enter
4 5 6 Clear
1 2 3
0 ← →
Decre-
ment
Cancel
１１
−
M
Manual
HOME
Shutdown
3.3.3 Basic operation to change the settings
(1) Overview
●There are 3 types of settings.
No. Classification
Set value confirmation
method
Set value change method
1 Setting of value
The value is displayed on
the numeric buttons.
Display the value window by
pressing the numeric button
and input the value.
2
Setting with few selections.
(All selection buttons are
displayed: mainly a choice
between the two)
The pressed button
becomes yellow.
Press the applicable button.
3
Settings with many selections.
(When a button is pressed, a
selection menu is displayed in a
window.)
The set value is displayed
on the input button.
Display the selection menu
window by pressing the but-
ton and select the
relevant item.

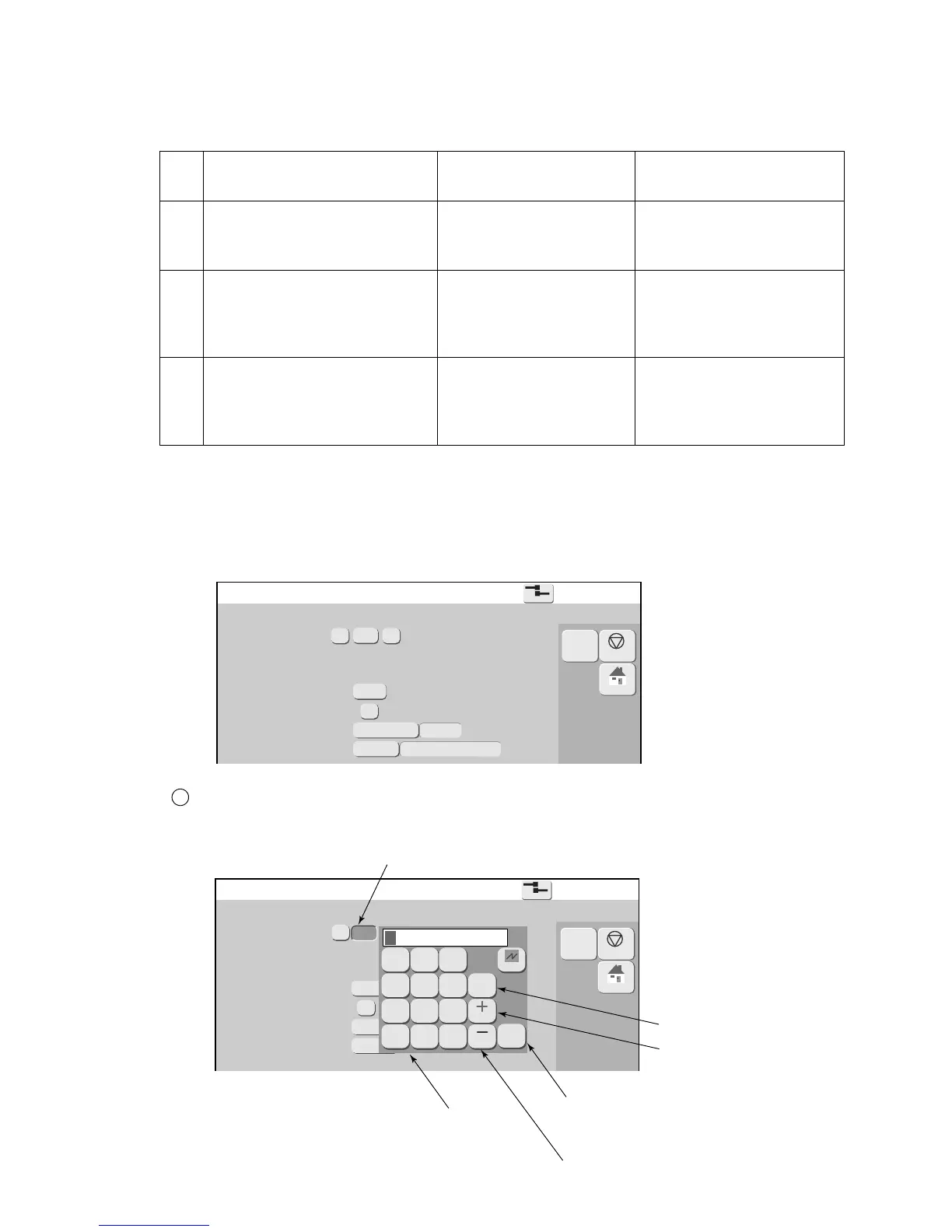

(2) Operation (Maintenance “Excitation V update” screen is used as an
example.)
●There are 3 types of settings.
1
“Excitation V-ref.” setting (Value input)
Display the numeric window by pressing the numbers button and input the value.
Minimum value is input.
Each time this button is
pressed, the set value is
increased by 1.
The value window is closed
and the input value is reflected
on the screen.
Each time this button is pressed,
the set value is decreased by 1.
Press the numeric button.
Numeric windows displayed.
