16
CONTROLS AND FEATURES

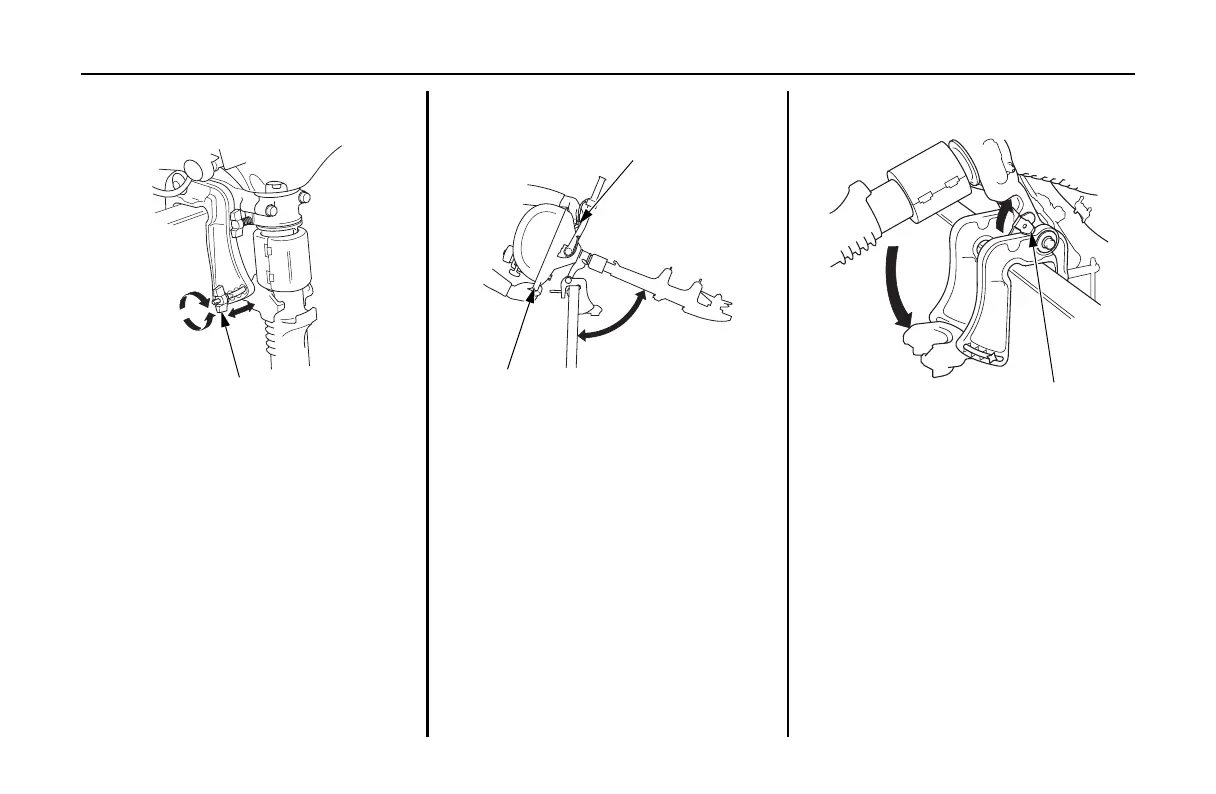

Transom Angle Adjusting Bolt
The transom angle adjusting bolt is
used to adjust the angle of the
outboard motor in the normal
operating position (see page 34).
Loosen the wing nut to free the
adj
usting bolt.
Adjust the angle of the outboard
motor
, and tighten the wing nut. Be
sure that the bolt head and wing nut
are seated in one of the four recesses
in the adjustment slot.
Tilt Lever
The tilt lever enables the outboard
motor to be tilted for beaching,
launching, or mooring.
Tilt the outboard motor by holding
th
e carrying handles, as shown. The
spring-loaded tilt lever will
automatically move into position and
hold the outboard motor when it
reaches approximately 75°.
To return the outboard motor to the
normal
running position, hold the
outboard motor and pull the tilt lever,
then slowly lower the outboard
motor.
ADJUSTING BOLT AND WING NUT
FRONT CARRYING
HANDLE
REAR CARRYING HANDLE
75°
TILT LEVER
