SERVICING YOUR OUTBOARD MOTOR
Gear Case Oil Change
Change the gear case oil with the
engine stopped and the outboard
motor in the vertical position.
1. Place a suitable container below the
oil drain
hole to catch the used oil,
then remove the oil level screw and
oil drain/fill screw.
2. Allow the used oil to drain
completely, then install an oil pump
adapter in the oil drai
n hole.
If water or contaminated
(milky-colored) oil flows out the
drain hole when the sc
rew is
removed, have the outboard motor
checked by an authorized Honda
Marine dealer.
Improper disposal of gear case oil
can be harmful to the environment.
If you change your own oil, please
dispose of the used oil properly. Put
it in a sealed container, and take it
to a recycling center. Do not
discard it in a trash bin, dump it on
the ground, or pour it down the
drain.
3. Add oil through the oil drain hole
until it
flows out the oil level hole,
and then install the oil level screw.
Remove the pump adapter and
install the oil drain/fill screw.
GEAR OIL CAPACITY:
0.05 US qt (0.05 L)
Outboard motor SAE 90 hypoid
gear oil API Servic
e category
(GL-4)
OIL LEVEL PLUG TORQUE:
2.5 lbf·ft (3.4 N·m, 0.35 kgf·m)
Avoid losing more than 1 fl oz
(30 cm
3
) while reinstalling the
drain/fill screw.
OIL DRAIN PLUG TORQUE:
2.5 lbf·ft (3.4 N·m, 0.35 kgf·m)

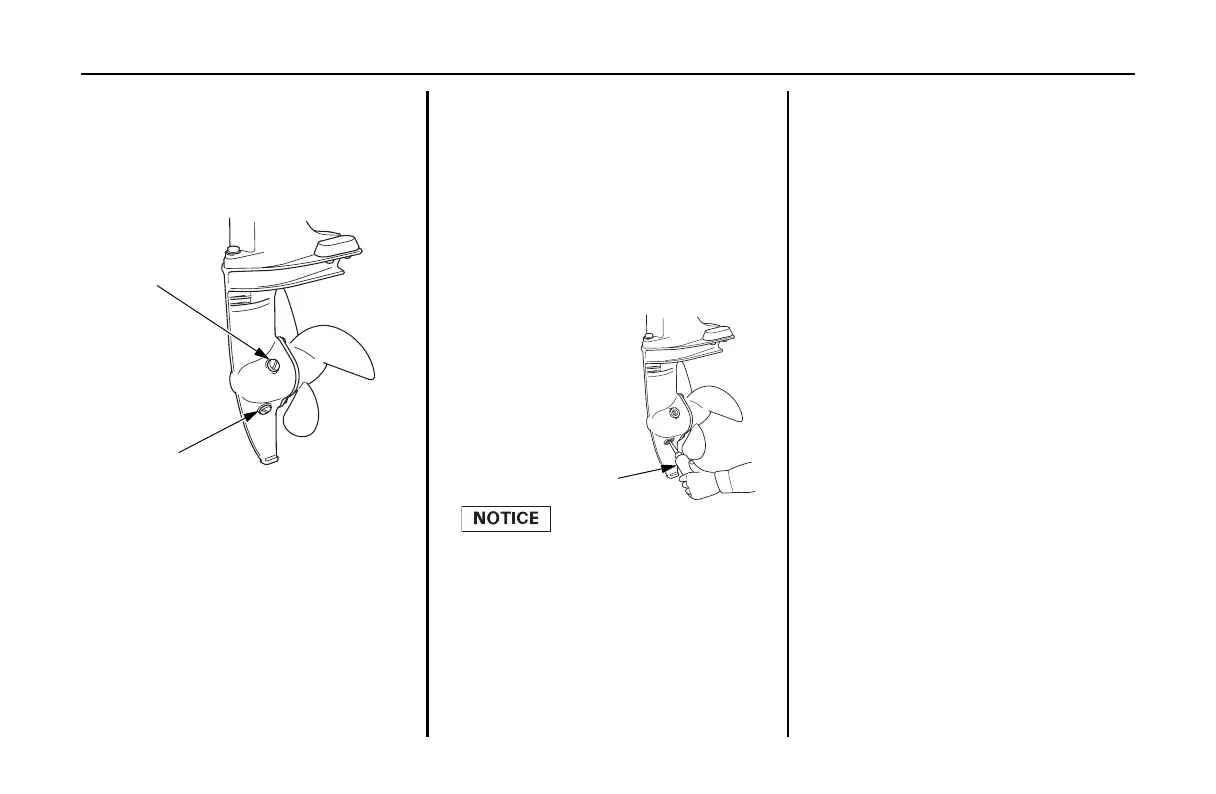

GEAR OIL
LEVEL SCREW
GEAR OIL DRAIN/
FILL SCREW
GEAR OIL BOTTLE
