CHAPTER 2 COMMISSIONING OF A STANDALONE SYSTEM SETUP
The procedure for the commissioning of a standalone CIU 888 system
setup consists of the following steps:
1. Running the initial setup of the CIU 888, see section 2.2
2. Setting up the site configuration and generating INI files, see section
2.3
3. Uploading the site configuration to the CIU 888, see section 2.4
4. Configuring the additional configuration settings, see section 2.5
5. End commissioning of the CIU 888, see section 2.6
6. Updating the INI files, see section 4
7. Restarting the Entis Pro system connected to the CIU 888, and
loading the updated INI files in Entis Pro, see section 2.8
8. Sealing the CIU 888, see section 2.9
9. Verifying the working of the system setup, see section 2.10
2.1 Requirements for commissioning
For the commissioning of a standalone CIU 888 system setup the
following requirements must have been met:
The electrical and mechanical installation of the CIU 888 must be
completed. Refer to the Installation Manual CIU 888 (Part No.
4417590) for more information.
The CIU 888 must be switched on, see section 5.1.1
Both the W&M lock key switch and the Configuration lock key switch
must be in ‘unlocked’ position, see section 5.2
A PC/laptop running the CIU 888 Configuration System must be
connected to the Service port of the CIU 888 using a Cat. 5 Ethernet
cable (patch or crossover). The Service port is located at the front of
the CIU 888 (see FIGURE 2-1). See Chapter 1 for more information
about the CIU 888 Configuration System.

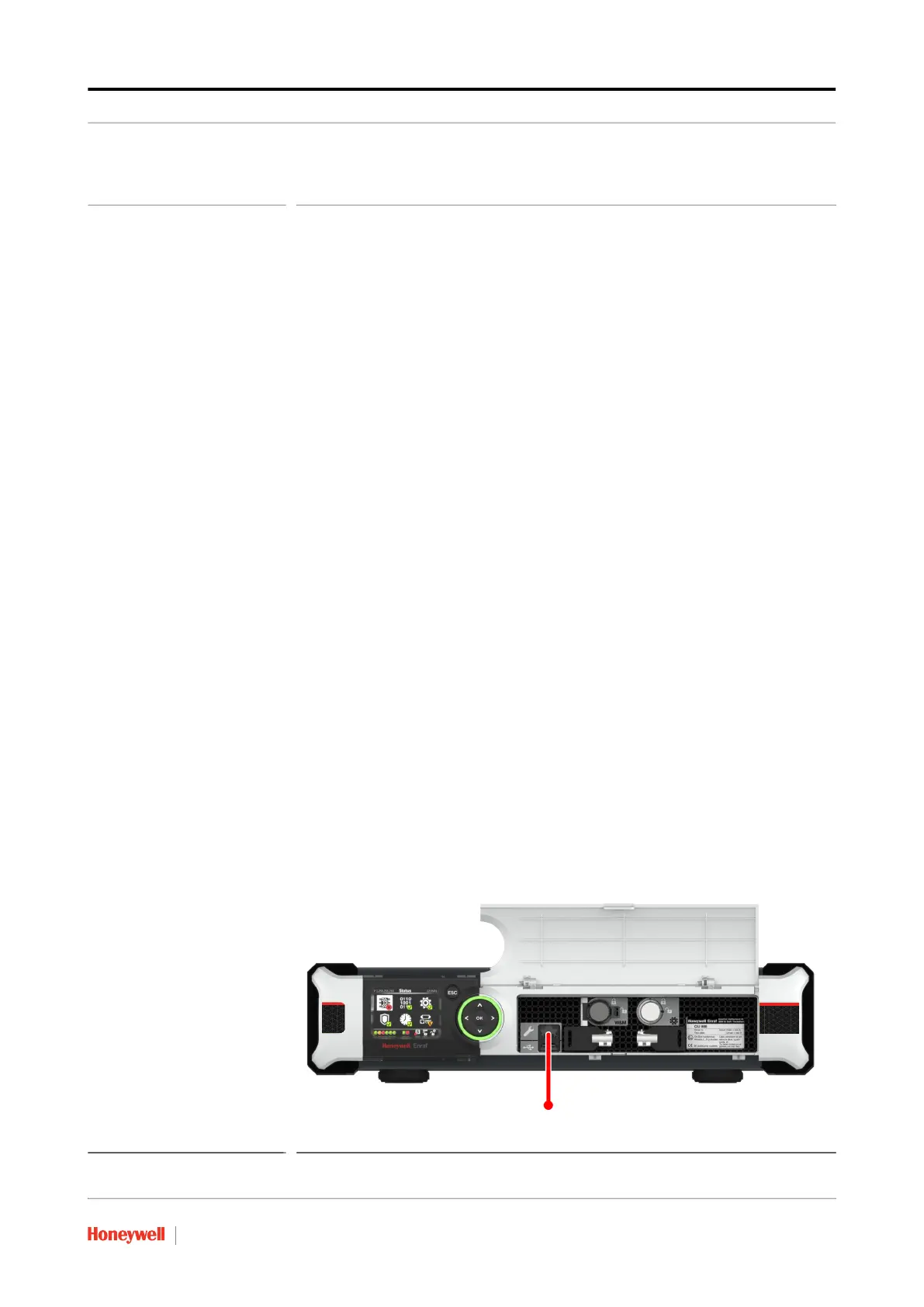

FIGURE 2-1 CIU 888: Service port
