Part No.: 4417593_Rev09 Ensite Pro to CIU 888 Migration Manual
CIU 888 A - 5
4. Click Additional settings....

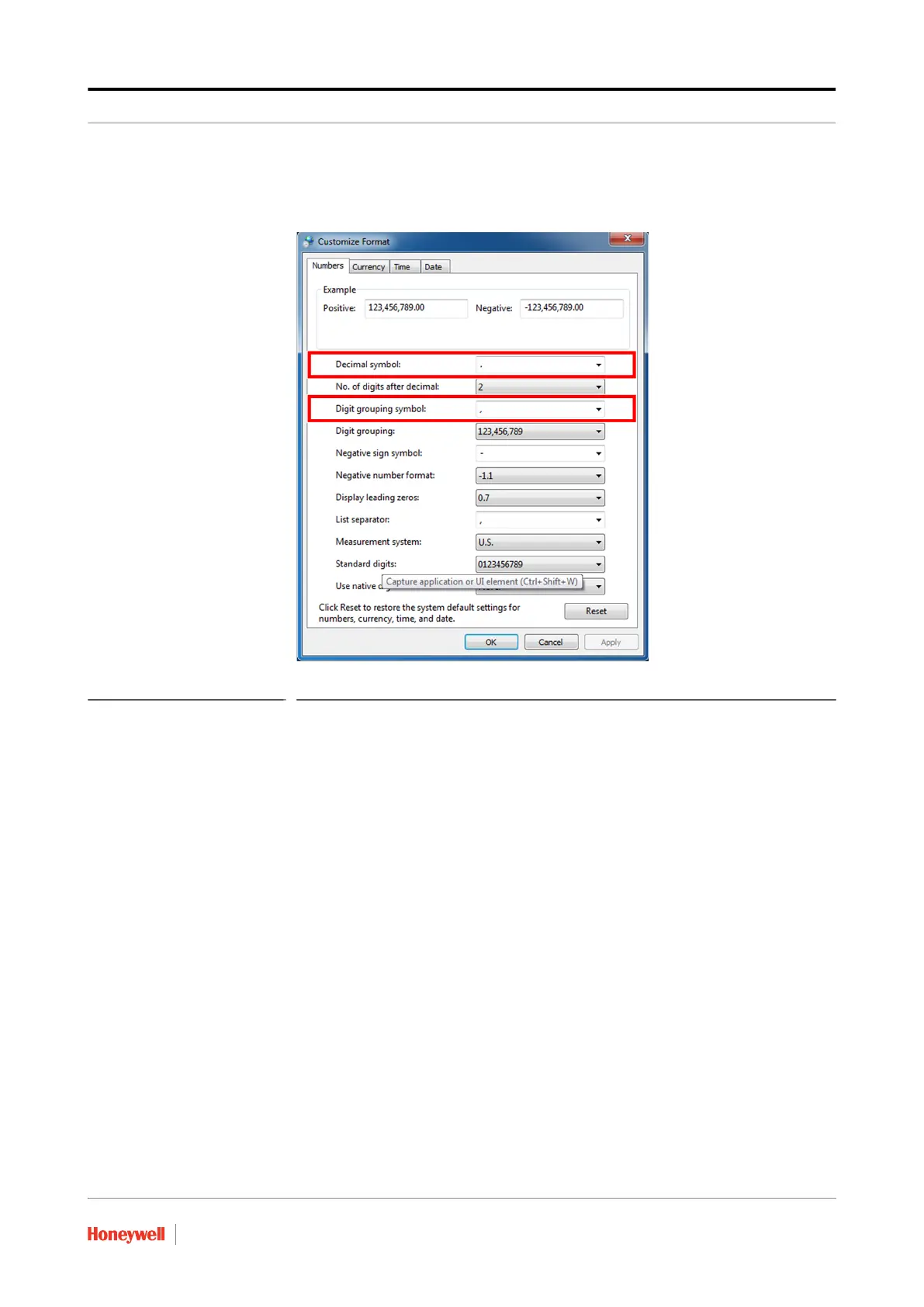

The Customize Format window is displayed (see FIGURE A-4).
FIGURE A-4 Customize Format window
5. From the list box next to ‘Decimal symbol:’ select the symbol to be
used as decimal separator.
6. From the list box next to ‘Digit grouping symbol:’ select the symbol to
be used as thousand separator.
7. Click OK to save the settings and to close the window.
A.2.2 Time stamped data
Measured and calculated data is accompanied with a time stamp with
the same resolution as the time stamp configured in the CIU 880.
See section A.2.3 for more information about time resolutions.
A.2.3 Date and time presentation
A.2.3.1 Date
Dates are always presented in ISO format, i.e. YYY-MM-DD, where:
YYYY = the year (all digits)
MM = the month (01 (January) to 12 (December))
DD = the day (01 to 31)
