Commissioning of a Redundant System Setup
Ensite Pro to CIU 888 Migration Manual Part No.: 4417593_Rev09
3 - 8 CIU 888
configuration of primary CIU Prime host port 2, with the exception of the RTU
address which must be unique.

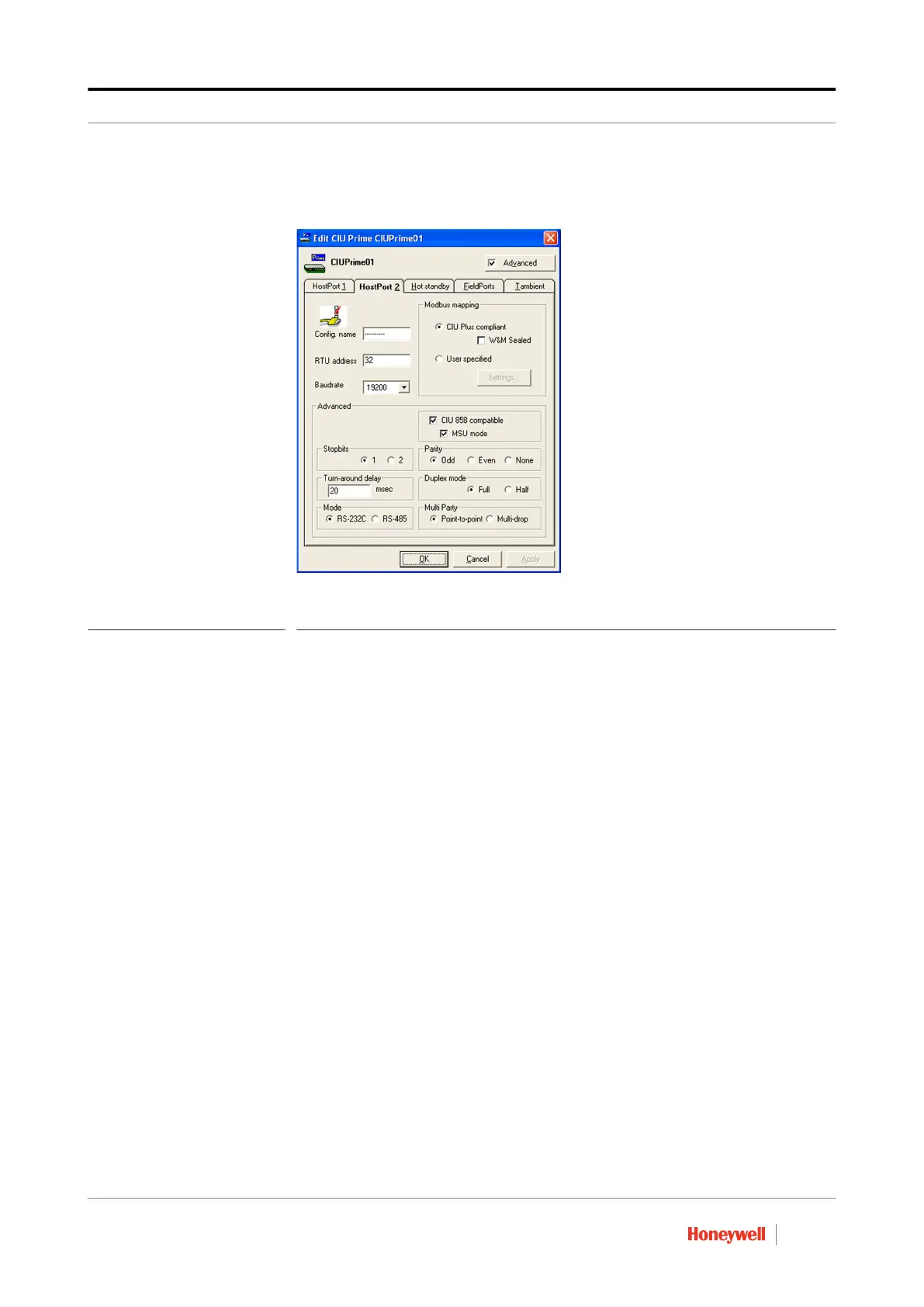

FIGURE 3-6 Ensite Pro: Edit CIU Prime window - CIU emulation enabled
NOTE: Refer to the Protocol Manual - CIU Emulation (Part No. 4417589) for more
information about CIU Emulation.
3.3.3 Setting up a site configuration for a redundant CIU 888 system setup
Since the procedure for setting up the site configuration for a redundant
system setup is similar to the procedure for setting up the site
configuration for a standalone system setup, this section focuses on the
changes that need to be made when setting up the site configuration of
a redundant system setup.
NOTE: Refer to the Instruction manual Ensite Pro Configuration Tool version 3.0 (Part
No. 4416593) for detailed information about setting up a site configuration
using Ensite Pro.
The site configuration for a redundant system setup contains two
CIU Primes: a primary CIU Prime and a secondary CIU Prime. The
configuration settings of both CIU Primes must be the same with the
exception of the RTU addresses of the configured host ports. These
must be unique.
