Commissioning of a Redundant System Setup
Part No.: 4417593_Rev09 Ensite Pro to CIU 888 Migration Manual
CIU 888 3 - 3
the front of the CIU 888 (see FIGURE 3-2). See CHAPTER 1 for
more information about the CIU 888 Configuration System.

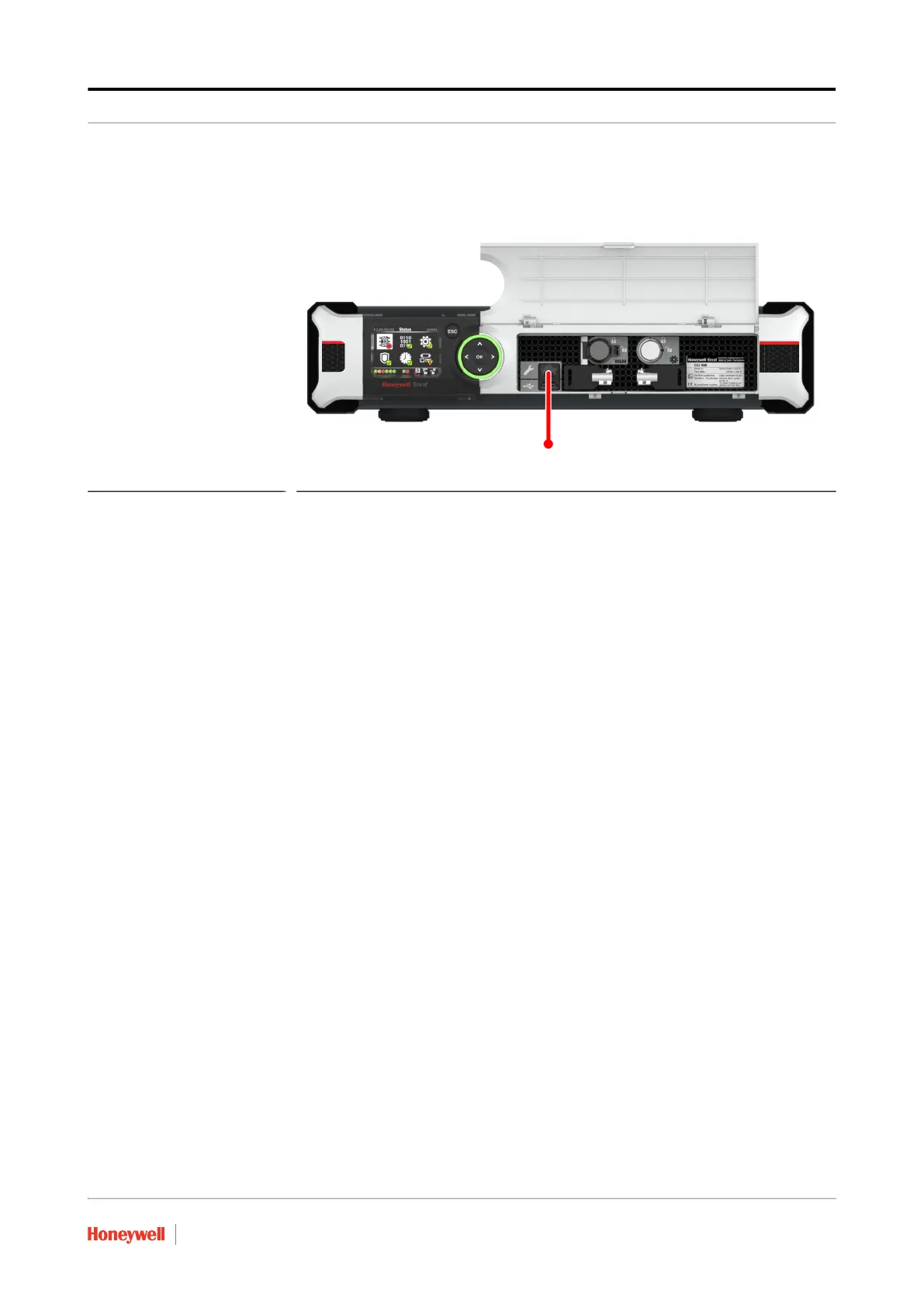

FIGURE 3-2 CIU 888: Service port
During commissioning of the CIU 888s, the Entis Pro system(s)
connected to the CIU 888s must be shut down.
3.2 Running the initial setup of the primary CIU 888
The first step in the procedure for the commissioning of a redundant
CIU 888 system setup is running the initial setup of the primary
CIU 888. See section 2.2 for more information.
3.3 Setting up the site configuration and generating INI files
When the initial setup of the primary CIU 888 is completed, the next
step is to set up the site configuration using Ensite Pro. The site
configuration can be set up either by:
Creating a new site configuration
or
Copying an existing CIU 880 site configuration and implementing the
required changes so that the site configuration meets one of the
supported topologies of deployment. The supported topologies are
described in section 3.3.1.
3.3.1 Supported topologies of deployment
In case of setting up a site configuration for a redundant system setup,
the following topologies of deployment are supported:
Two pairs of CIU Plus and CIU Prime in a redundant setup, both
pairs connected to one and the same host system (i.e. Ensite Pro),
section 3.3.1.1
