Installation SmartRadar FlexLine
Installation Guide Part No.: 4417.760_Rev06
20

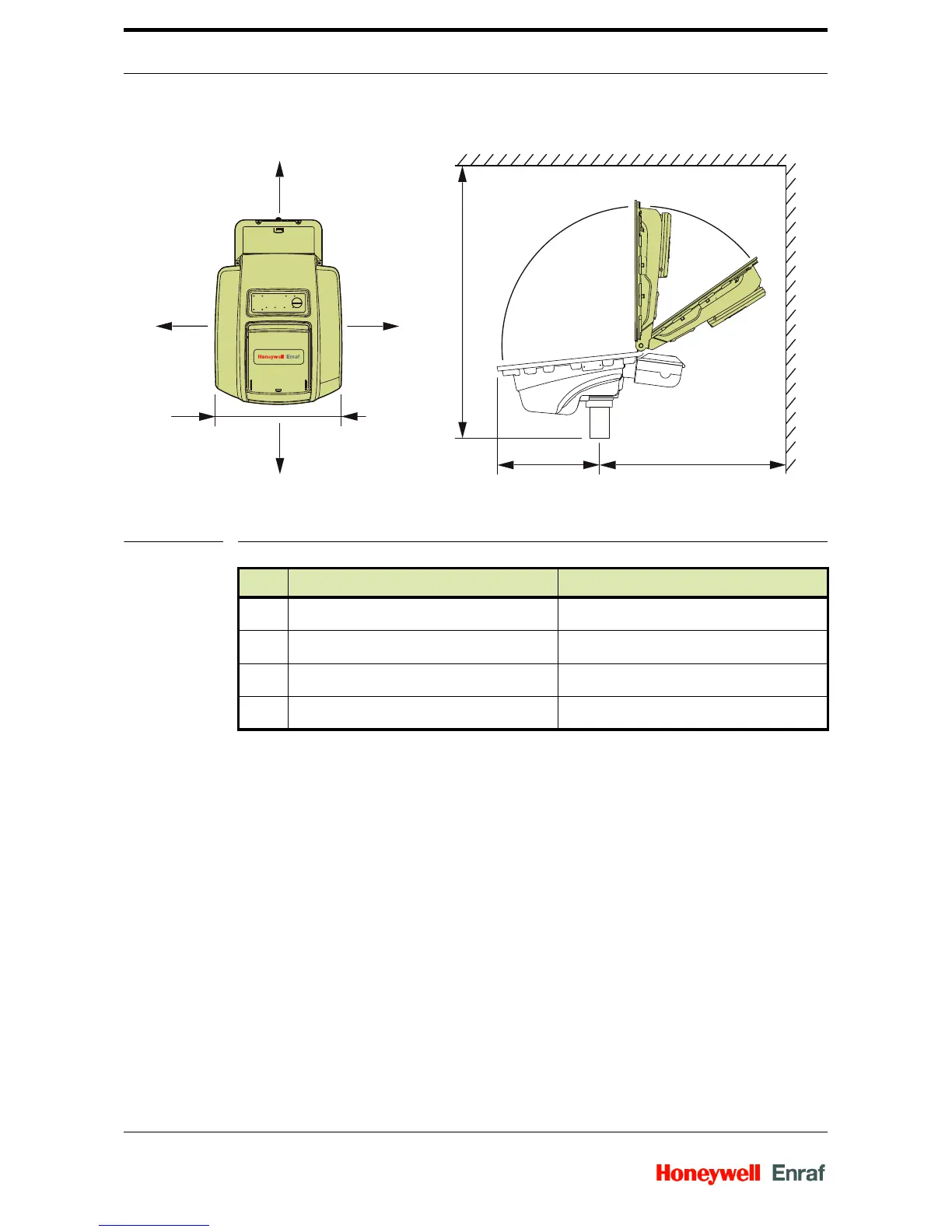

FIG. 4-1 Distances to installed device (see table below)
Device weight = 16.3 kg (36 lbs)
4.5 Installation Overview
Installation of the SmartRadar requires the following steps:
1 Mechanical installation of the device on the tank separator.
2 Preparations for connection
3 Installing the compound glands and conduits
4 Electrical connection
5 Finishing installation
These steps are further explained in the following sections.
mm inches
A 550 21.7
B 260 10.2
C 430 16.9
D300 11.8
