Installation SmartRadar FlexLine
Part No.: 4417.760_Rev06 Installation Guide
35
4.11.3.4 Host Communication EIA 232
4.11.3.4.1 Topology
EIA 232 Host communication is for point-to-point
communication. One gauge can be connected per host.

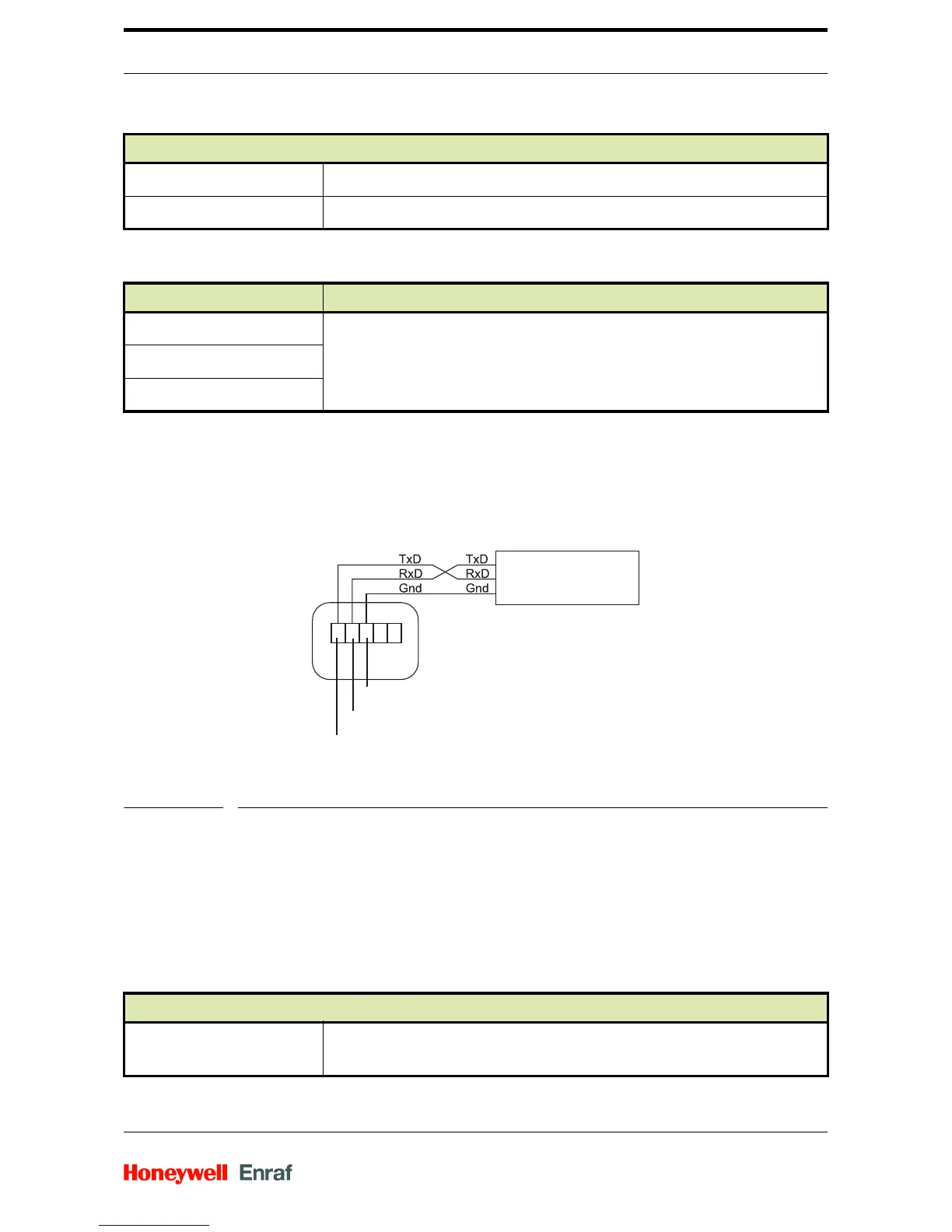

FIG. 4-10 EIA 232 topology
4.11.3.5 Hardware Relay Outputs (FII-DO)
The hardware relay outputs can be used as an alarm signal or to
operate a remote device.
The signals corresponding with the terminal labels are
programmed during commissioning.
Cable specifications
Type Shielded
Maximum length 15 meter
Label Parameters
08. 232RX 38k4/19k2/9k6/4k8/2k4/1k2 bps
Selection by software
09. 232TX
10. GND_ISO
Cable specifications
Type Approved for use in hazardous areas and suitable for the specified
power rating.
08. 232RX
09. 232TX
10. GND_ISO
EIA 232 Field Bus
To Next Page
