Honeywell Enraf SmartRadar FlexLine User Manual

Installation SmartRadar FlexLine
Installation Guide Part No.: 4417.760_Rev06
32

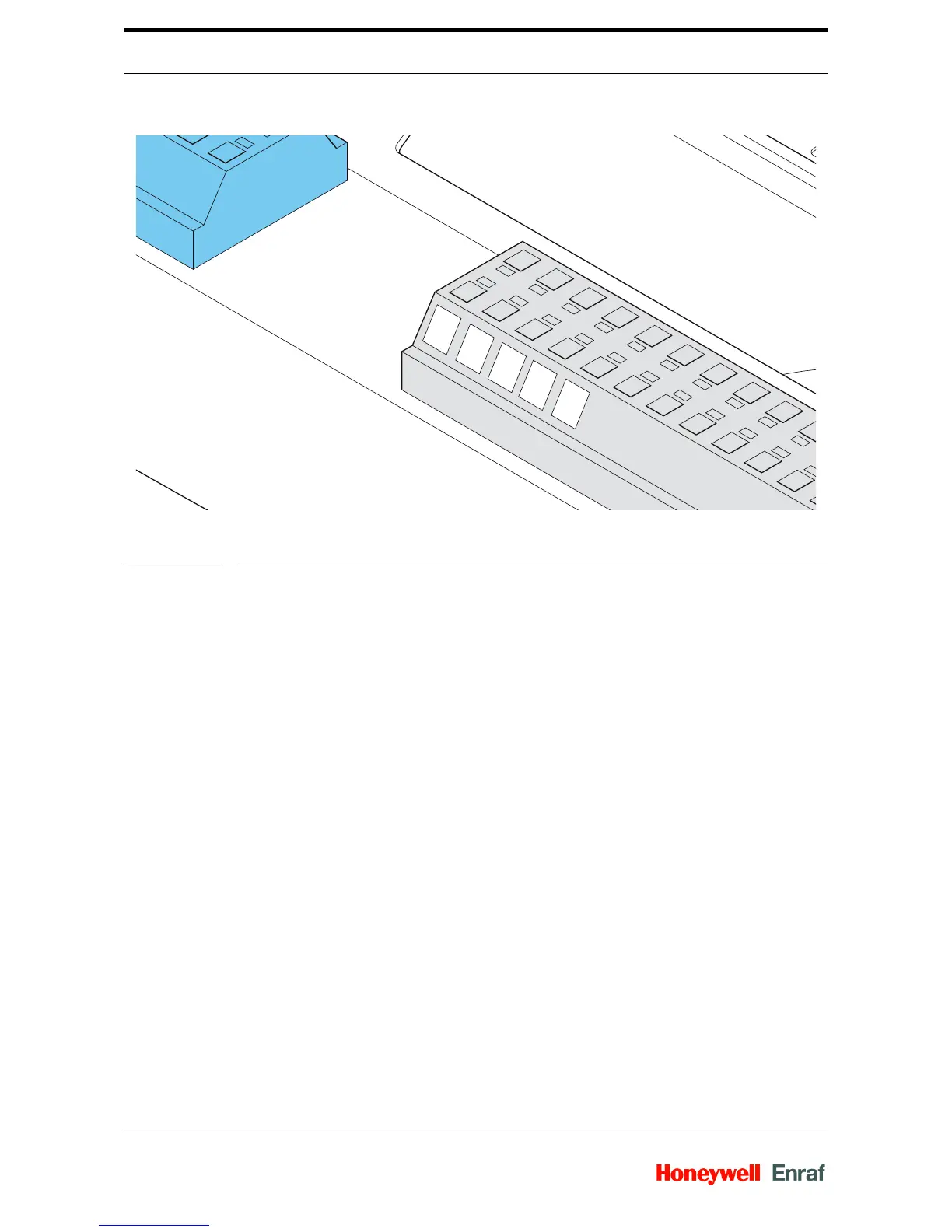

FIG. 4-8 Terminal labelling
4.11.2.4 General Procedure
 Connect the wiring to the terminals with the numbers as
shown in the tables in the following sections.
4.11.3 Non-intrinsically Safe Connections
The non-intrinsically safe connections are connected to the grey
wiring terminal.
If local and or national regulations allow, the power supply, Enraf
fieldbus, and hardware relay outputs may be combined into one,
unshielded, cable.
A separate cable may also be used for each.
4.11.3.1 Power Supply
 Connect the power supply to either:
• DC: 24 - 65 Volt
• AC: 65 - 240 Volt
18
17
16
15
14
