Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 37
6.4 Manual call point - small design
The MCP in red housing with the "burning house" symbol is used as a manual call point for the manual activation
of a fire alarm/an emergency alarm in dry workplaces that are not in danger of explosion. The detector is available
for other uses and areas, and also comes in various designs, e.g. different housing colours and with different
printed inserts.
The different coloured housings can be combined with the associated electronics modules.

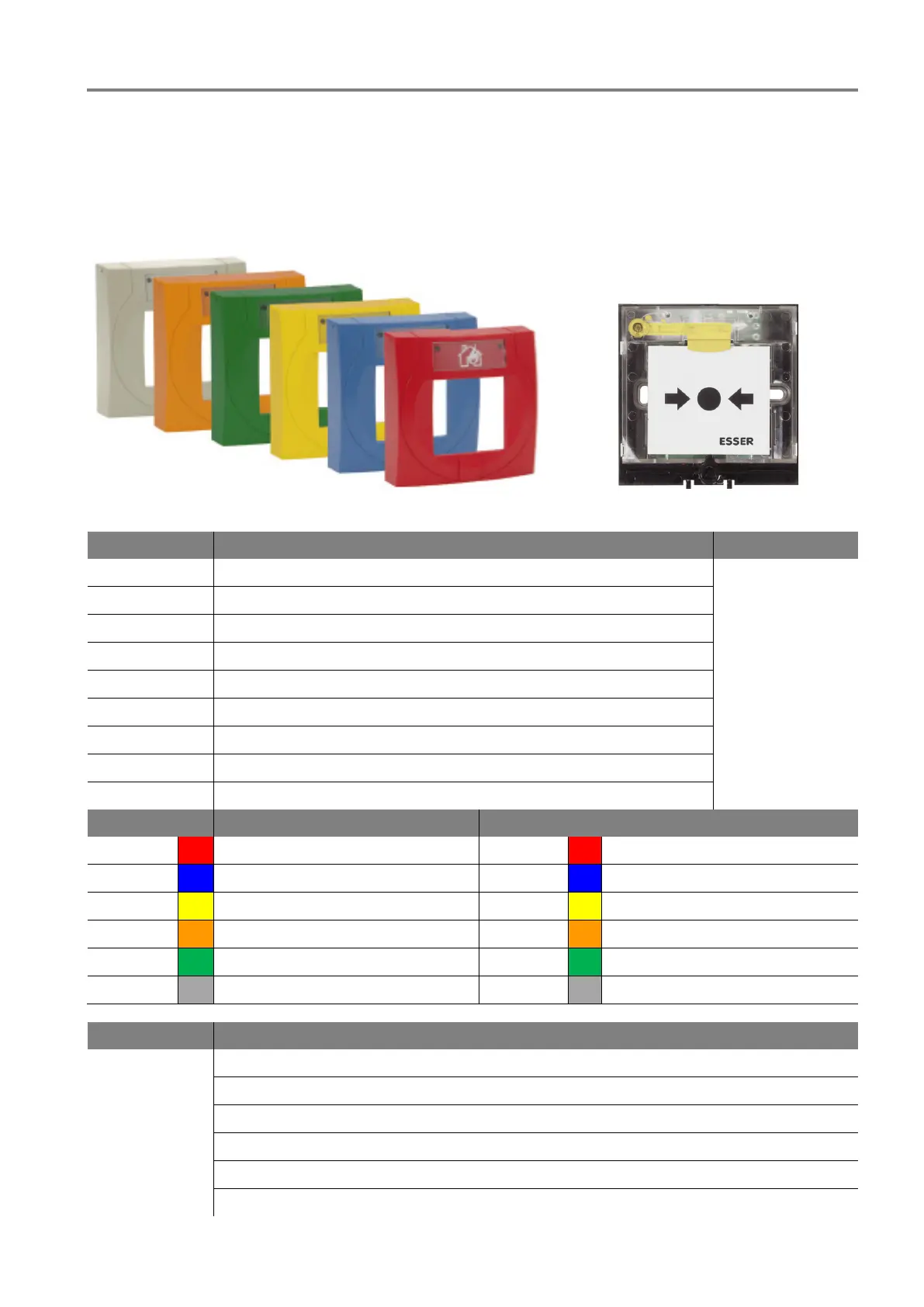

Fig. 23: Manual call point - small design
Part No. Description Approval
804970 Standard MCP, red with glass pane
VdS approval
804960 Standard MCP, IP66, red with glass pane
804971 IQ8MCP, red with glass pane
804973 IQ8MCP, red with plastic triggering element
804961 IQ8MCP, IP66 / 67, red with glass pane
804950 Standard MCP electronic module
804951 Standard MCP electronic module with 2
nd
micro-switch
804955 IQ8MCP electronic module
804956 IQ8MCP electronic module w/o isolator, with relay
Detector housing - small design Surface mount housing,
704950 red (similar to RAL 3020) 704980 red (similar to RAL 3020)
704951 blue (similar to RAL 5015) 704981 blue (similar to RAL 5015)
704952 yellow (similar to RAL 1021) 704982 yellow (similar to RAL 1021)
704953 orange (similar to RAL 2011) 704983 orange (similar to RAL 2011)
704954 green (similar to RAL 6002) 704984 green (similar to RAL 6002)
704955 grey (similar to RAL 7035) 704985 grey (similar to RAL 7035)
Accessories
704960 Spare glass pane (pack of 10)
704961 Front foil with universal text, white lettering (pack of 10)
704964 Resettable, plastic element, white (pack of 10)
704965 Protective kit for MCP and TAL to prevent inadvertent activation
704966 Plastic spare key (pack of 10)
704967 Mounting frame for small MCP, incl. cover plate red and white (132 x 132 x 8 mm)
