12.10 IQ8FCT (Part No. 804867)
Like the IQ8TAL, the IQ8FCT is an esserbus
®
transponder with a contact input and a potential-free relay output.
For controlling and monitoring fire control systems, such as fire dampers. Programmable runtime monitoring is
used to check that fire dampers are closed at the correct time and that this is transmitted to the FACP.
Features
• Can be configured using service and programming software
tools 8000
• Impulsive triggering of relay output
• Runtime monitoring for activation of fire dampers
• Relay output NO / NC
• Impulse length for relay activation (for time-limited activation)
• Feedback input for monitoring fire control systems

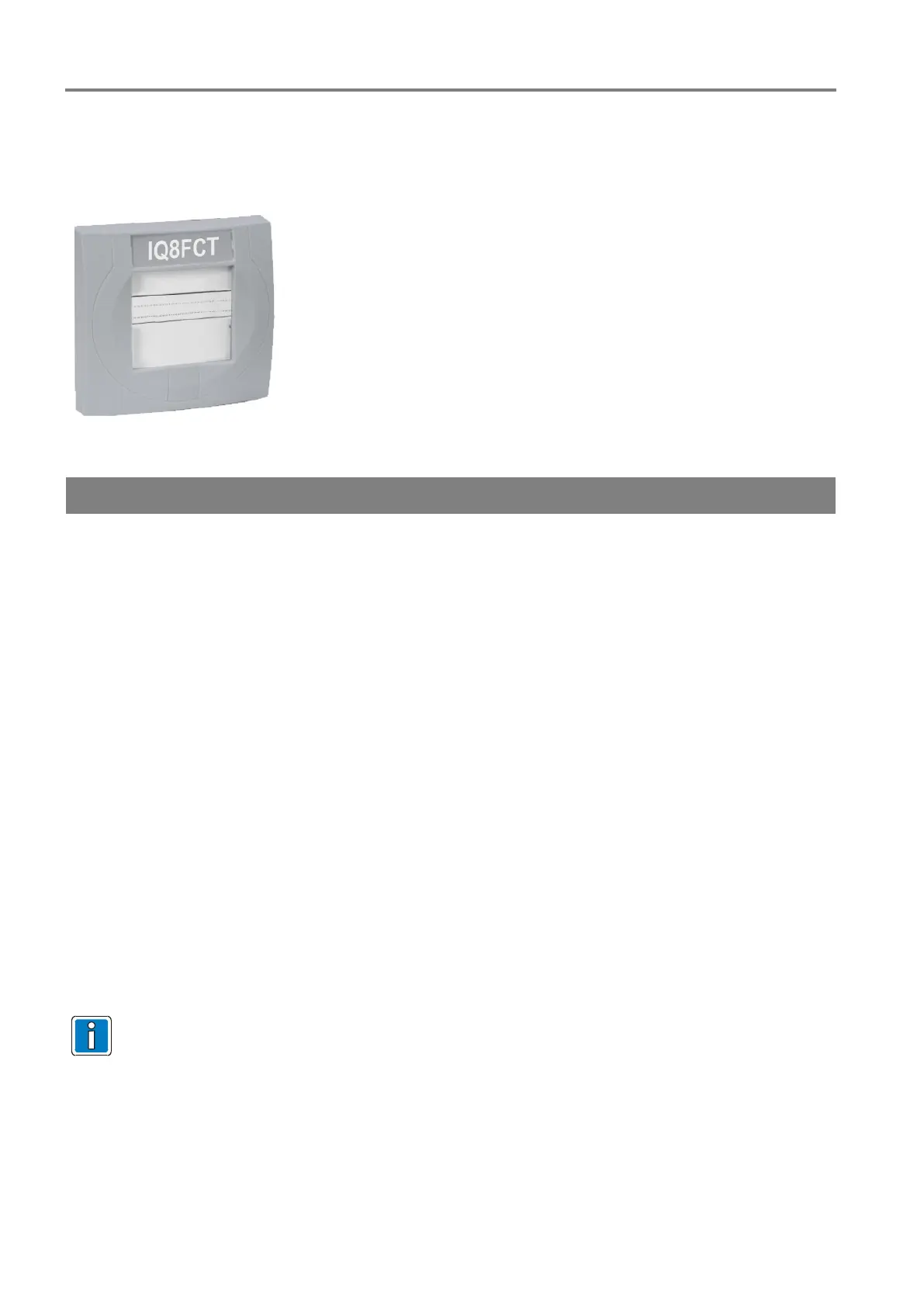

Fig. 56: IQ8FCT
Specifications
Power supply : 8 V DC … 42 V DC
Quiescent current : approx. 45 µA @ 19 V DC
Alarm current : approx. 9 mA @ 19 V DC, pulsed
No. of call points
:
max. 127 IQ8FCT per loop
Alarm indicator : red LED and yellow tab
Operation indicator : green LED
Connection terminals : max. 1,5 mm² (AWG 30-14)
Application temperature
:
-20 °C … +70 °C
Storage temperature : -30 °C … +75 °C
Protection rating
:
IP 43 (in housing)
: IP 55 (with option)
Housing : PC/ASA plastic
Colour : grey (similar RAL 7035)
Weight
:
approx. 110 g
Housing dimensions (w x h x d) : 88 x 88 x 27 (mm)
Dimensions with back box : 88 x 88 x 63 (mm)
Specification : EN 54-17 : 2005 / -18 : 2005
VdS approval
:
G 20138
Declaration of Performance : DoP-20792130701
For further information and accessories refer to product catalogue and documentation of the devices.
