Honeywell ESSER FACP User Manual

Periphery components for ESSER FACP
80 TI 798960.GB0 / 04.20
12.2 esserbus
®
transponder for UniVario (Part No. 808623.10)
The transponder enables the connection of max. 2 industrial detectors of the UniVario product family as
components of the loop.
These detectors are supplied with energy via the 9 V DC group voltage input. For meeting the standard
requirements of monitoring, an EOL-UV terminal element is connected to the detector base of the UniVario
detector. Der Koppler benötigt eine externe Spannungsversorgung. An optional Voltage Converter
(Part No. 781336) is also required for 12 V DC operation.
Furthermore, two optionally monitored relay outputs are available.
Features
• Suitable for connecting industrial detectors of the UniVario product
family
• Integrated loop isolator
• Loop monitoring acc. EN 54-13

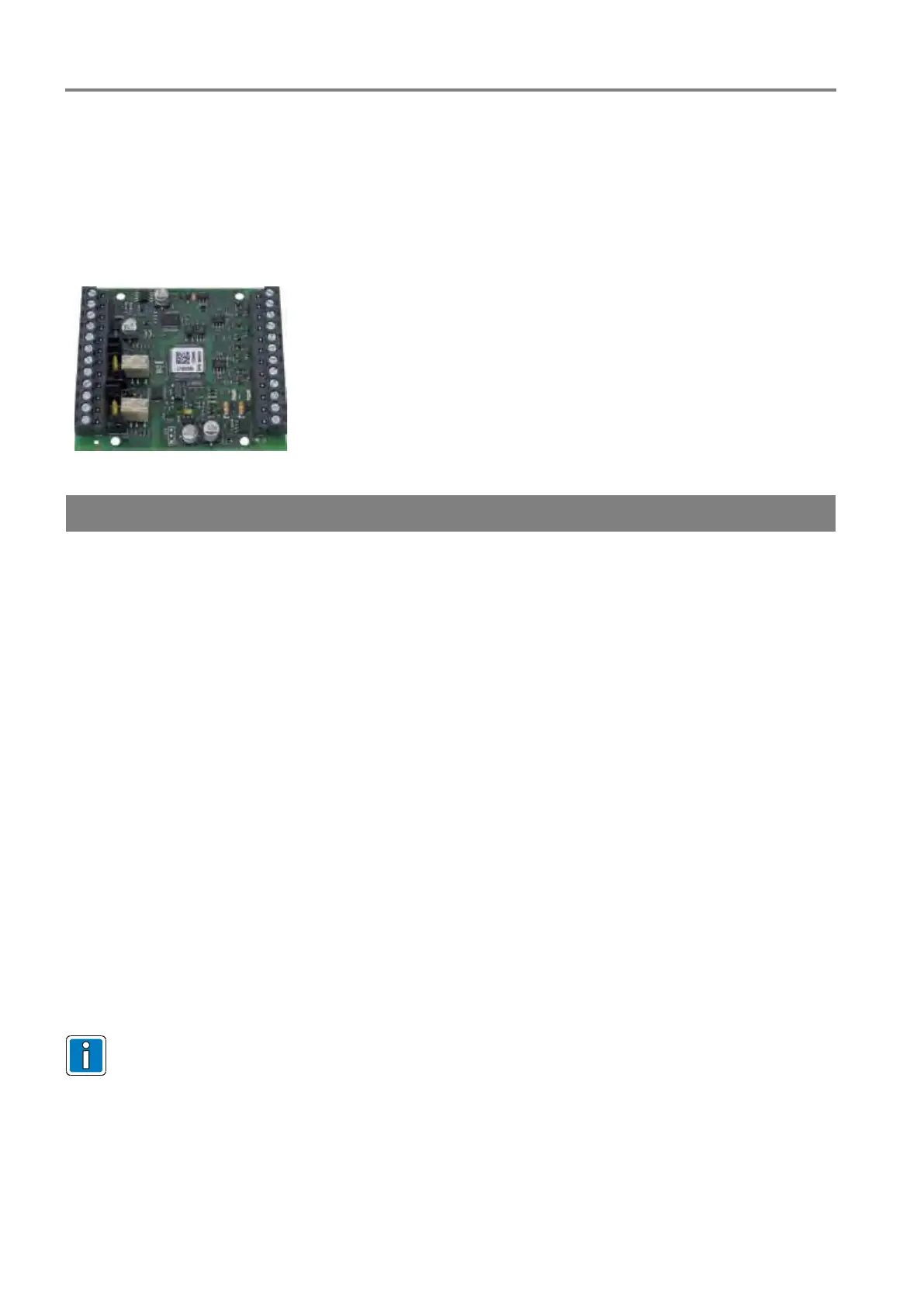

Fig. 48: esserbus
®
transponder for UniVario
Specifications
Loop
Rated voltage
:
8 V DC ... 42 V DC
Current consumption
:
approx. 90 µA @ 19 V DC
External power supply
Operating voltage
:
10 V DC … 28 V DC
Current consumption
:
max. 120 mA @ 12 V DC
Quiescent current
:
approx. 12 mA @ 12 V DC
Input
Current consumption
:
max. 25 mA @ 9 V DC
Length of connection cable
:
max. 100 m
Monitoring
:
EOL-UV
Relays
Contact rating
:
30 V DC / 20 mA
Monitoring
:
EOL-O or 10 kΩ / ±40%
Ambient temperature
:
-10 °C … +50 °C
Storage temperature
:
-25 °C … +75 °C
Rel. humidity
:
≤ 95% (no condensation)
Protection rating
:
IP 40 (with housing)
Weight
:
approx. 28 g
Dimensions (w x h x d)
:
82 x 72 x 20 (mm)
Specification
:
EN 54 - 17 : 2005 / - 18 : 2005
VdS approval
:
G 210020
Declaration of Performance (808623.10)
:
DoP-20611130701
(808623.10.NU)
:
DoP-20947130701
For further information and accessories refer to product catalogue and documentation of the devices.
