Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 79
12.1 esserbus
®
alarm transponder (Part No. 808623)
As a loop device on the loop, the esserbus
®
transponder enables the connection of automatic standard fire
detectors, manual call points (MCP) without addressing, and third-party detectors. In addition, two
programmable relay outputs are also available.
Monitoring via the EOL terminating devices (Part No. 808624 / 808626) is required for the connection of fire
detectors and for the controlling of alarm signaling devices. The enclosed resistors can be used to connect the
floating contacts.
The planning of the alarm devices that can be connected is carried out via a calculation tool, which is part of the
tools 8000 service and programming software.
The esserbus
®
alarm transponder requires an external voltage supply. These can be programmed in monitored
mode. An optional Voltage Converter (Part No. 781336) is also required for 12 V DC operation.
According to DIN VDE 0833-2, fire detectors from max. one detection area and alarm devices and tools from
one alarm area must be connected to one alarm transponder.
Features
• 4 detector zone inputs
• Conventional connection of standard fire detectors and signaling
devices
• Loop monitoring in compliance with EN 54-13
• Integrated loop isolator
• 2 programmable relay outputs
•
Programmable reset relay function

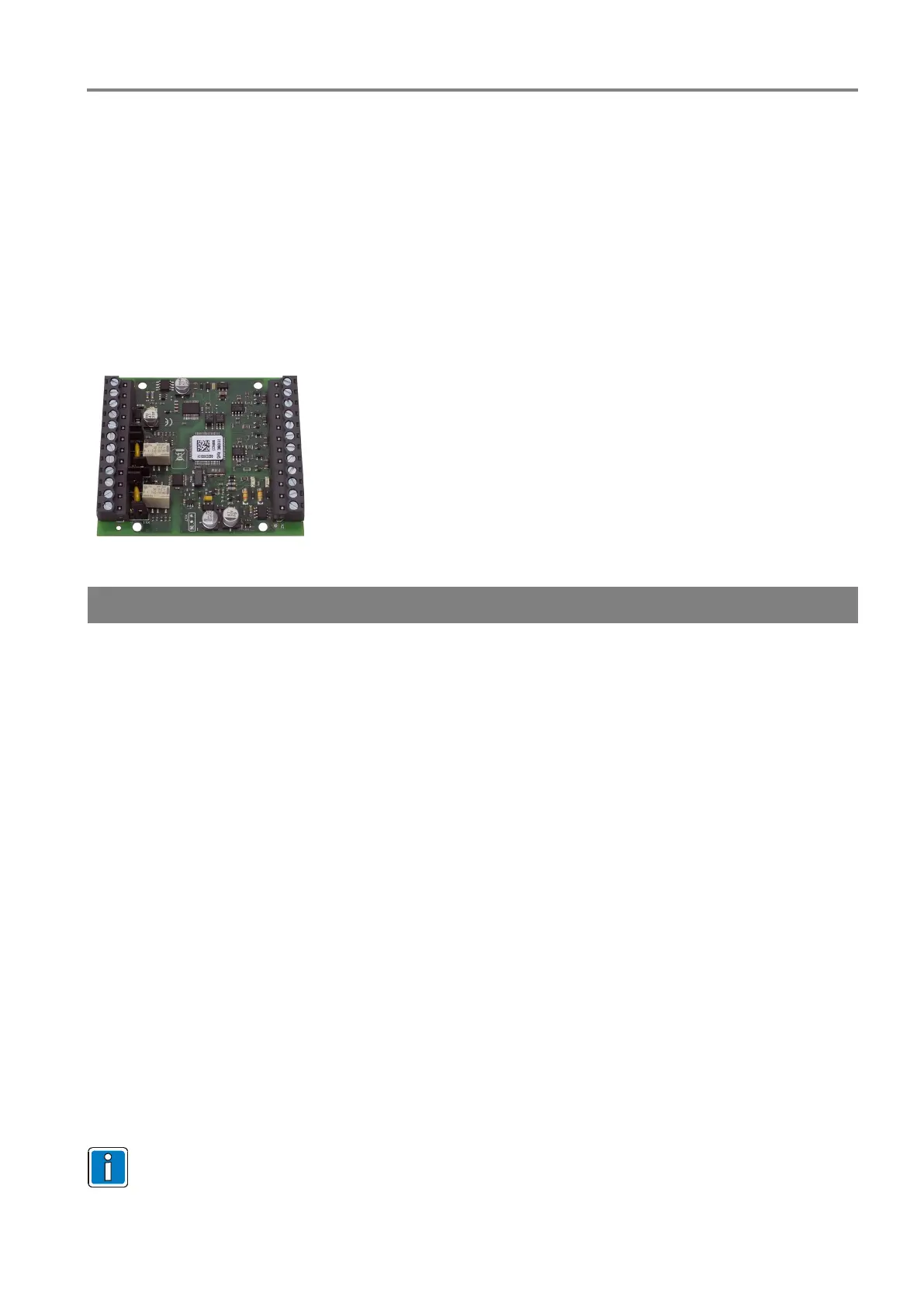

Fig. 47: esserbus
®
alarm transponder
Specifications
Loop
Rated voltage
:
8 V DC … 42 V DC
Rated current
:
approx. 90 µA @ 19 V DC
External power supply
Operating voltage
:
10 V DC … 28 V DC
Current consumption
:
max. 120 mA @ 12 V DC
Quiescent current
:
approx. 12 mA @ 12 V DC
Inputs
Current consumption
:
max. 25 mA @ 9 V DC
Length of connection cable
:
max. 1.000 m
Monitoring
:
EOL-I or 10 k
Ω
/ ±40%
Relays
Contact rating
:
max. 30 V DC / 1 A
Monitoring relay
:
EOL-O or 10 k
Ω
/ ±40%
Connection terminals
:
max. 1,5 mm² (AWG 30-14)
Ambient temperature
:
-10 °C … +50 °C
Storage temperature
:
-25 °C … +75 °C
Rel. humidity
:
≤ 95% (no condensation)
Protection rating
:
IP 40 (with housing)
Weight
:
approx. 28 g
Dimensions (w x h x d)
:
82 x 72 x 20 (mm)
Specification
:
EN 54-17 : 2005
VdS approval
:
G 210020
Declaration of Performance
:
DoP-21057130701
For further information and accessories refer to product catalogue and documentation of the devices.
