Honeywell ESSER FACP User Manual

Periphery components for ESSER FACP
84 TI 798960.GB0 / 04.20
12.6 esserbus
®
transponder SIE (Part No. 808613.30)
The esserbus
®
transponder Standard Interface Extinguishing (SIE) allows for the connection of extinguishing
agent control systems/extinguishing systems to the fire alarm system.
An external power supply of 12 V DC or 24 V DC can be connected to the esserbus
®
transponder.
For 12 V DC operation, the power converter (Part No. 781336) is required. The external power supply can be
configured to be monitored using the service and programming software tools 8000.
Features
• Only one loop address is needed per transponder
• Max. 100 transponders per FACP
• Max. 31 transponders per loop
• Max. 32 transponders per detector zone

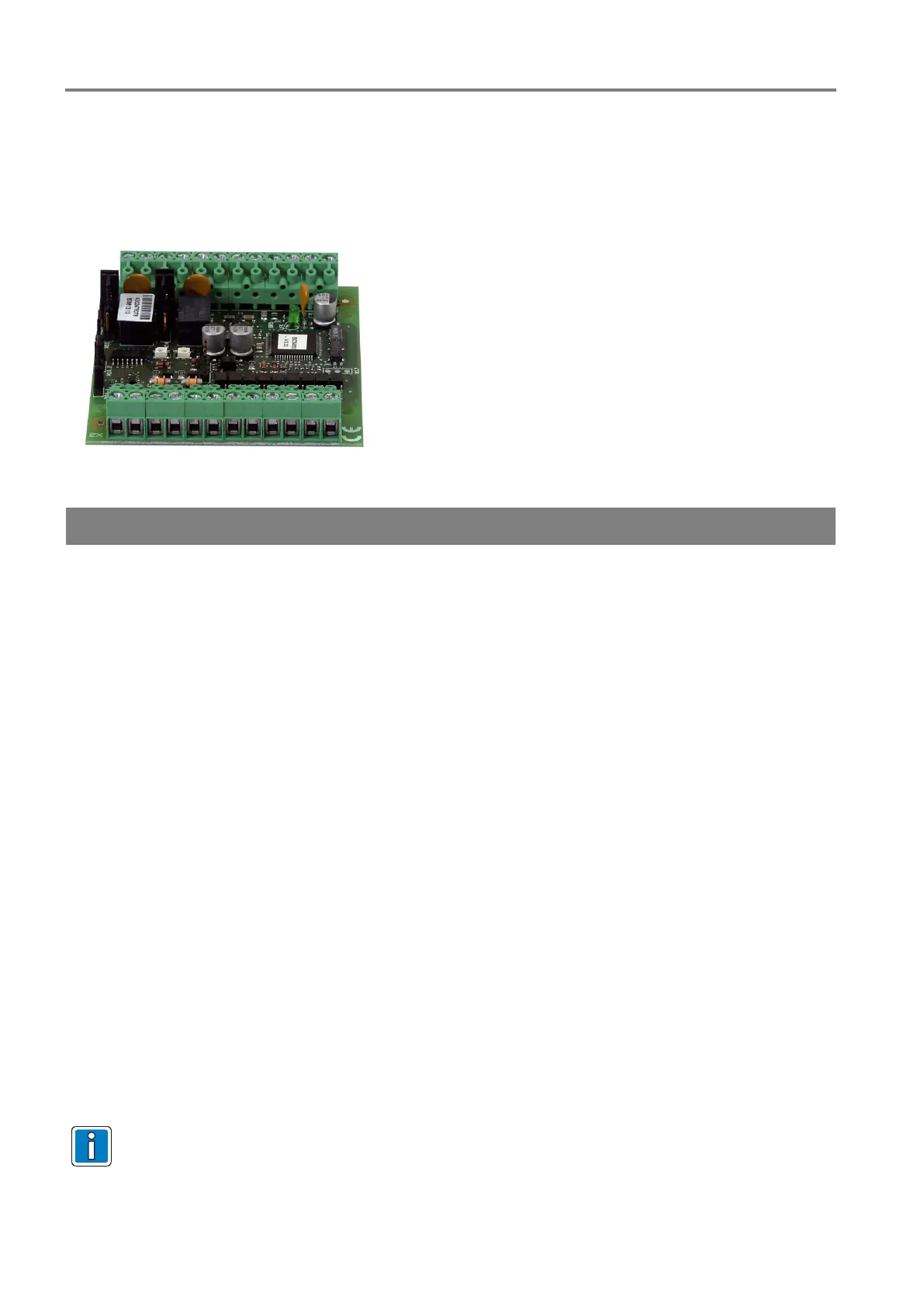

Fig. 52: esserbus
®
-Koppler SIE
Specifications
Loop
Rated voltage
:
19 V DC, max. 42 V DC
Current consumption
:
approx. 250
µA @ 19 V DC
External power supply
Operating voltage
:
10 V DC … 28 V DC
Current consumption
:
max. 120 mA @ 12 V DC
Quiescent current
:
approx. 10 mA @ 12 V DC
Zone inputs
Rated voltage
:
9 V DC
Current consumption
:
max. 25 mA
Length of
connection cable
:
max. 1.000 m
Relays
Contact rating
:
30 V DC / 1 A
Ambient temperature
:
-
10 °C … +50 °C
Storage temperature
:
-
25 °C … +75 °C
Humidity
:
≤
95% rel. humidity (no condensation)
Protection rating
:
IP 40 (in housing)
Weight
:
approx. 28 g
Dimensions (w x h x d)
:
82 x 72 x 20 (mm)
Specification
:
EN 54
-17:2005 / -18:2005
VdS
approval
:
G 206042
Declaration of Performance
:
DoP
-20614130701
For further information and accessories refer to product catalogue and documentation of the devices.
