Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 83
12.5 esserbus
®
transponder 32 LED (Part No.808611.10)
As a loop device on the loop, the esserbus
®
transponder enables the implementation of 32 outputs for direct
LED activation (e.g. for a panel). The outputs can be used with positive or negative switching. Service and
programming software tools 8000 is used for configuration.
The esserbus
®
transponder requires an external power supply. The external power supply can be programmed
in monitored mode.
The maximum line length from the transponder to the external device is up to 100 m.
There is also the option of operating the transponder with the loop isolator (Part No. 788612).
Features
• Only one loop address is needed per transponder
• Max. 100 transponders per FACP
• Max. 32 transponders per loop
• Max. 32 transponders per detector zone

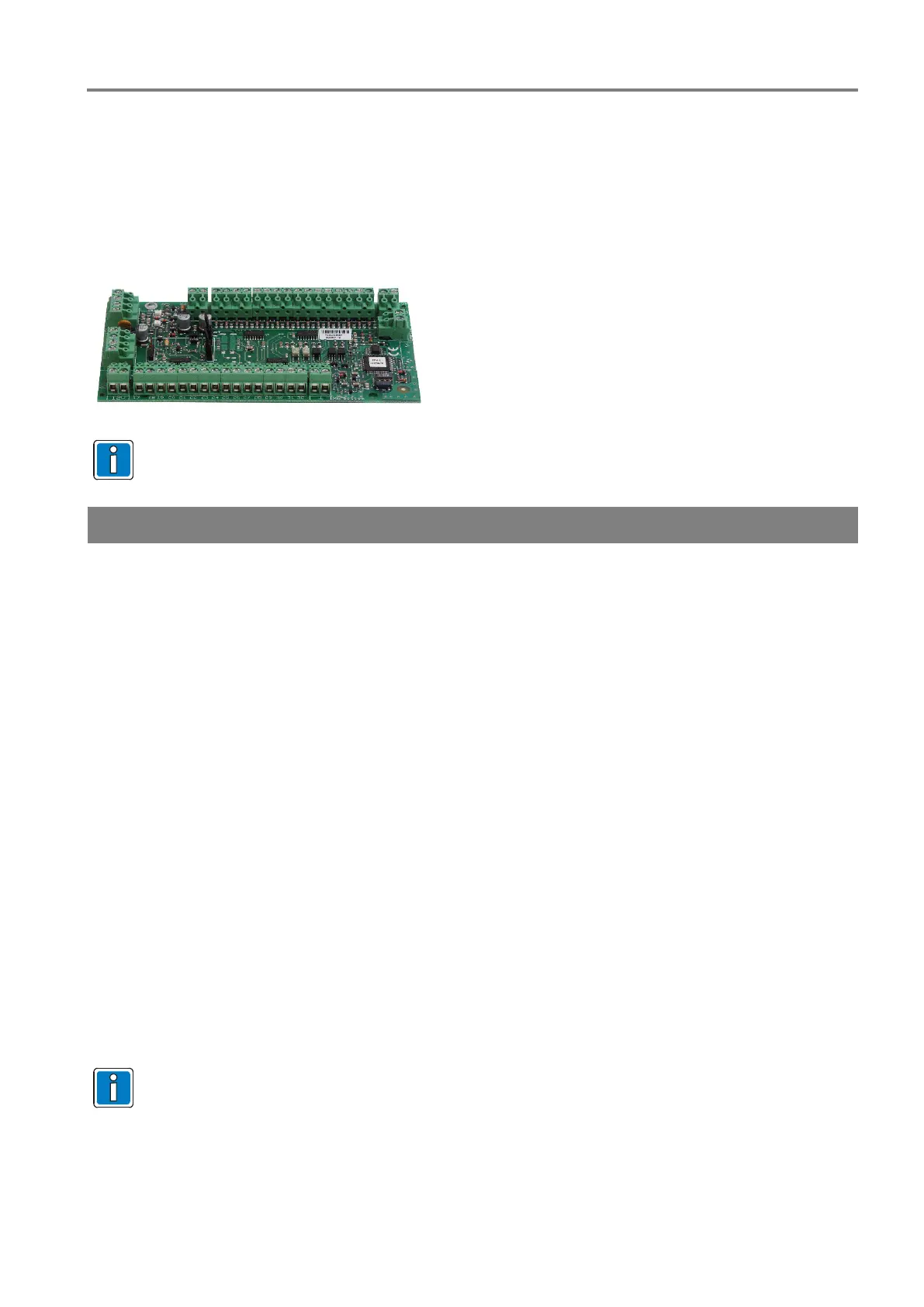

Fig. 51: esserbus
®
transponder 32 LED
Monitored control acc. to EN 54 is not possible. Operation on the FlexES Control or Compact FACP
only in conjunction with the power converter (Part No. 781336).
Specifications
Loop
Rated voltage
:
8 V DC … 42 V DC
Rated current
:
approx. 50 µA @ 19 V DC
External power supply
Operating voltage
:
10 V DC … 15 V DC
Quiescent Current
:
approx. 3 mA @ 12 V DC
LED outputs
Properties
:
12 V DC / 10 mA
Switching mode
:
plus/minus switching
Max. length of
connection cable
:
:
max. 100 m (Ri = 1 kΩ)
max. 3 m (Ri = 0 Ω)
Ambient temperature
:
-
10 °C … +50 °C
Storage temperature
:
-
25 °C … +75 °C
Humidity
:
≤
95 % rel. humidity (no condensation)
Protection rating
:
IP 40 (with housing)
Weight
:
approx. 95 g
Dimensions (w x h x d)
:
150 x 82 x 20 (mm)
Specification
:
EN 54 - 17:2005/-18:2005
VdS
approval
:
G 206044
Declaration of Performance
:
DoP
-20611130701
For further information and accessories refer to product catalogue and documentation of the devices.
