Honeywell ESSER FACP User Manual

Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 81
12.3 esserbus
®
transponder Special detector (SD) (Part No. 808623.40)
To connect special detectors and related reset functions with pre-alarm, fault and alarm assessment. The
transponder can be adapted to the different reset behaviours of the connected special detectors.
The inputs and outputs of the transponder can be connected with one another in such a way that switching on /
resetting a signalling input leads to short-term activation of the special detector’s reset input. In order to support
various special detectors, the transponder’s inputs can be programmed with a suppression time of up to
255 seconds when resetting.
Features
• 4 detector zone inputs
• Conventional connection of special detectors
• 2 programmable relay outputs for resetting the special detector with
flexible reset times
• Integrated loop isolator
• Loop monitoring acc. EN 54-13

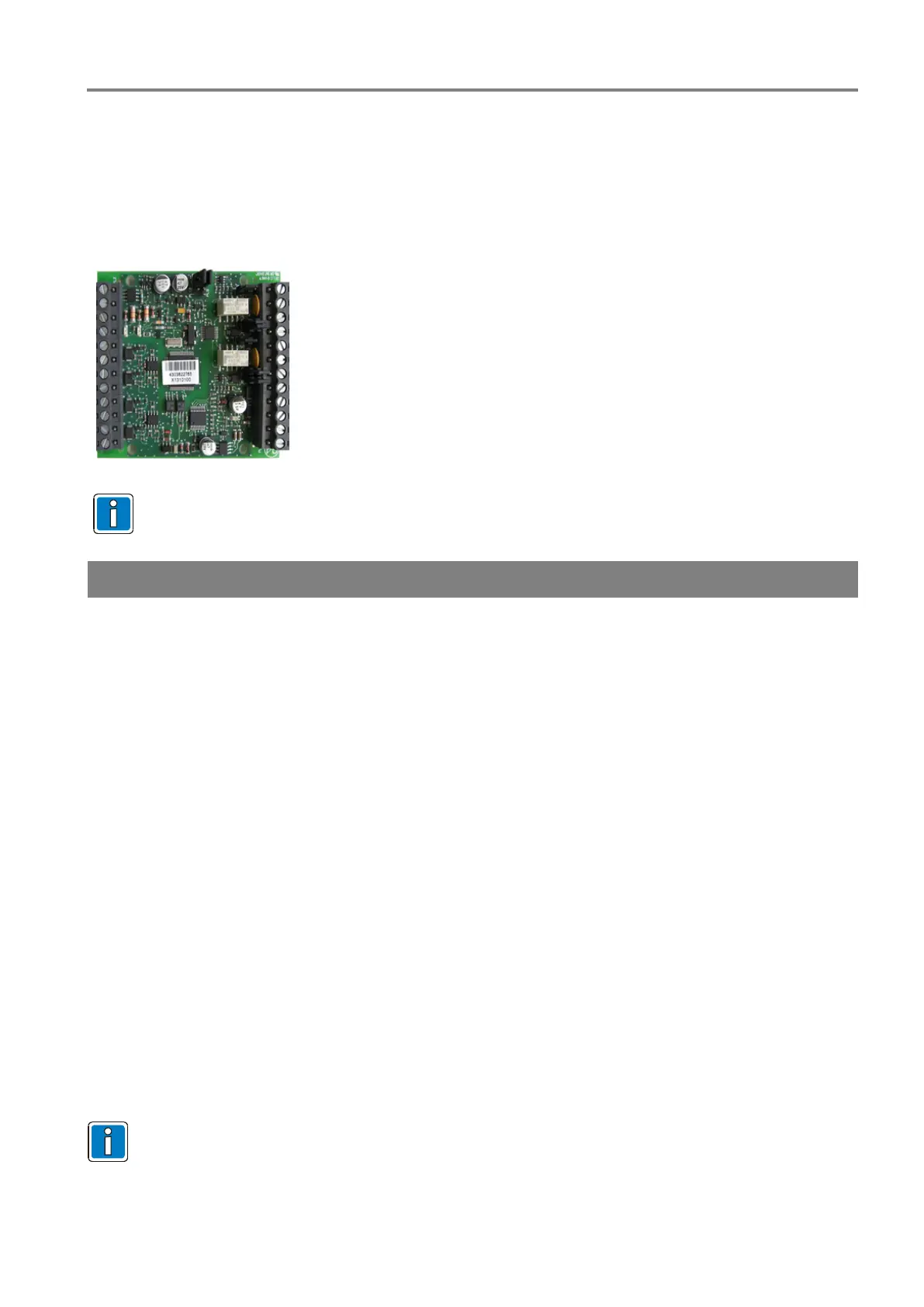

Fig. 49: esserbus
®
transponder for UniVario
The transponder can solely be operated with the abovementioned properties on the FlexES Control
FACP. On the IQ8Control and Compact FACP, the transponder behaves like an alarm transponder
(Part No. 808623).
Specifications
Loop
Rated voltage
:
8 V DC … 42 V DC
Rated current
:
approx. 90 µA @ 19 V DC
External power supply
Operating voltage
:
10 V DC … 28 V DC
Current consumption
:
max. 120 mA @ 12 V DC
Quiescent current
:
approx. 12 mA @ 12 V DC
Inputs
Current consumption
:
max. 25 mA @ 9 V DC
Length of connection cable
:
max. 1.000 m
Monitoring
:
EOL-
I
or 10 k
Ω
/ ±40%
Relays
Contact rating
:
max. 30 V DC / 1 A
monitoring relay
:
EOL-O or 10 k
Ω
/ ±40%
Connection terminals
:
max. 1,5 mm² (AWG 30-14)
Ambient temperature
:
-10 °C … +50 °C
Storage temperature
:
-25 °C … +75 °C
Rel. humidity
:
≤ 95% (no condensation)
Protection rating
:
IP 40 (with housing)
Weight:
:
approx. 28 g
Dimensions (w x h x d)
:
82 x 72 x 20 (mm)
Specification
:
EN 54-17 : 2005
VdS approval
:
G 210020
Declaration of Performance
:
DoP-21057130701
For further information and accessories refer to product catalogue and documentation of the devices.
