Honeywell ESSER FACP User Manual

Periphery components for ESSER FACP
40 TI 798960.GB0 / 04.20
6.6 Manual Call Points special design
6.6.1 Standard MCP Ex (i) and IQ8MCP Ex (i) for use in Ex areas
Conventional and addressable manual call points for use in Ex areas. These manual call points with "intrinsic
safety" ignition protection are operated over esserbus
®
transponders and Ex barrier (Part No. 764744) or
alternatively as a spur - exclusively IQ8MCP Ex (i) - directly with Ex barrier (Part No 804744) on the loop of the
ESSER fire alarm control panels.
General detector data according to ATEX
Standard MCP Ex (i)
804920.EX
804960.EX
IQ8MCP Ex (i)
804924.EX
804961.EX
Max. Input voltage (Ui) : 21 V DC
Max. Input current (Ii)
:
252 mA
Max. Output current (Io) : --- 10 mA
Max. internal Capacity (Ci)
:
---
1 nF
Ambient temperature (Ta) : - 20 °C … + 70 °C
Examination
Certificate No. : TÜV 14 ATEX 150860 TÜV 14 ATEX 150789
Category
:
II
2G (with Ex barrier Part No. 764744 / 804744)
Ex-protection : Ex ib IIC T4 Gb
Specification :
EN 60079-0:2012 +
A11:2013/ -11:2012
EN 60079-0:2012 +
A11:2013/ -11:2012/ -25:2010
Detector identification according to ATEX

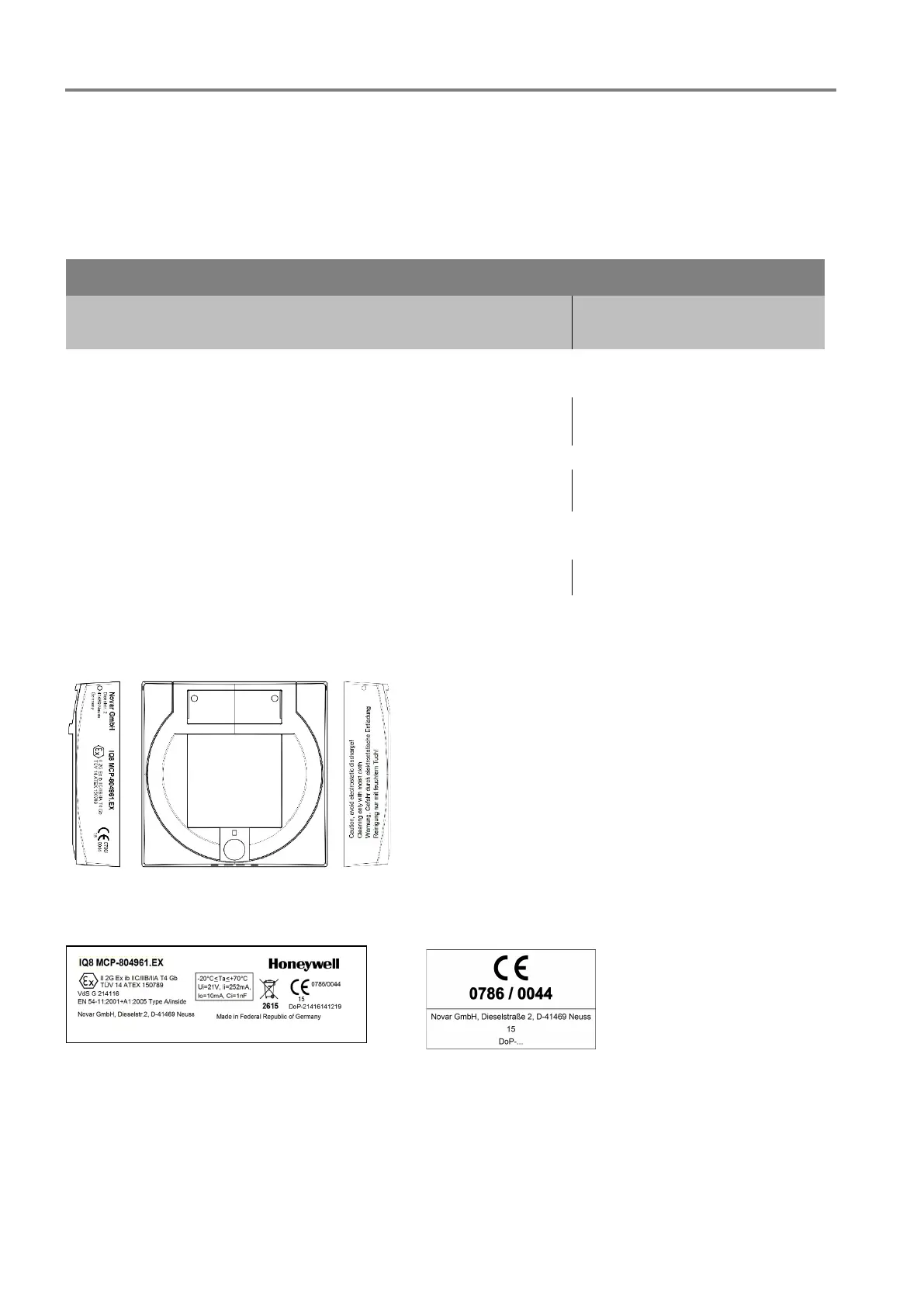

Fig. 26: Identification example  IQ8MCP Ex (i)
Fig. 27: Example identification plate IQ8MCP Ex (i) Fig. 28: EC-Type Examination acc.
Construction Products Regulation (CPR)
