the Minimum Message Length (MIN) is set to 2 characters;
the Maximum Message Length (MAX) is set to 60 characters;
and the Default setting (DFT) has no value.
Trigger Commands
You can activate and deactivate the scanner with serial trigger commands. First, the scanner must be put in Manual Trigger
Mode by scanning a Manual Trigger Mode bar code (page 3-5), or by sending a serial menu command for triggering (page 3-5).
Once the scanner is in serial trigger mode, the trigger is activated and deactivated by sending the following commands:
Activate: SYN T CR
Deactivate: SYN U CR
The scanner scans until a bar code has been read, until the deactivate command is sent, or until the serial time-out has been
reached (see "Read Time-Out" on page 3-6 for a description, and the serial command on page 11-8).

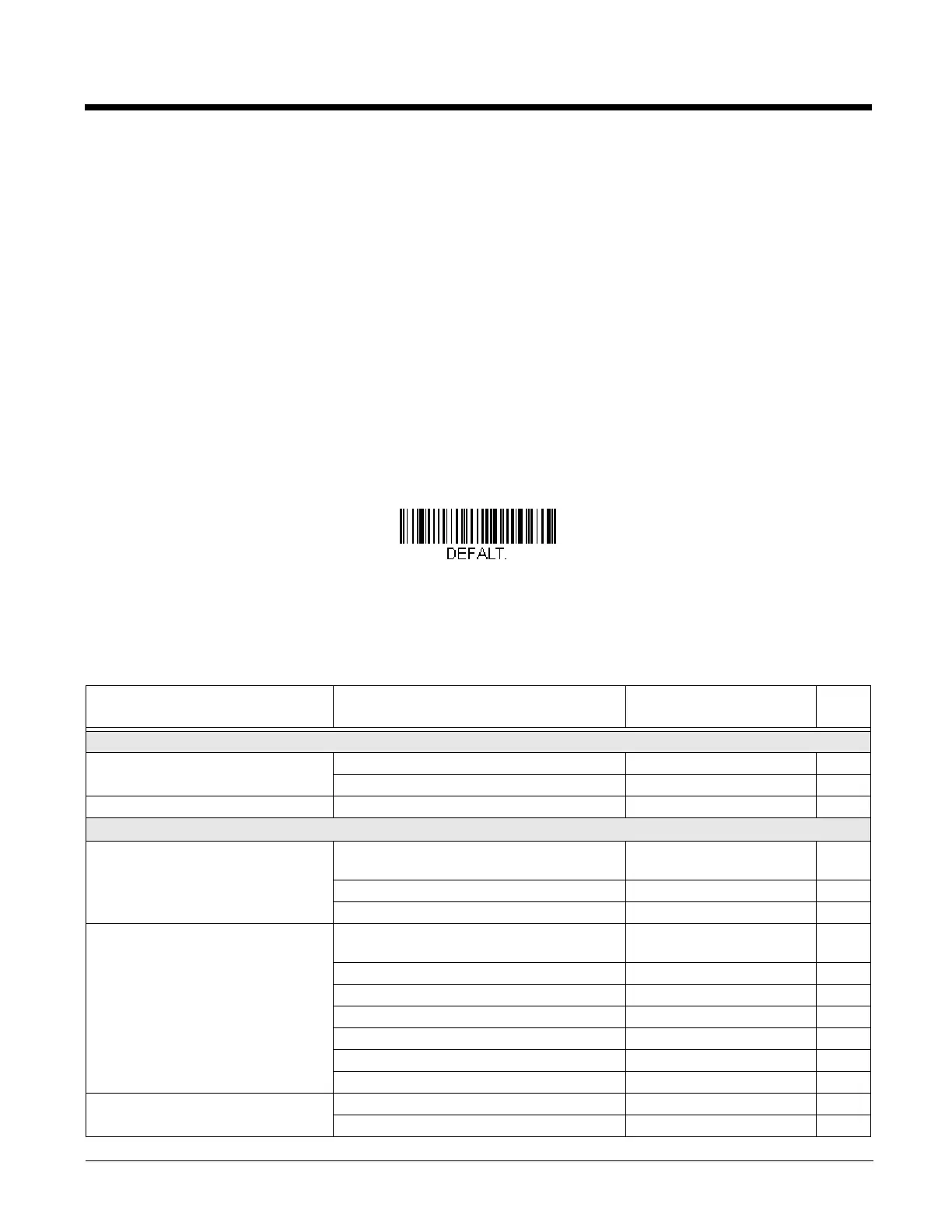

Resetting the Custom Defaults
If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This
resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default
settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings.
The charts on the following pages list the factory default settings for each of the commands (indicated by an asterisk (*) on the
programming pages).
Menu Commands
Selection
Setting
* Indicates default
Serial Command
# Indicates a numeric entry
Page
Product Default Settings
Setting Custom Defaults Set Custom Defaults MNUCDP 1-6
Save Custom Defaults MNUCDS 1-6
Resetting the Custom Defaults Activate Custom Defaults DEFALT 1-6
Programming the Interface
Plug and Play Codes Keyboard Wedge:
IBM PC AT and Compatibles with CR suffix
PAP_AT 2-1
Laptop Direct Connect with CR suffix PAPLTD 2-1
RS232 Serial Port PAP232 2-1
Plug and Play Codes:
RS485
IBM Port 5B Interface PAPP5B 2-2
IBM Port 9B HHBCR-1 Interface PAP9B1 2-2
IBM Port 17 Interface PAPP17 2-2
IBM Port 9B HHBCR-2 Interface PAP9B2 2-2
RS485 Packet Mode On RTLPDF1 2-2
RS485 Packet Mode Off RTLPDF0 2-2
RS485 Packet Length (20-256) RTLMPS 2-3
Plug and Play Codes: IBM SurePos USB IBM SurePos Handheld PAPSPH 2-3
USB IBM SurePos Tabletop PAPSPT 2-3
Activate Custom Defaults

Honeywell Genesis 7580G Specifications

General

Type	Fixed bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-70 - 70 °
Motion tolerance (cm/s)	200
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Product color	Black, Silver
Input voltage	5.5 V
Power consumption (standby)	0.5 W
Power consumption (typical)	2 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	80 mm
Width	83 mm
Height	150 mm
Weight	340 g
