Honeywell Genesis 7580G User Manual

3 - 9
CodeGate
®
When CodeGate is On, the trigger is used to allow decoded data to be transmitted to the host system. The scanner remains on,
scanning and decoding bar codes, but the bar code data is not transmitted until the trigger is pressed. When CodeGate is Off,
bar code data is transmitted when it is decoded. Default = CodeGate Off Out-of-Stand.
Streaming Presentation™ Mode
When in Streaming Presentation mode, the scanner’s aimer goes out after a short time, but the scan illumination remains on all
the time to continuously search for bar codes. Two modes are available, Normal and Enhanced. Normal mode offers good
scan speed and the longest working ranges (depth of field). Enhanced mode will give you the highest possible scan speed but
slightly less range than Normal mode. Enhanced mode is best used when you require a very fast scan speed and don’t require
a long working range.
When using Preferred Symbology (page 3-14), a lower priority symbol must be centered on the aiming pattern to be read in
Streaming Presentation Mode.

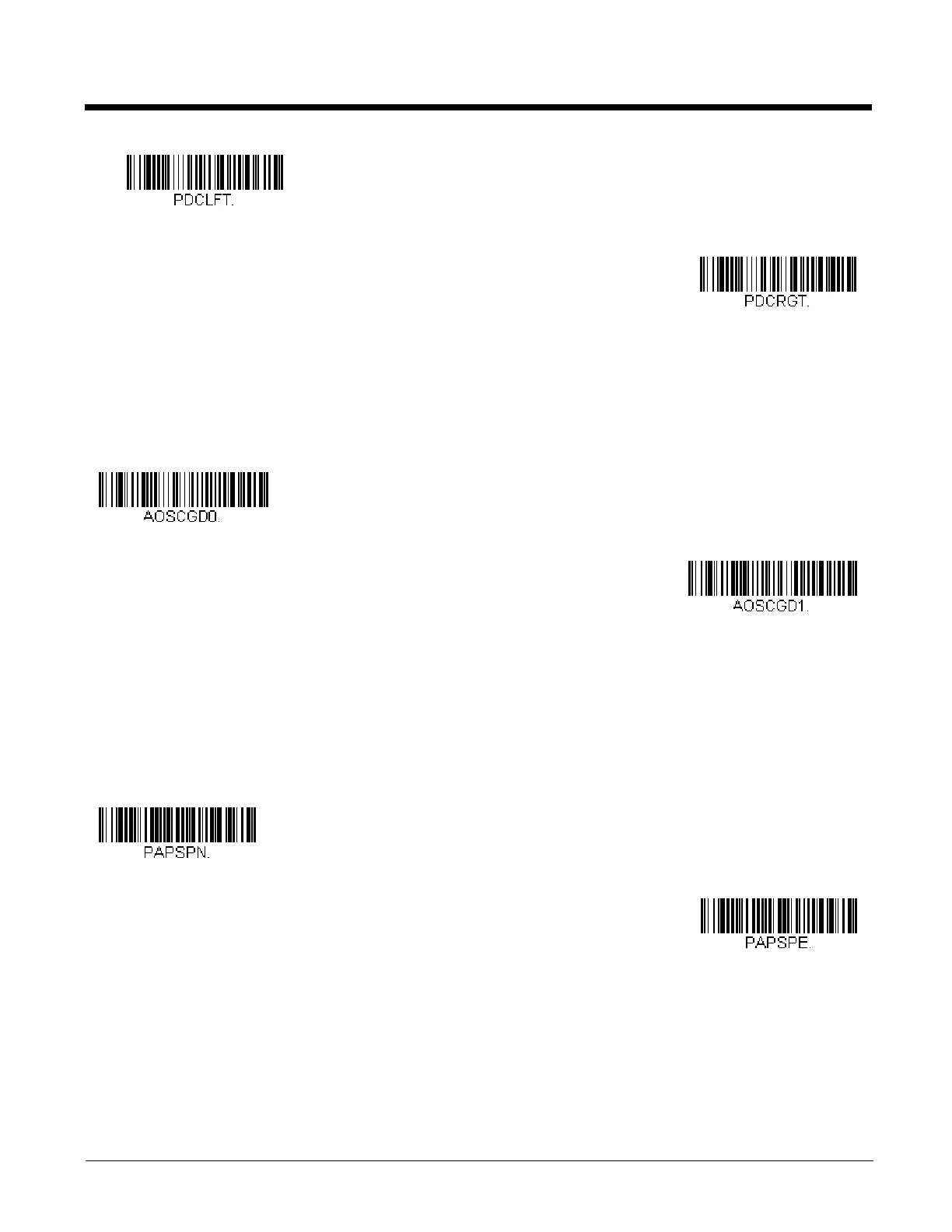

Left of
Presentation Centering
Window
Right of Presentation Centering
Window
* CodeGate Off
Out-of-Stand
CodeGate On
Out-of-Stand
Streaming Presentation Mode
- Normal
Streaming Presentation Mode
- Enhanced

Honeywell Genesis 7580G Specifications

General

Type	Fixed bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-70 - 70 °
Motion tolerance (cm/s)	200
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Product color	Black, Silver
Input voltage	5.5 V
Power consumption (standby)	0.5 W
Power consumption (typical)	2 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	80 mm
Width	83 mm
Height	150 mm
Weight	340 g
