Honeywell Genesis 7580G User Manual

6 - 5

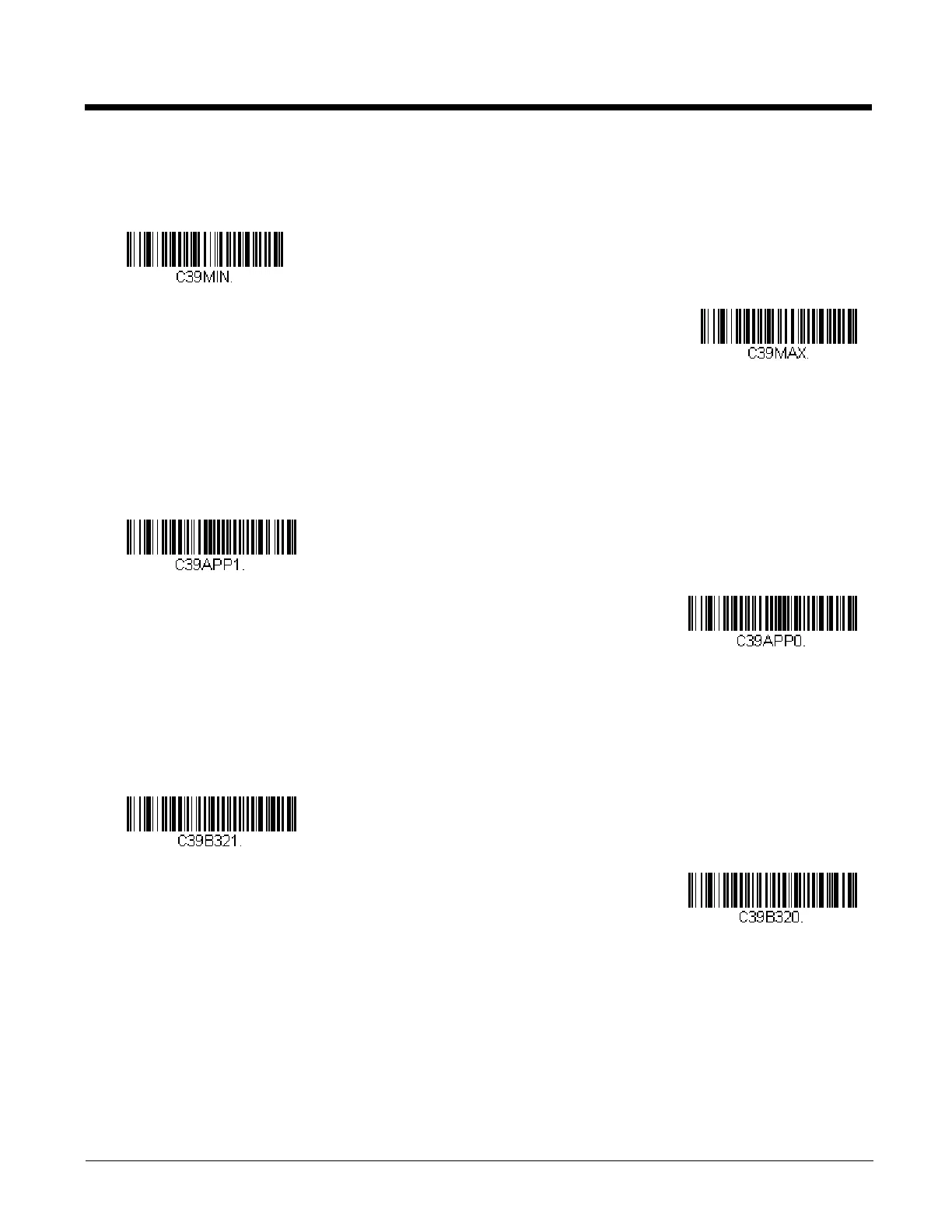

Code 39 Message Length
Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional
information. Minimum and Maximum lengths = 0-48. Minimum Default = 0, Maximum Default = 48.
Code 39 Append
This function allows the scanner to append the data from several Code 39 bar codes together before transmitting them to
the host computer. When the scanner encounters a Code 39 bar code with the append trigger character(s), it buffers Code
39 bar codes until it reads a Code 39 bar code that does not have the append trigger. The data is then transmitted in the
order in which the bar codes were read (FIFO). Default = Off.
Code 32 Pharmaceutical (PARAF)
Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian pharmacies. This symbology is also known as
PAR AF.
Note: Trioptic Code (page 6-32) must be turned off while scanning Code 32 Pharmaceutical codes.
Minimum Message Length
Maximum Message Length
On
* Off
On
* Off

Honeywell Genesis 7580G Specifications

General

Type	Fixed bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-70 - 70 °
Motion tolerance (cm/s)	200
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Product color	Black, Silver
Input voltage	5.5 V
Power consumption (standby)	0.5 W
Power consumption (typical)	2 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	80 mm
Width	83 mm
Height	150 mm
Weight	340 g
